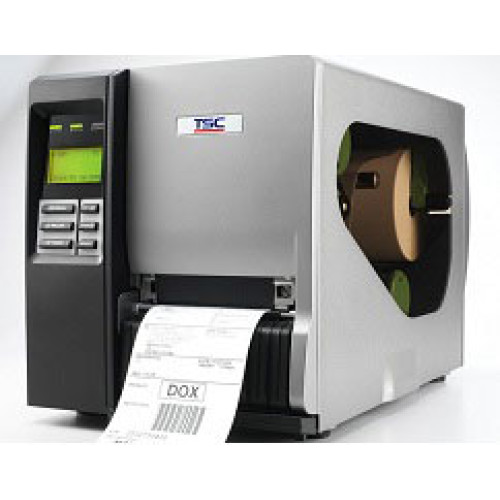

TSC TTP-344M Plus Barcode Label Printer
TSC Printers

TSC TTP-344M Plus Barcode Label Printer
Part #: 99-047A003-00LF | SKU: TSC207834

Offering 300 dpi resolution, the TSC TTP-344M Plus die-cast aluminum barcode printer is designed to meet the most demanding bar-coding and identification needs at an affordable price. The TTP-344M Plus features a user-friendly 6-button display and side-load design; standard serial, parallel and USB connectivity; and optional Ethernet networking for simple integration with other devices. The TTP-344M Plus operates at speeds up to 6 ips, prints up to 4 inches wide and accommodates a 600-meter-long ribbon, while offering 4 MB of Flash memory and 8 MB of SDRAM.

TSC TTP-344M Plus Barcode Label Printer

Part Details: TTP-344M Plus, Printer, Thermal transfer, 300 DPI, 6 ips, Metal Industrial, 8 inch outer diameter Medaia, USB, Serial, Parallel, Includes US Power Cable, USB Cable and Bar Tender CD.
Need a different version of the TSC TTP-344M Plus Barcode Label Printer? View all 2 configurations

Additional Information

Included Features No
Interface Options Parallel, USB
Label Core No
Manufacturer TSC
Max Label Width 4.6
Max Roll Outer Diameter No
Maximum Print Width 4.09
Model Name TTP-344M Plus
Print Method No
Print Resolution No
Print Speed 6
Printer Mobility No
Printer Type Industrial
Product Condition No
Ribbon Core 1 inch
TSC TTP-344M Plus Specs TSC TTP-344M Plus Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • EAN With 2 or 5 Digit Extension
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code

General Information

  • Product Type: Thermal Transfer Printer
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TTP-344M Plus
  • Product Name: TTP-344M Plus Thermal Label Printer

Physical Characteristics

  • Height: 12.1"
  • Width: 10.6"
  • Depth: 19.9"
  • Form Factor: Desktop
  • Weight (Approximate): 33.07 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Maximum Label Length: 40"
  • Media Type:
    • Continuous Form
    • Die-cut Label
    • Fanfold
    • Tag
    • Notched
    • Black Mark
    • Perforated Paper
    • Label
  • Media Thickness: 11.81 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Out Of Ribbon Sensor
    • Cover Open Sensor
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.20"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Platform Supported: PC
  • Certifications & Standards:
    • FCC Class A
    • CE Class A
    • C-Tick Class
    • UL
    • CUL
    • TUV/Safety
    • CCC
    • CB

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Warranty

  • Limited Warranty: 2 Year

Display & Graphics

  • Display Screen Type: LCD
Extended Details

Recommended Labels for Model: TSC TTP-344M Plus Barcode Label Printer

  • TSC TX200 Barcode Label
    Part #: TSCDT-400400-FF-02 | SKU: TSC386492

    Label, Direct Thermal, 4.0" x 4.0", Fanfold, 3000 labels/stack, 2 stacks/ctn
    Price: $151.52

  • TSC TX200 Barcode Label
    Part #: TSCDT-400300-FF-02 | SKU: TSC386491

    Label, Direct Thermal, 4.0" x 3.0", Fanfold, 4000 labels/stack, 2 stacks/ctn
    Price: $116.96

  • TSC TX200 Barcode Label
    Part #: TSCDT-400200-FF-02 | SKU: TSC386490

    Label, Direct Thermal, 4.0" x 2.0", Fanfold, 6000 labels/stack, 2 stacks/ctn
    Price: $128.40

  • TSC TX200 Barcode Label
    Part #: TSCDT-400650-FF-01 | SKU: TSC386498

    Label, Direct thermal, 4.0" x 6.5", Fanfold, 2000 labels/stack, 2 stacks/ctn

  • TSC TX200 Barcode Label
    Part #: TSCDT-400650-8-01 | SKU: TSC386497

    Label, Direct thermal, 4.0" x 6.5", 3.0" core, 900 labels/roll, 4 rolls/ctn
View All Options

Recommended Printheads for Model: TSC TTP-344M Plus Barcode Label Printer

View All Options
