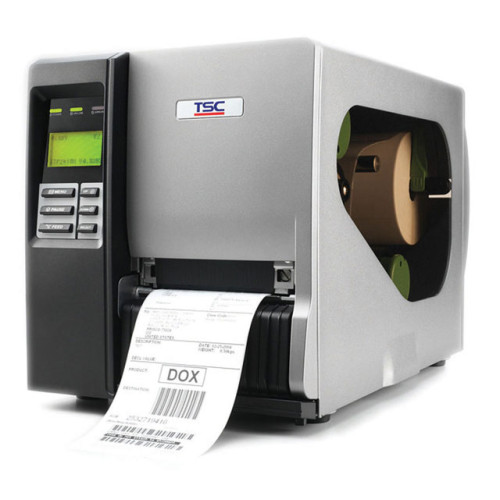

TSC TTP-246M Plus Barcode Label Printer
TSC Printers

TSC TTP-246M Plus Barcode Label Printer
Part #: 99-047A002-00LF | SKU: TSC207835

The TSC TTP-246M Plus die-cast barcode printer is designed to meet the most demanding identification and labeling requirements at an affordable price. It features a user-friendly 6-button display and side-load design, standard serial, parallel and USB connectivity and optional Ethernet networking for simple integration with other devices. Optional 300 dpi capability is available either from the factory or as a field upgrade. An upgrade kit, which includes a printhead with firmware, takes 30 minutes to install. The TTP-246M Plus is packaged with TSC's powerful TSPL-EZ firmware, which supports three printer languages: TSC printer language, TPLE (Translation Printer Language Eltron), and TPLZ (Translation Printer Language Zebra). TSPL-EZ features internal scalable True Type fonts, along with a BASIC interpreter with file manager for creating powerful printer-interface applications with multiple host types.

TSC TTP-246M Plus Barcode Label Printer

Part Details: TTP-246M Plus, Printer, 203 dpi, Thermal transfer UP TO 8 ips, 8MB DRAM, 4MB Flash, USB, Serial, Parallel TSPL-EZD Language
Need a different version of the TSC TTP-246M Plus Barcode Label Printer? View all 2 configurations

Additional Information

Included Features No
Interface Options Parallel, USB
Label Core No
Manufacturer TSC
Max Label Width 4.6
Max Roll Outer Diameter No
Maximum Print Width 4.09
Model Name TTP-246M Plus
Print Method No
Print Resolution No
Print Speed 8
Printer Mobility No
Printer Type Industrial
Product Condition No
Ribbon Core 1 inch
TSC TTP-246M Plus Specs TSC TTP-246M Plus Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC -2 Digits Add-on
    • UPC-5 Digits Add-on
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • GS1 DataBar
    • LOGMARS
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TTP-246M Pro
  • Product Name: TTP-246M Pro Label Printer

Physical Characteristics

  • Height: 12.1"
  • Width: 10.6"
  • Depth: 19.9"
  • Form Factor: Desktop
  • Weight (Approximate): 33.07 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Platform Supported: PC
  • Package Contents:
    • TTP-246M Pro Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • Power Cord
    • TTP-246M Pro Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • Power Cord
  • Certifications & Standards:
    • FCC Class A
    • CE Class A
    • C-Tick Class A
    • UL
    • CUL
    • TÜV/Safety
    • CCC
    • CB

Media Types & Handling

  • Maximum Label Width: 4.60"
  • Maximum Label Length: 90"
  • Media Type:
    • Label
    • Ticket
    • Continuous Label
    • Die-cut Label
    • Tag
    • Notched
    • Black Mark
    • Perforated Label
  • Media Thickness: 11.81 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Cover Open Sensor
    • Out Of Ribbon Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.20"

Memory

  • Standard Memory: 8 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Warranty

  • Limited Warranty: 2 Year

Display & Graphics

  • Display Screen Type: LCD

Fonts & Emulation

  • Language Emulation: TSPL-EZ
Extended Details

Recommended Accessories for Model: TSC TTP-246M Plus Barcode Label Printer

  • TSC TTP-246M Plus Accessory
    Part #: 30-0220015-00LF | SKU: TSC102385

    TTP-246M Plus Accessories, PRESSURE TRANSFER KNOB FOR THE TTP-246M PLUS

  • TSC TTP-246M Plus Accessory
    Part #: 30-0220030-10LF | SKU: TSC102386

    TTP-246M Plus Accessories, PRINTHEAD PRESSURE ADJUSTMENT MECHANISM FRAME FOR THE TTP-246M PLUS

  • TSC TTP-246M Plus Accessory
    Part #: 30-0240032-00LF | SKU: TSC102387

    TTP-246M Plus Accessories, PRINTHEAD RELEASE LEVER LEFT SIDE, TTP-246M PLUS

  • TSC TTP-246M Plus Accessory
    Part #: 98-0240013-11LF | SKU: TSC102388

    TTP-246M Plus Accessories, MAIN BOARD FOR TTP-246M PLUS/344M PLUS

  • TSC TTP-246M Plus Accessory
    Part #: 98-0240029-00LF | SKU: TSC102389

    TTP-246M Plus Accessories, MEDIA SENSOR ASSEMBLY TTP-246M+
