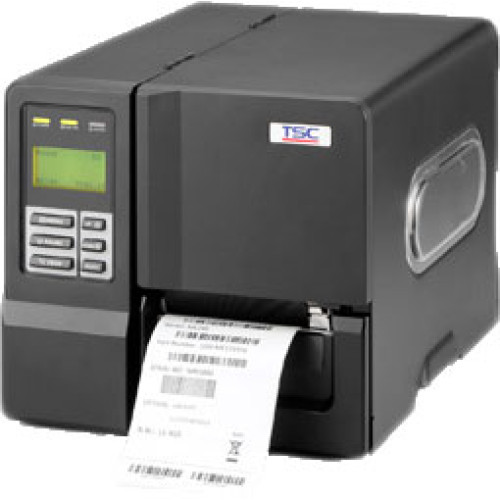

TSC ME-240 Barcode Label Printer
TSC Printers

TSC ME-240 Barcode Label Printer
Part #: 99-042A001-44LF | SKU: TSC146087

The TSC ME-240 is created to endure the hardest production environments. The ME-240 features a heavy-duty print engine created of die-cast aluminum, which is housed in an all-metal frame. Due to it's low-profile little-footprint blueprint, the ME-240 fits effortlessly in tight work spaces that are frequently too cramped for bigger manufacturing printers. Standard features incorporate Ethernet, Universal Serial Bus, Universal Serial Bus-A Hosting, true time clock and serial association, a 6-button 3-Flat Panel display, 8MB of DRAM memory, 4 MB of Flash memory and an SD card slot for cheaply adding up to 4 GB of Flash memory. The ME-240 prints up to 4 inches wide, with 203-dpi (Eight dots/mm) resolution, at up to 6 inches per second. The print mechanism supports more than 400-meter thermal-transfer ribbons and 8-inch OD label rolls. The ME-240's quick print speed and considerable ribbon and media capacities make it best for a lot of applications, incorporating producing, transportation, warehousing and medical care.

TSC ME-240 Barcode Label Printer

Part Details: Industrial Thermal transfer Printer, 203 dpi, Interface Options: USB, Serial, Ethernet, Maximum Print width 4.09, LCD Screen, SD Card Slot.
Need a different version of the TSC ME-240 Barcode Label Printer? View all 4 configurations

Additional Information

Filter No
Included Features LCD Display
Interface Options Ethernet, USB
Label Core No
Labels Per Day No
Manufacturer TSC
Max Label Width 4
Max Roll Outer Diameter 8
Maximum Print Width 4.09
Model Name ME-240
Print Method No
Print Resolution No
Print Speed 6
Printer Mobility No
Printer Type Industrial
Product Condition No
Ribbon Core 1 inch
TSC ME-240 Specs TSC ME-240 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC-5 Digits Add-on
    • UPC -2 Digits Add-on
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • GS1 DataBar
    • Code 11
    • LOGMARS
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code

General Information

  • Product Type: Thermal Transfer Printer
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: ME240
  • Product Name: ME240 Label Printer Advanced

Physical Characteristics

  • Height: 10.2"
  • Width: 11.3"
  • Depth: 17.1"
  • Form Factor: Desktop
  • Weight (Approximate): 24.25 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Platform Supported: PC
  • Package Contents:
    • ME240 Label Printer Advanced
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • Power Cord
    • Ribbon Paper Core
    • 2 X 3" Media Core Adapter
    • ME240 Label Printer Advanced
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • Power Cord
    • Ribbon Paper Core
    • 2 X 3" Media Core Adapter
  • Certifications & Standards:
    • FCC Class A
    • CE Class A
    • C-Tick Class A
    • UL
    • CUL
    • TÜV/Safety
    • CCC

Media Types & Handling

  • Maximum Label Width: 4.60"
  • Maximum Label Length: 90"
  • Media Type:
    • Label
    • Large Shipping Label
    • Wristband
    • Continuous Label
    • Die-cut Label
    • Black Mark
    • Fanfold
    • Notched
  • Media Thickness: 11 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Out Of Ribbon Sensor
    • Cover Open Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 8 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Warranty

  • Limited Warranty: 2 Year

Display & Graphics

  • Display Screen Type: LCD

Fonts & Emulation

  • Language Emulation: TSPL-EZ
Extended Details
