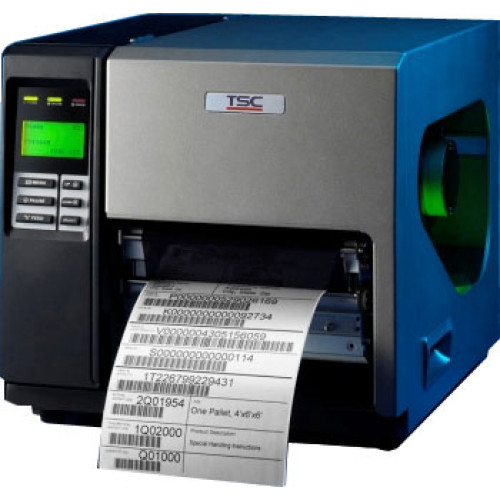

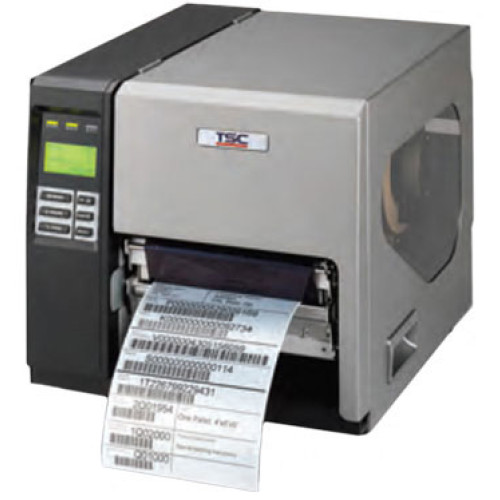

TSC TTP-366M Barcode Label Printer TSC TTP-366M Barcode Label Printer
TSC Printers

TSC TTP-366M Barcode Label Printer
Part #: 99-041A011-00LF | SKU: TSC177919

The TSC lineup soars to new levels with the introduction of their 6 industrial printer, the TTP-366M. This die-cast aluminum label printer is designed for your most demanding barcode and identification needs, without breaking your budget. The TTP-366M boasts a print speed up to 6 inches per second with a 300 dpi resolution (Optional 203 dpi). The TTP-366M is ideal for your mission critical printing applications, either on-demand or in batches. The TTP-366M includes USB 2.0, Parallel, Serial and internal Ethernet, PS/2 keyboard interface, all standard. The electronics include 32MB DRAM, 8 MB FLASH memory and a slot for an SD card so users can inexpensively add up to 4 GB of additional FLASH storage.

TSC TTP-366M Barcode Label Printer

Part Details: TTP-366M, INDUSTRIAL WIDE WEB, 6.6, 300 dpi, 8 ips, 32MD DRAM, 8MB FLASH, LCD DISPLAY, USB, SERIAL, PARALLEL, 450 METER RIBBON, 8.3 outer diameter MEDIA SUPPLY
Need a different version of the TSC TTP-366M Barcode Label Printer? View all 2 configurations

Additional Information

Filter No
Included Features No
Interface Options Parallel, USB
Label Core No
Manufacturer TSC
Max Label Width 6.8
Max Roll Outer Diameter No
Maximum Print Width 6.6
Model Name TTP-366M
Print Method No
Print Resolution No
Print Speed 6
Printer Mobility No
Printer Type Industrial
Product Condition No
Ribbon Core 1 inch
TSC TTP-366M Specs TSC TTP-366M Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 6.61"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC -2 Digits Add-on
    • UPC-5 Digits Add-on
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • GS1 DataBar
    • Code 11
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code
    • EAN and UPC 2(5) Digits Add-On

General Information

  • Product Type: Thermal Transfer Printer
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TTP-366M
  • Product Name: TTP-366M Label Printer

Physical Characteristics

  • Height: 13.3"
  • Width: 14"
  • Depth: 20.1"
  • Form Factor: Desktop
  • Weight (Approximate): 50.71 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Package Contents:
    • TTP-366M Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • Power Cord
    • Ribbon Paper Core
    • TTP-366M Label Printer
    • Windows Labeling Software CD Disk
    • Quick Start Guide
    • USB Cable
    • Power Cord
    • Ribbon Paper Core
  • Certifications & Standards:
    • FCC Class A
    • CE Class A
    • CCC

Media Types & Handling

  • Maximum Label Width: 6.80"
  • Maximum Label Length: 21.67 ft
  • Media Type:
    • Label
    • Shipping Label
    • Continuous Form
    • Die-cut Label
    • Fanfold
    • Tag
    • Notched
    • Black Mark
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Out Of Ribbon Sensor
    • Cover Open Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.20"

Memory

  • Standard Memory: 32 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Warranty

  • Limited Warranty: 2 Year

Display & Graphics

  • Display Screen Type: LCD

Fonts & Emulation

  • Language Emulation: TSPL-EZ
Extended Details

Recommended Labels for Model: TSC TTP-366M Barcode Label Printer

  • TSC TX200 Barcode Label
    Part #: TSCDT-400400-FF-02 | SKU: TSC386492

    Label, Direct Thermal, 4.0" x 4.0", Fanfold, 3000 labels/stack, 2 stacks/ctn
    Price: $151.52

  • TSC TX200 Barcode Label
    Part #: TSCDT-400300-FF-02 | SKU: TSC386491

    Label, Direct Thermal, 4.0" x 3.0", Fanfold, 4000 labels/stack, 2 stacks/ctn
    Price: $116.96

  • TSC TX200 Barcode Label
    Part #: TSCDT-400200-FF-02 | SKU: TSC386490

    Label, Direct Thermal, 4.0" x 2.0", Fanfold, 6000 labels/stack, 2 stacks/ctn
    Price: $128.40

  • TSC TX200 Barcode Label
    Part #: TSCDT-400650-FF-01 | SKU: TSC386498

    Label, Direct thermal, 4.0" x 6.5", Fanfold, 2000 labels/stack, 2 stacks/ctn

  • TSC TX200 Barcode Label
    Part #: TSCDT-400650-8-01 | SKU: TSC386497

    Label, Direct thermal, 4.0" x 6.5", 3.0" core, 900 labels/roll, 4 rolls/ctn
View All Options

Recommended Printheads for Model: TSC TTP-366M Barcode Label Printer

  • TSC TTP-366M Printhead
    Part #: 98-0410008-01LF | SKU: TSC182977

    TTP-366M, Replacement 300 dpi printhead for TTP366M
    MSRP: $825.00 Price: $775.09
View All Options
