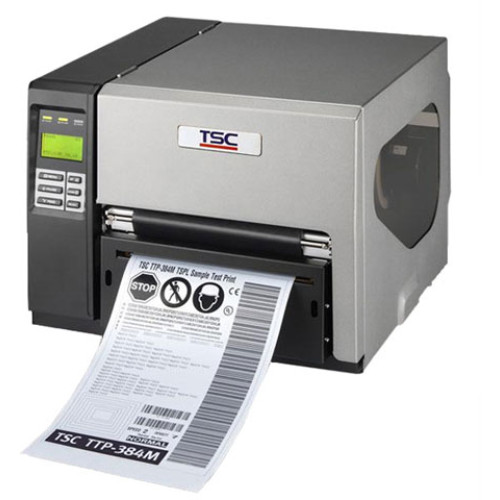

TSC TTP-384M Barcode Label Printer
TSC Printers

TSC TTP-384M Barcode Label Printer
Part #: 99-035A001-11LF | SKU: TSC207833

The affordable and easy-to-use TSC TTP-384M wide-format thermal transfer printer is ideally suited for compliance labeling, brand marketing, inventory control, drum labeling, warning signs and a host of other signage solutions. The TTP-384M can accommodate label widths up to 9.5 inches, with a maximum print width up to 8.64 inches at 300 dpi resolution. It also is designed to print wide-lateral bar codes without the need for image rotation. The TTP-384M features a die-cast aluminum chassis and is packed with standard features, including a large LCD display, 8 MB Flash memory, 32 MB SDRAM, an SD card slot for adding up to 4 GB of additional memory storage, a built-in internal Ethernet 10/100 print server, and USB 2.0, Centronics, RS-232C and PS/2 keyboard connectivity.

TSC TTP-384M Barcode Label Printer

Part Details: TTP-384M, Printer, Die Cast Aluminum Industrial Wide Web 8 inch Printer, 300 dpi, UPT to 4 IPS, 32MD Dram with Cutter Installed.
Need a different version of the TSC TTP-384M Barcode Label Printer? View all 2 configurations

Additional Information

Included Features Cutter
Interface Options Ethernet, Parallel, USB
Label Core No
Manufacturer TSC
Max Label Width 9.5
Max Roll Outer Diameter No
Maximum Print Width No
Model Name TTP-384M
Print Method No
Print Resolution No
Print Speed 4
Printer Mobility No
Printer Type Industrial
Product Condition No
Ribbon Core 1 inch
TSC TTP-384M Specs TSC TTP-384M Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 8.64"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Cutter
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128
    • UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC 2 and 5 Digit Addendums
    • MSI
    • Plessey
    • POSTNET
    • RSS Stacked
    • Code 11
    • GS1 DataBar
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: TTP
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TTP-384M
  • Product Name: TTP-384M Label Printer

Physical Characteristics

  • Height: 13.2"
  • Width: 17.3"
  • Depth: 19.8"
  • Form Factor: Desktop
  • Weight (Approximate): 51.15 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Platform Supported: PC
  • Package Contents:
    • TTP-384M Label Printer
    • Software and Driver Cd
    • USB Port Cable
    • Ribbon Take-up Paper Core
    • Power Cord
    • TTP-384M Label Printer
    • Software and Driver Cd
    • USB Port Cable
    • Ribbon Take-up Paper Core
    • Power Cord
  • Certifications & Standards:
    • FCC Class A
    • CE Class A
    • UL
    • CUL
    • TUV/Safety

Media Types & Handling

  • Maximum Label Width: 9.50"
  • Maximum Label Length: 50"
  • Media Type:
    • Continuous Label
    • Die-cut Label
    • Fanfold
    • Tag
    • Notched
    • Perforated Label
    • Black Mark
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Cover Open Sensor
    • Out Of Ribbon Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8.20"

Memory

  • Standard Memory: 32 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 2 Year

Fonts & Emulation

  • Language Emulation: TSPL-EZ
Extended Details

Recommended Accessories for Model: TSC TTP-384M Barcode Label Printer

  • TSC TTP-384M Accessory
    Part #: 98-0350062-10LF | SKU: TSC705600

    Printer Spare Parts - TSC - Heavy Duty Cutter (Dealer Option) - Compatible with TTP-286MT - TTP-384MT
    Call For Price

  • TSC TTP-384M Accessory
    Part #: 98-0350061-10LF | SKU: TSC592235

    Printer Spare Parts - TSC - Regular Cutter Module Cutter - Compatible with TTP-268MT - TTP-384MT Series
    MSRP: $827.00 Price: $597.66

  • TSC TTP-384M Accessory
    Part #: 98-0350036-00LF | SKU: TSC196577

    TTP-384M Accessories, TTP-384M Cutter Module
View All Options

Recommended Printheads for Model: TSC TTP-384M Barcode Label Printer

  • TSC TTP-384M Printhead
    Part #: 98-0350032-00LF | SKU: TSC182978

    TTP-384M, Replacement 300 dpi printhead for TTP-384M
    MSRP: $1,103.00 Price: $1,036.26
View All Options

Recommended Warranties for Model: TSC TTP-384M Barcode Label Printer

  • BCI True Support Service Contract
    Part #: TRUESUPPORT-BAS-PRINT-1YR | SKU: 665134

    TrueSupport Basic Plan for Printers – 1 Year - Includes: Hardware Help Desk Support, RMA Triage, OEM Service contract mgmt.
    Price: $66.00

  • TSC TTP-384M Service Contract
    Part #: I8-EW3-00 | SKU: TSC336036

    WARRANTY, WIDE WEB INDUSTRIAL 8", TTP-384M, 3 YEAR WARRANTY
