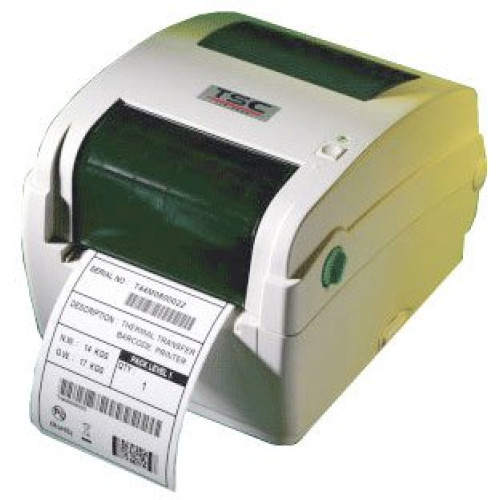

TSC TTP-343C Barcode Label Printer
TSC Printers

TSC TTP-343C Barcode Label Printer
Part #: 99-033A002-00LF | SKU: TSC102374

The TSC TTP-343C series of desktop thermal bar code printer, with its new, smaller footprint, offers the high performance that customers have come to expect from TSC. Durable, reliable and fast, the TTP-343C generates 4-inch-wide labels, tags or receipts at up to 6 ips, offering a price-performance combination that is unmatched by other desktop thermal bar code printers on the market. The TTP-343C incorporates a 200 MHz 32-bit processor that offers fast first label out throughput, with no between-label delays, even when using its internally scalable True Type fonts. Using its standard internal Ethernet port, the TTP-343C can be quickly integrated with any network. The TTP-343C’s easy-to-use design speeds up ribbon and media loading. And with the smallest footprint ever for a TSC 4-inch desktop printer, the TTP-343C series easily fits into cramped workspaces. The TTP-343C offers 300 dpi resolution and is ideal for 2-D bar codes, fine text and complex graphics.

TSC TTP-343C Barcode Label Printer

Part Details: Desktop Thermal transfer Printer, 300 dpi, Interface Options: USB, Serial, Ethernet, Parallel, Maximum Print width 4.17, SD Card Slot.
Need a different version of the TSC TTP-343C Barcode Label Printer? View all 13 configurations

Additional Information

Filter No
Included Features No
Interface Options Ethernet, Parallel, USB
Label Core No
Manufacturer TSC
Max Label Width 4.4
Max Roll Outer Diameter 5
Maximum Print Width No
Model Name TTP-343C
Print Method No
Print Resolution No
Print Speed 4
Printer Mobility No
Printer Type Desktop
Product Condition No
Ribbon Core 0.5 inch
TSC TTP-343C Specs TSC TTP-343C Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.17"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128
    • UCC
    • Code 128-A
    • Code 128-C
    • Code 128-B
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC -2 Digits Add-on
    • UPC-5 Digits Add-on
    • MSI
    • Plessey
    • POSTNET
    • GS1 DataBar
    • LOGMARS
    • Code 11
    • PDF-417
    • Maxi Code
    • Aztec Code
    • QR Code
    • Data Matrix

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: TTP-245C
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TTP-343C
  • Product Name: TTP-343C Label Printer

Physical Characteristics

  • Height: 6.8"
  • Width: 8"
  • Depth: 10.2"
  • Form Factor: Desktop
  • Weight (Approximate): 10.58 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • TTP-343C Label Printer
    • Software and Documentation Cd
    • Quick Start Guide
    • USB Cable
    • External Universal Switching Power Supply
    • Power Cord
    • TTP-343C Label Printer
    • Software and Documentation Cd
    • Quick Start Guide
    • USB Cable
    • External Universal Switching Power Supply
    • Power Cord
  • Certifications & Standards:
    • FCC Class B
    • CE Class B
    • C-Tick Class B
    • UL
    • CUL
    • TUV/Safety
    • CCC

Media Types & Handling

  • Maximum Label Width: 4.40"
  • Media Type:
    • Continuous Label
    • Die-cut Label
    • Fanfold
    • Tag
    • Roll Paper
  • Media Thickness: 7.48 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Cover Open Sensor
    • Out Of Ribbon Sensor
  • Label Core Size: 0.50"
  • Maximum Roll Diameter: 1.57"

Memory

  • Standard Memory: 8 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital
  • Memory Technology: DRAM
  • Flash Memory: 4 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Cutter

  • Cutting Method: Manual

Warranty

  • Limited Warranty: 2 Year

Fonts & Emulation

  • Language Emulation: TSPL-EZ
Extended Details
