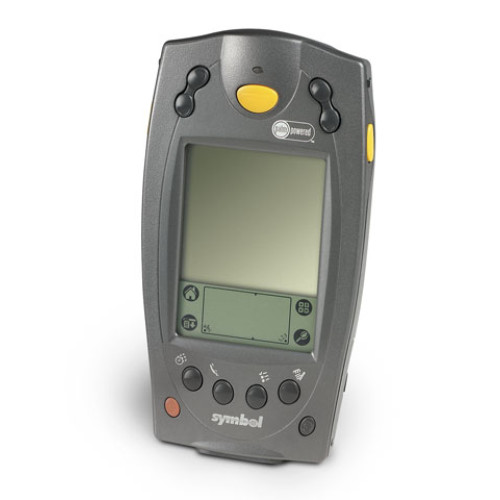

Symbol SPT 1846 Mobile Computer
Part #: SPT1846-TKG804US | SKU: 5455

The SPT1800 replaces the SPT1700. Twice the processor speed 4-8 8-16 memory configurations Improved display Backup battery Voice over GSM worldwide Non-incendive (non-explosive) - US Class 1 Div 2 ABCD.

Symbol SPT 1846 Mobile Computer

Part Details: Pocket Computer (T2, 8MB RAM, 4MB Flash, Pico Scanner, Image Pro Standard Edition, Palm Operating System Version 4.1, 1550 mAh Battery and Improved Backlight Display)

Need a different version of the Symbol SPT 1846 Mobile Computer? View all 1 configurations

Additional Information

Data Collection Type	Wireless
Display Resolution	No
Manufacturer	No
Model Name	SPT 1846
Operating System	Palm
Product Condition	No
RAM Memory	No
Scanner Type	Laser
Style	No

SPT 1846 Specs (pdf)

Technical Information

Operating System: Palm OS 4.x
Processor: DragonBall VZ 33MHz
Data Collection Type: Wireless
Symbologies Supported:
- Bookland EAN
- Codabar
- Code 128
- Code 39
- Code 93
- Coupon Code
- Discrete 2 of 5
- EAN-13
- EAN-8
- Interleaved 2 of 5
- ISBT 128
- MSI/PLESSEY
- Trioptic Code 39
- UCC/EAN 128
- UPC/EAN Supplementals
- UPC-A
- UPC-E
- UPC EI

General Information

Manufacturer: Symbol
Product Name: SPT 1846 Pocketable Computer

Physical Characteristics

Display: Grayscale - LCD
Display Resolution: 160 x 160
Keyboard: None
Battery Capacity: 1550 mAh
Battery Type: Lithium Ion
Dimensions: 1" (25mm) x 3.625" (92mm) x 7" (178mm)
Weight: 12.2 oz - including battery

Agency Approvals

Agency Approvals:
- Certified to UL 1950
- CSA C22.2 No. 950
- EN60950:1992/IEC950
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA
- CDRH Class II
- IEC Class II
- Certified to UL 913 and CAN/CSA C22.2 no. 157 for use in Class I, Division II, Groups A, B,C,D

Environmental Conditions

Environmental Sealing: IP54
Temperature:
- -20Â°C (-4Â°F) to 50Â°C (122Â°F) Operating
- -25Â°C (-13Â°F) to 50Â°C (122Â°F) Storage
Humidity: 5 to 90% Non-condensing
Electrostatic Discharge (ESD):
- 8kVdc Air Discharge
- 4kVdc Contact Discharge
Drop Spec: 4' To Concrete

Wireless Data Communications

Network Connectivity:
- WLAN 802.11b
- WPAN IrDA
Maximum RF Data Rate Supported: 11 Mbps
Output Power: 100mW
Antenna Connectors: Internal
Frequency Band/Bandwidth: 2.4GHz to 2.5GHz

Memory

RAM Memory: 8MB
Flash Memory: 4MB

Warranty

Manufacturer Warranty: 1 Year(s)
