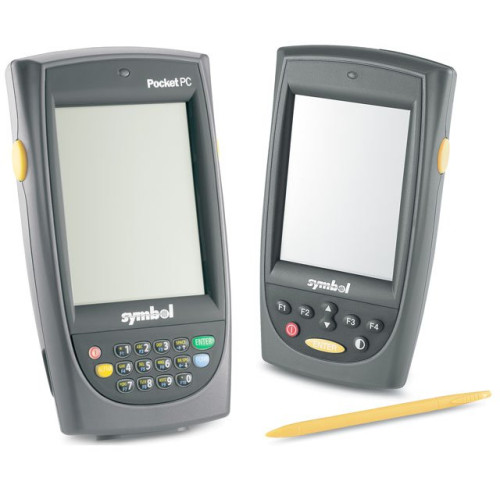

Symbol PPT 8800 Mobile Computer
Part #: PPT8800-R3BZ00LCB | SKU: 23783

The PPT 8800 with Windows Mobile 2003 software for Pocket PCs from Symbol Technologies delivers real-time information right into the hands of your mobile workforce with superior data collection, wireless communications and processing power plus the new Microsoft operating system.----Its consumer-grade PDA styling, compact size and versatility makes the PPT 8800 with Windows Mobile 2003 software for Pocket PCs the ideal mobile computer for a variety of applications from field sales, service and delivery to public safety and more.

Symbol PPT 8800 Mobile Computer

Part Details: PPT 8800, Batch kit (no radio), large capacity battery.

Need a different version of the Symbol PPT 8800 Mobile Computer? View all 11 configurations

Additional Information

Data Collection Type	Batch
Display Resolution	No
Drop Rating	No
IP Rating	No
Manufacturer	No
Model Name	PPT 8800
Operating System	No
Product Condition	No
RAM Memory	No
Scanner Type	Laser
Style	No

PPT 8800 Specs (pdf)

Technical Information

Operating System: Windows Mobile 2003 for Pocket PC
Processor: Intel XScale 400MHz
Data Collection Type: Batch
Scanner Type: Laser Standard Range - SE 800HP with linear RSS Support
Symbologies Supported:
- Codabar (NW7)
- Code 39
- Code 93
- Code 128
- Discrete 2 of 5
- Interleaved 2 of 5
- UCC/EAN 128
- UPC/EAN/JAN
- RSS Variants

General Information

Manufacturer: Symbol
Product Line: Portable Pen Terminal (PPT)
Product Name: PPT 8800 Portable Pen Terminal

Physical Characteristics

Display: 3.5" Color QVGA - Touch Screen LCD
Display Resolution: 320 x 240
Keyboard: 6 Key Standard Integrated
Battery Capacity: 3400 mAh
Battery Type: Lithium Ion - Included
Dimensions: 1.28" (33mm) x 3.22" (82mm) x 5.75" (146mm)
Weight: 10.4 oz - with Battery

Environmental Conditions

Environmental Sealing: IP54
Temperature:
- 14Â°F (-10Â°C) to 122Â°F (50Â°C) Operating
- -13Â°F (-25Â°C) to 158Â°F (70Â°C) Storage
Humidity: 5 to 95% Non-condensing
Electrostatic Discharge (ESD):
- +/-15kVdc Air Discharge
- +/-8kVdc Direct Discharge
- +/-8kVdc Indirect Discharge
Drop Spec: 4' To Concrete

Memory

RAM Memory: 64MB
Flash Memory: 64MB

Other

Package Contents: PPT 8800 Portable Pen Terminal Battery Hand Strap Stylus Case Quick Reference Guide

Agency Approvals

Agency Approvals: Electrical Safety: Certified to UL1950 CSA C22.2 No. 950 EN60950/IEC950 EMI/RFI: FCC Part 15 Class B ICES-003 Class B European Union EMC Directive Australian SMA Laser Safety: CDRH Class II IEC Class 2

Warranty

Manufacturer Warranty: 1 Year(s) Limited

Extended Details
