Additional Information
| Data Collection Type | Wireless |
|---|---|
| Display Resolution | No |
| Manufacturer | No |

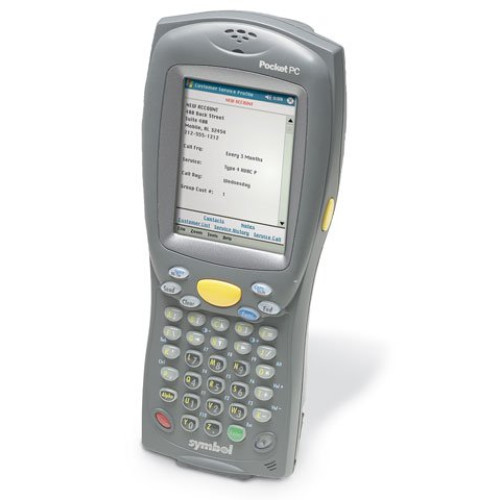

| Model Name | PDT 8146 |
| Operating System | No |
| Product Condition | No |
| RAM Memory | No |
| Scanner Type | Laser |
| Style | No |
PDT 8146 Specs
Technical Information
- Operating System: Windows Mobile 2003
- Processor: Intel XScale 400MHz
- Data Collection Type: Wireless
- Wireless Security:
- WEP 40 bit
- WEP 128 bit
- Keyguard - (SBL TKIP)
- Kerberos
- LEAP
- WPA Home (PSK)
- PEAP
- WPA Enterprise (EAP Authenticated)
- Airbeam Safe (VPN)
- Scanner Type: Laser Standard Range
- Symbologies Supported:
- Code 128
- UPC/EAN/JAN
- UCC/EAN 128
- Code 39
- Code 93
- Discrete 2 of 5
- Interleaved 2 of 5
- Codabar (NW7)
- RSS Variants
General Information
- Manufacturer: Symbol
- Product Line: Portable Data Terminal (PDT)
- Product Name: PDT 8146 Portable Data Terminal
Physical Characteristics
- Display: 3.5" Color QVGA - Touch Screen LCD
- Display Resolution: 320 x 240
- User Accessible Expansion Slot: CF Card Type 2
- Keyboard: 28 Key Alpha Numeric Quick Grip Compatible Integrated
- Battery Capacity: 1950 mAh
- Battery Type: Lithium Ion - Included
- Dimensions: 3.7" (94mm) x 8.5" (216mm) x 1.8" (46mm)
- Weight: 18 oz - with battery
Environmental Conditions
- Environmental Sealing: IP54
- Temperature:
- -10°C (14°F) to 50°C (122°F) Operating
- -25°C (-13°F) to 50°C (122°F) Storage
- Humidity: 5 to 90% Non-condensing
- Electrostatic Discharge (ESD):
- +/-15kVdc Air Discharge
- +/-8kVdc Contact Discharge
- Drop Spec: 4' To Concrete
- Tumble: One-half meter: 250 Cycles (500 drops)
Agency Approvals
- Agency Approvals:
- Certified to UL 1950
- CSA C22.2 No 950
- EN60950/IEC950
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA
Other
- Package Contents:
- PDT 8146 Handheld Terminal
- Battery
- Handstrap
- Stylus
- Quick Reference Guide
Wireless Data Communications
- Network Connectivity: WLAN 802.11b
- Maximum RF Data Rate Supported: 11 Mbps
- Output Power: 100mW
- Antenna Connectors: Internal
- Frequency Band/Bandwidth: 2.4GHz to 2.5GHz
Memory
- RAM Memory: 64MB
- Flash Memory: 64MB
Warranty
- Manufacturer Warranty: 1 Year(s) Limited
