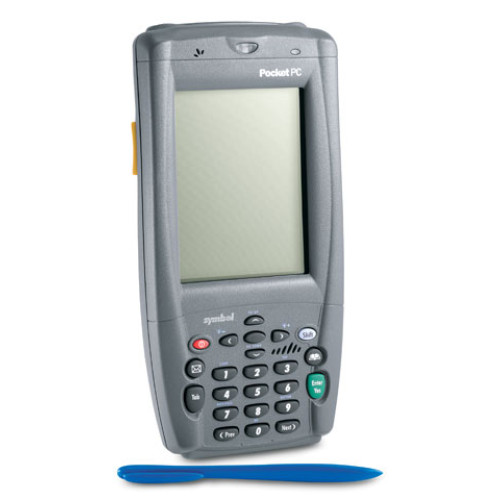

Symbol PDT 8046 Mobile Computer
Part #: PDT8046-TS2800WW | SKU: 7208

The PDT 8046 is the newest Pocket PC from Symbol. A hand held computer second to none, the PDT 8046 combines wireless transmissions with data capture in a convenient, comfortable package. The PDT 8046 features an Intel Xscale processor and a Windows OS. Amazing performance is the result, rendering business application demands fulfilled rapidly.

Symbol PDT 8046 Mobile Computer

Part Details: Wireless Portable Data Terminal (Integrated Spectrum24 WLAN radio: 11 Mbps Direct Sequence, Integrated 1D Proton HP scan engine, Numeric 23 key keypad, 3.9in.1/4 VGA Color, 128MB RAM/64MB ROM, XScale with Pocket PC 2002 Premium Edition and World-wide Radio)

Need a different version of the Symbol PDT 8046 Mobile Computer? View all 1 configurations

Additional Information

Data Collection Type	Wireless
Display Resolution	No
Manufacturer	No
Model Name	PDT 8046
Operating System	No
Product Condition	No
RAM Memory	No
Scanner Type	Laser
Style	No

PDT 8046 Specs (pdf)

Technical Information

Connectivity Technology: Wireless
Electrostatic Discharge (ESD):
- 8 kV DC Air Discharge
- 4 kV DC Contact Discharge
Drop Specification: 60" To Concrete

General Information

Product Type: Handheld Terminal
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: PDT8046
Product Name: PDT8046 Portable Data Terminal

Physical Characteristics

Width: 3.6"
Depth: 1.8"
Length: 7.3"
Weight (Approximate): 1.30 lb

Other

Certifications & Standards:
- Electrical Safety:
- Certified to UL 1950
- CSA C22.2 No 950
- EN60950/IEC950
- EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA
- Laser Safety:
- CDRH Class II
- IEC Class 2
Additional Information:
- Communications:
- IrDA 1.1
- RS-232
- USB V1.1

Network & Communication

Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11b

Processor & Chipset

Processor Manufacturer: Intel
Processor Speed: 400 MHz
Processor Type: XScale

Display & Graphics

Screen Size: 3.9"
Display Color: Color
Screen Resolution: 320 x 240

Battery Information

Battery Capacity: 1130 mAh
Battery Chemistry: Lithium Ion (Li-Ion)

Memory

Flash Memory: 64 MB
Standard Memory: 128 MB

Keyboard/Keypad

Number of Keys: 23

Software

Operating System: Windows Pocket PC 2002 Premium Edition

Extended Details
