Symbol Barcode Scanner and Mobile Handheld Computer

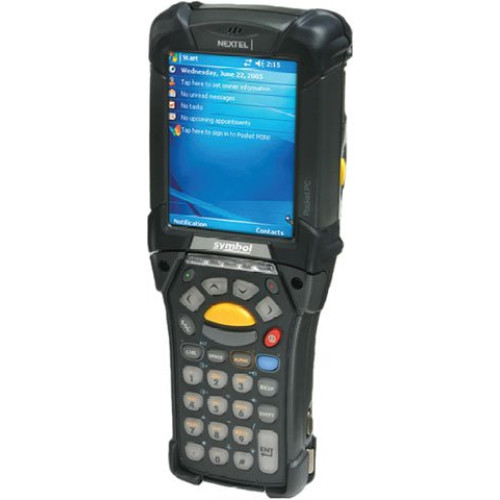

Symbol MC9097-K Mobile Computer
Part #: MC9097-KKTHJAHA6WW | SKU: 21532

The rugged MC9000-K Series from Symbol Technologies, The Enterprise Mobility Company, is an exceptionally reliable mobile computer that delivers real-time visibility into your company's mission-critical information. Three wireless radios offer maximum accessibility to help workers make more informed decisions. The MC9000-K provides multiple benefits: reduce errors, improve productivity and comply with increased safety standards, environmental or homeland security regulatory issues. It's ideal for your field, delivery, home office, operations, warehouse or factory applications.

Symbol MC9097-K Mobile Computer

Part Details: MC9097 Wireless Terminal (Brick, 802.11a/b/g, IDEN, Imager, Color, 64MB/128MB, 28 key Keypad, Windows Mobile 5.0.0 and Bluetooth)

Need a different version of the Symbol MC9097-K Mobile Computer? View all 12 configurations

Additional Information

Data Collection Type	Wireless
Display Resolution	No
Drop Rating	No
IP Rating	No
Manufacturer	No
Model Name	MC9097-K
Network Connectivity	802.11a, 802.11g
Operating System	No
Product Condition	No
RAM Memory	No
Scanner Type	Laser
Style	No

MC9097-K Specs (pdf)

Technical Information

Connectivity Technology: Wireless
Image Sensor: Imager
Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
Drop Specification: 72" To Concrete
Barcode Symbology Supported:
- Codabar
- Code 11
- Code 39
- Code 93
- Code 128
- CompositeAB
- Composite C
- Coupon Code
- DataMatrix
- Discrete 2 of 5
- Dutch Kix
- EAN-8
- EAN-13
- Interleaved 2 of 5
- Macro PDF-417
- Micro PDF-417
- Macro Micro PDF-417
- MaxiCode
- MSI
- PDF 417
- QR Code
- RSS-Expanded
- RSS-Limited
- RSS-14
- TLC39
- Trioptic Code 39
- UPC/EAN Supplementals
- UPC-A
- UPC-E
- U.S. Planet
- U.S. Postnet
- Webcodes
- Australian 4-State
- Canadian 4 State
- Japanese 4-State
- UK 4-State

General Information

Product Type: Handheld Terminal
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC9097-K
Product Name: MC9097-K Mobile Computer

Physical Characteristics

Height: 2.2"
Width: 3.6"
Length: 9"

Other

Package Contents:
- MC9097 Mobile Computer
- Battery
- Hand Strap
- Stylus
- BT Explorer
- Regulatory Guide
- Quick Start G
- MC9097 Mobile Computer
- Battery
- Hand Strap
- Stylus
- BT Explorer
- Regulatory Guide
- Quick Start G
Certifications & Standards:
- Electrical Safety:
- Certified to UL60950
- CSA C22.2 No. 60950
- EN60950/IEC 950
- EMI/RFI:
- North America:
- FCC Part 2 (SAR)
- FCC Part 15 RSS210 Class B
- EN 301 489-1
- EN 301 489-17
- FCC Part 90
- Laser Safety:
- IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
Additional Information:
- WAN Carrier: Nextel
- Voice Communication:
- Voice-over-IP Ready (P2P, PBX, PPT)
- Wi-Fi Certified

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11a/b/g
Wireless Security:
- AES
- LEAP
- PEAP (MS-CHAP v2)
- PEAP-TLS
- TKIP
- TLS
- TTLS (CHAP)
- TTLS (MS-CHAP)
- TTLS (MS-CHAP v2)
- TTLS-MD5
- TTLS-PAP
- WEP 40 bit
- WEP 128 bit

Display & Graphics

Display Screen Type: LCD
Screen Mode: QVGA
Screen Size: 3.8"
Display Color: Color
Screen Resolution: 320 x 240

Memory

Flash Memory: 128 MB
Standard Memory: 64 MB
Memory Card Slot: Yes
Memory Card Supported: MultiMediaCard (MMC)

Processor & Chipset

Processor Manufacturer: Intel
Processor Speed: 624 MHz
Processor Type: XScale

Battery Information

Battery Capacity: 2200 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

Keyboard Type: Numeric
Number of Keys: 28

Touchscreen Information

Touchscreen: Yes

Warranty

Limited Warranty: 1 Year

Software

Operating System: Windows Mobile 5.0 Phone Edition
