Symbol Barcode Scanner and Mobile Handheld Computer

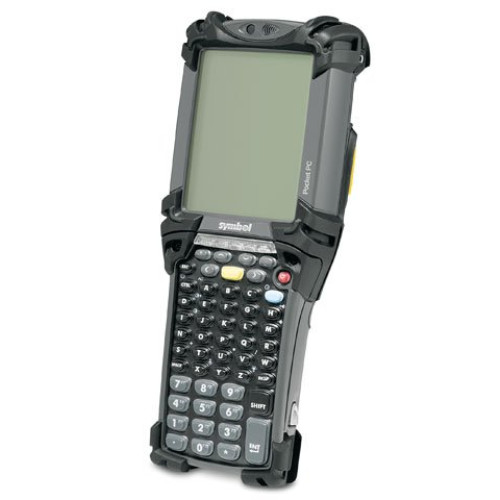

Symbol MC9090-K Mobile Computer
Part #: MC9094-KKCHJAHA6WW | SKU: 253371

The rugged MC9000-K Series from Symbol Technologies, The Enterprise Mobility Company, is an exceptionally reliable mobile computer that delivers real-time visibility into your company's mission-critical information. Three wireless radios offer maximum accessibility to help workers make more informed decisions. The MC9000-K provides multiple benefits: reduce errors, improve productivity and comply with increased safety standards, environmental or homeland security regulatory issues. It's ideal for your field, delivery, home office, operations, warehouse or factory applications.

Symbol MC9090-K Mobile Computer

Part Details: MC9090-K, WLAN 802.11a/b/g, WWAN eGPRS, 1D/2D IMAGER, COLOR TOUCH SCREEN, 64/128MB, 28 key, Windows Mobile 5.0.0 PHONE, AUDIO, VOICE, Bluetooth

Need a different version of the Symbol MC9090-K Mobile Computer? View all 53 configurations

Additional Information

Manufacturer	No
Model Name	MC9090-K
Product Condition	No

MC9090-K Specs (pdf)

Technical Information

Scanner Range: Standard Range
Connectivity Technology: Wireless
Image Sensor: Imager
Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
Drop Specification: 72" To Concrete
Barcode Symbology Supported:
- Codabar
- Code 11
- Code 39
- Code 93
- Code 128
- CompositeAB
- Composite C
- Coupon Code
- DataMatrix
- Discrete 2 of 5
- Dutch Kix
- EAN-8
- EAN-13
- Interleaved 2 of 5
- Macro PDF-417
- Micro PDF417
- Macro Micro PDF-417
- MaxiCode
- MSI
- PDF 417
- QR Code
- RSS-Expanded
- RSS-Limited
- RSS-14
- TLC39
- UPC/EAN Supplementals
- UPC-A
- UPC-E
- U.S. Planet
- U.S. Postnet
- Webcodes
- Australian 4-State
- Canadian 4 State
- Japanese 4-State
- UK 4-State

General Information

Product Type: Handheld Terminal
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC9094-K
Product Name: MC9094-K Mobile Computer

Physical Characteristics

Height: 2.3"
Width: 3.6"
Length: 9.1"

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- MC9094-K Mobile Computer
- Battery
- Hand Strap
- Stylus
- BT Explorer
- Regulatory Guide
- Quick Start G
- MC9094-K Mobile Computer
- Battery
- Hand Strap
- Stylus
- BT Explorer
- Regulatory Guide
- Quick Start G
Certifications & Standards:
- Electrical Safety:
- Certified to UL60950-1
- CSA C22.2 No. 60950-1
- EN60950-1
- IEC 60950-1
- EMI/RFI:
- FCC Part 2 (SAR)
- FCC Part 22
- FCC Part 24
- FCC Part 15
- RSS210
- EN 300 328
- EN 301 489-1
- EN 301 489-7
- EN 301 489-17
Additional Information:
- Communication Option: Audio
- Region: Worldwide
- Voice Communication:
- Voice-over-IP Ready (P2P, PBX, PPT)
- Wi-Fi Certified

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: Internal
Network Band: Quad Band
Wireless LAN Standard: IEEE 802.11a/b/g
Wireless Security:
- AES
- LEAP
- PEAP (MS-CHAP v2)
- PEAP-TLS
- TKIP
- TLS
- TTLS (CHAP)
- TTLS (MS-CHAP)
- TTLS (MS-CHAP v2)
- TTLS-MD5
- TTLS-PAP
- WEP 40 bit
- WEP 128 bit

Memory

Flash Memory: 128 MB
Standard Memory: 64 MB
Memory Card Slot: Yes
Memory Card Supported:
- MultiMediaCard (MMC)
- Secure Digital (SD) Card

Display & Graphics

Display Screen Type: LCD
Screen Mode: QVGA
Screen Size: 3.8"
Display Color: Color
Screen Resolution: 320 x 240

Battery Information

Battery Capacity: 2200 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

Processor Manufacturer: Intel
Processor Speed: 624 MHz
Processor Type: XScale

Keyboard/Keypad

Keyboard Type: Numeric
Number of Keys: 28

Software

Operating System: Windows Mobile 5.0 Premium Phone Edition

Warranty

Limited Warranty: 1 Year

Touchscreen Information

Touchscreen: Yes

Extended Details

Barcode Discount

Symbol MC9090-K Mobile Computer Part #: MC9094-KKCHJAHA6WW | SKU: 253371
