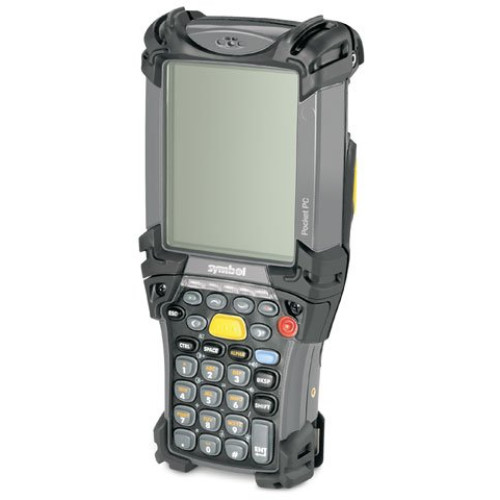

Symbol MC9090-S Mobile Computer
Symbol Barcode Scanner and Mobile Handheld Computer

Symbol MC9090-S Mobile Computer
Part #: MC9090-SK0HJAFA6WW | SKU: 20243

The rugged MC9000-S Series mobile computer from Symbol Technologies, The Enterprise Mobility Company, is designed for true mobile field applications. It delivers real-time visibility into your company's day-to-day business transactions for improved efficiencies, reduced costs and new competitive advantage. Built for harsh environments, the durable MC9000-S helps reduce errors and improve productivity for field workers. For route drivers, technicians or law enforcement, it gives instant access to mission-critical customer information.

Symbol MC9090-S Mobile Computer

Part Details: MC9090-S, Wireless Short Terminal: 2D Imager, Color, 128MB, 28 key, Windows Mobile 5.0, Audio/Voice/Bluetooth
Need a different version of the Symbol MC9090-S Mobile Computer? View all 39 configurations

Additional Information

Data Collection Type Wireless
Display Resolution No
Manufacturer No
Model Name MC9090-S
Network Connectivity 802.11a, 802.11g, Bluetooth
Operating System No
Product Condition No
RAM Memory No
Scanner Type No
Style No
MC9090-S Specs MC9090-S Specs (pdf)

Technical Information

  • Operating System: Windows Mobile 5.0 Premium Edition
  • Processor: Intel PXA270 XScale 624MHz
  • Data Collection Type: Wireless
  • Scanner Type: Imager Standard Range - Pico SE 4400
  • Symbologies Supported:
    • Australian 4-State
    • Canadian 4 State
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • CompositeAB
    • Composite C
    • Coupon Code
    • DataMatrix
    • Discrete 2 of 5
    • Dutch Kix
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Japanese 4-State
    • Macro Micro PDF-417
    • Macro PDF-417
    • Micro PDF-417
    • MaxiCode
    • MSI
    • PDF 417
    • QR Code
    • RSS-Expanded
    • RSS-Limited
    • RSS-14
    • TLC39
    • Trioptic Code 39
    • UK 4-State
    • UPC/EAN Supplementals
    • UPC-A
    • UPC-E
    • U.S. Planet
    • U.S. Postnet
    • Webcodes

General Information

  • Manufacturer: Symbol
  • Product Line: Mobile Computer (MC)
  • Product Name: MC9090-S Mobile Computer

Physical Characteristics

  • Display: 3.8" Color QVGA - Touch Screen LCD
  • Display Resolution: 320 x 240
  • User Accessible Expansion Slot: SDIO
  • Keyboard: 28 Key Numeric Integrated
  • Battery Capacity: 1550 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 2.2" (56mm) x 3.6" (91mm) x 9.1" (231mm)

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • 0°C (32°F) to 40°C (104°F) Charging
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
    • +/-8kVdc Indirect Discharge
  • Drop Spec: 6' To Concrete Multiple at -20°C to 50°C
  • Tumble: 2000 one-meter tumbles at room temperature (4000 hits)

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11 b/g/a
    • WPAN Bluetooth
  • Maximum RF Data Rate Supported: 54 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz

Other

  • Additional Information: Communication Options: Audio Voice Communication: Voice-over-IP Ready (P2P, PBX, PPT) Wi-Fi Certified
  • Package Contents: MC9090-S Mobile Computer Battery Hand Strap Stylus BT Explorer Regulatory Guide Quick Start Guide

Memory

  • RAM Memory: 64MB
  • Flash Memory: 128MB

Agency Approvals

  • Agency Approvals: Electrical Safety: Certified to UL60950-1 CSA C22.2 No. 60950-1 EN60950-1 IEC 60950-1 EMI/RFI: FCC Part 2 (SAR) FCC Part 15 RSS210 B EN 300 328 EN 301 489-1 EN 489-17

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
