Symbol Barcode Scanner and Mobile Handheld Computer

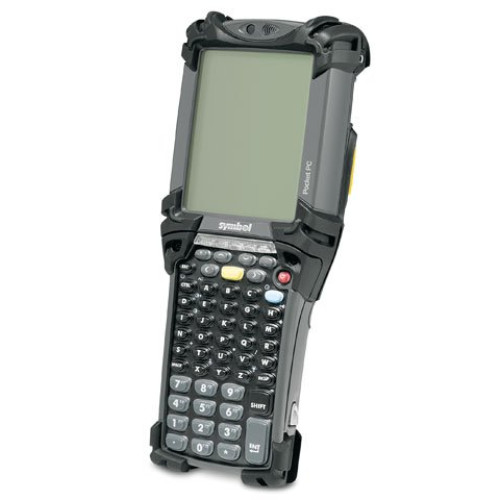

Symbol MC9090-K Mobile Computer
Part #: MC9090-KK0HJAFA6WR | SKU: 30099

The rugged MC9000-K Series from Symbol Technologies, The Enterprise Mobility Company, is an exceptionally reliable mobile computer that delivers real-time visibility into your company's mission-critical information. Three wireless radios offer maximum accessibility to help workers make more informed decisions. The MC9000-K provides multiple benefits: reduce errors, improve productivity and comply with increased safety standards, environmental or homeland security regulatory issues. It's ideal for your field, delivery, home office, operations, warehouse or factory applications.

Symbol MC9090-K Mobile Computer

Part Details: MC9090-K, Brick, 802.11a/b/g, Imager, Color, 64/128MB, 28 key, Windows Mobile 5.0.0, Audio/Voice/Bluetooth

Need a different version of the Symbol MC9090-K Mobile Computer? View all 53 configurations

Additional Information

Data Collection Type	Wireless
Display Resolution	No
Drop Rating	No
IP Rating	No
Manufacturer	No
Model Name	MC9090-K
Network Connectivity	802.11a, 802.11g, Bluetooth
Operating System	No
Product Condition	No
RAM Memory	No
Scanner Type	No
Style	No

MC9090-K Specs (pdf)

Technical Information

Scanner Range: Standard Range
Connectivity Technology: Wireless
Image Sensor: Imager
Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
Barcode Symbology Supported:
- Codabar
- Code 11
- Code 39
- Code 93
- Code 128
- Composite AB
- Composite C
- Coupon Code
- Data Matrix
- Discrete 2 of 5
- Dutch Kix
- EAN-8
- EAN-13
- Interleaved 2 of 5
- Macro Micro PDF-417
- Macro PDF-417
- Micro PDF-417
- Maxi Code
- MSI
- PDF-417
- QR Code
- RSS Expanded
- RSS Limited
- RSS-14
- TLC39
- Trioptic 39
- UPC/EAN supplementals
- UPCA
- UPCE
- US Planet
- US Postnet
- Webcode
- Australian 4-state
- Canadian 4-state
- Japanese 4-state
- UK 4-state

General Information

Product Type: Handheld Terminal
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC9090-K
Product Name: MC9090-K Mobile Computer

Physical Characteristics

Height: 2.2"
Width: 3.6"
Length: 9.1"

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11a/b/g
Wireless Security:
- AES
- LEAP
- PEAP (MS-CHAP v2)
- PEAP-TLS
- TKIP
- TLS
- TTLS (CHAP)
- TTLS (MS-CHAP)
- TTLS (MS-CHAP v2)
- TTLS-MD5
- TTLS-PAP
- WEP (40 or 128 bit)

Other

Additional Information:
- Country Code: Class1Div2
- Form Factor: Brick
- Imager Type: Piico
- Tumble: 2,000 one-meter tumbles at room temperature (4,000 drops)
- Communication Options: Audio
- Voice Communication:
- Voice-over-IP Ready (P2P, PBX, PPT)
- Wi-Fi Certified

Memory

Flash Memory: 128 MB
Standard Memory: 64 MB
Memory Card Slot: Yes
Memory Card Supported:
- Secure Digital (SD) Card
- MultiMediaCard (MMC)

Display & Graphics

Display Screen Type: LCD
Screen Mode: QVGA
Screen Size: 3.8"
Display Color: Color
Screen Resolution: 320 x 240

Processor & Chipset

Processor Manufacturer: Intel
Processor Speed: 624 MHz
Processor Type: XScale

Battery Information

Battery Capacity: 2200 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Software

Operating System: Windows Mobile 5.0

Touchscreen Information

Touchscreen: Yes

Keyboard/Keypad

Keyboard Type: Numeric

Extended Details

Barcode Discount

Symbol MC9090-K Mobile Computer Part #: MC9090-KK0HJAFA6WR | SKU: 30099
