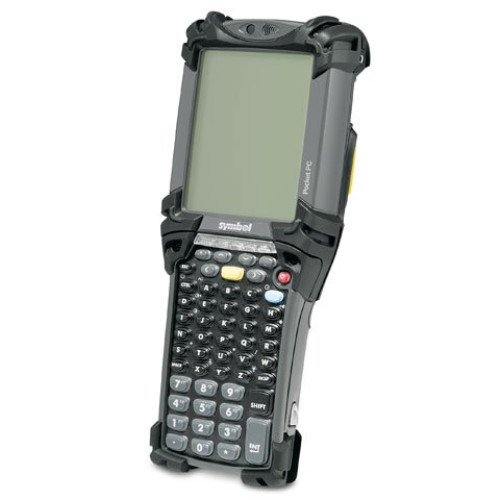

Symbol MC9090-K Mobile Computer
Part #: MC9090-KH0HJFFA6WW | SKU: 20238

The rugged MC9000-K Series from Symbol Technologies, The Enterprise Mobility Company, is an exceptionally reliable mobile computer that delivers real-time visibility into your company's mission-critical information. Three wireless radios offer maximum accessibility to help workers make more informed decisions. The MC9000-K provides multiple benefits: reduce errors, improve productivity and comply with increased safety standards, environmental or homeland security regulatory issues. It's ideal for your field, delivery, home office, operations, warehouse or factory applications.

Symbol MC9090-K Mobile Computer

Part Details: MC9090-K, Wireless Handheld Terminal: 1D Imager, Color, 64/128MB, 43 key, Windows Mobile 5.0, Audio/Voice/Bluetooth

Need a different version of the Symbol MC9090-K Mobile Computer? View all 53 configurations

Additional Information

Data Collection Type	Wireless
Display Resolution	No
Drop Rating	No
IP Rating	No
Manufacturer	No
Model Name	MC9090-K
Network Connectivity	802.11a, 802.11g, Bluetooth
Operating System	No
Product Condition	No
RAM Memory	No
Scanner Type	Laser
Style	No

MC9090-K Specs (pdf)

Technical Information

Operating System: Windows Mobile 5.0 Premium Edition
Processor: Intel PXA270 XScale 624MHz
Data Collection Type: Wireless
Wireless Security:
- AES
- LEAP
- PEAP (MS-CHAP v2)
- PEAP-TLS
- TKIP
- TLS
- TTLS (CHAP)
- TTLS (MS-CHAP)
- TTLS (MS-CHAP v2)
- TTLS-MD5
- TTLS-PAP
- WEP 40 bit
- WEP 128 bit
Scanner Type: Laser Standard Range - SE 1224 1D
Symbologies Supported:
- Codabar
- Code 39
- Code 93
- Code 128
- Discrete 2 of 5
- Interleaved 2 of 5
- MSI
- RSS
- UCC/EAN 128
- UPC/EAN

General Information

Manufacturer: Symbol
Product Line: Mobile Computer (MC)
Product Name: MC9090-K Mobile Computer

Physical Characteristics

Display: 3.8" Color QVGA - Touch Screen LCD
Display Resolution: 320 x 240
User Accessible Expansion Slot: SDIO
Keyboard: 43 Key Numeric Function Shift Alpha Integrated
Battery Capacity: 2200 mAh
Battery Type: Lithium Ion - Included
Dimensions: 2.2" (56mm) x 3.6" (91mm) x 9.1" (231mm)

Environmental Conditions

Environmental Sealing: IP64
Temperature:
- -20Â°C (-4Â°F) to 50Â°C (122Â°F) Operating
- 0Â°C (32Â°F) to 40Â°C (104Â°F) Charging
- -40Â°C (-40Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 95% Non-condensing
Electrostatic Discharge (ESD):
- +/-15kVdc Air Discharge
- +/-8kVdc Direct Discharge
- +/-8kVdc Indirect Discharge
Drop Spec: 6' To Concrete Multiple at -20Â°C to 50Â°C
Tumble: 2000 one-meter tumbles at room temperature (4000 hits)

Wireless Data Communications

Network Connectivity:
- WLAN 802.11 b/g/a
- WPAN Bluetooth
Maximum RF Data Rate Supported: 54 Mbps
Output Power: 100mW
Antenna Connectors: Internal
Frequency Band/Bandwidth: 2.4GHz to 5GHz

Other

Additional Information:
- Communication Options: Audio
- Region: Worlwide
Package Contents: MC9090-K Mobile Computer Battery Hand Strap Stylus BT Explorer Regulatory Guide Quick Start Guide

Memory

RAM Memory: 64MB
Flash Memory: 128MB

Agency Approvals

Agency Approvals: Electrical Safety: Certified to UL60950-1 CSA C22.2 No. 60950-1 EN60950-1 IEC 60950-1 EMI/RFI: FCC Part 2 (SAR) FCC Part 15 RSS210 B EN 300 328 EN 301 489-1 EN 489-17 Laser Safety: IEC Class2/FDA Class II in Accordance with IEC60825-1/EN60825-1

Warranty

Manufacturer Warranty: 1 Year(s) Limited

Extended Details

Barcode Discount

Symbol MC9090-K Mobile Computer Part #: MC9090-KH0HJFFA6WW | SKU: 20238
