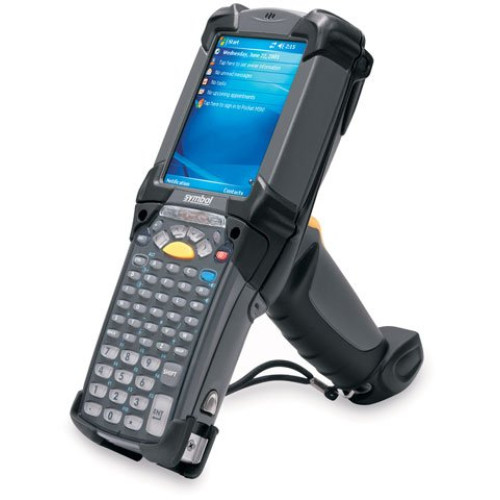

Symbol MC9090-G Mobile Computer
Symbol Barcode Scanner and Mobile Handheld Computer

Symbol MC9090-G Mobile Computer
Part #: MC9090-GF0HBEGA2WW | SKU: 20183

The MC9000-G Series from Symbol Technologies is an elegant, ruggedized mobile computer for use in bar code scanning-intensive applications throughout your enterprise. The MC9000-G gives your organization real-time access to mission-critical information from key points in your supply chain.

Symbol MC9090-G Mobile Computer

Part Details: MC9090-G, Wireless Gun Terminal: 802.11a/b/g, Standard Range Laser (SE1224), Color, 64MB, 53 key, Windows CE 5.0, Bluetooth
Need a different version of the Symbol MC9090-G Mobile Computer? View all 173 configurations

Additional Information

Data Collection Type Wireless
Display Resolution No
Drop Rating No
IP Rating No
Manufacturer No
Model Name MC9090-G
Network Connectivity 802.11a, 802.11g, Bluetooth
Operating System No
Product Condition No
RAM Memory No
Scanner Type Laser
MC9090-G Specs MC9090-G Specs (pdf)

Technical Information

  • Operating System: Windows CE 5.0
  • Processor: Intel PXA270 XScale 624MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit
  • Scanner Type: Laser Standard Range - SE 1224 1D
  • Symbologies Supported:
    • Codabar
    • Code 39
    • Code 93
    • Code 128
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • MSI
    • RSS
    • UCC/EAN 128
    • UPC/EAN

General Information

  • Manufacturer:
  • Product Line: Mobile Computer (MC)
  • Product Name: MC9090-G Mobile Computer

Physical Characteristics

  • Display: 3.8" Color QVGA - Touch Screen LCD
  • Display Resolution: 320 x 240
  • User Accessible Expansion Slot: MMC SD (For Memory Expansion Only)
  • Keyboard: 53 Key Alphanumeric Integrated
  • Battery Capacity: 2200 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 7.6" (193mm) x 3.6" (91mm) x 9.1" (231mm)
  • Weight: 25 oz - Includes Battery, Scanner and Radio

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • 0°C (32°F) to 40°C (104°F) Charging
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
    • +/-8kVdc Indirect Discharge
  • Drop Spec: 6' To Concrete Multiple at -20° C to 50° C
  • Tumble: 2000 one-meter tumbles at room temperature (4000 hits)

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11 b/g/a
    • WPAN Bluetooth
  • Maximum RF Data Rate Supported: 54 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz

Other

  • Additional Information: Region: Worldwide
  • Package Contents:
    • MC9090-G Mobile Computer Battery Hand Strap Stylus BT Explorer Regulatory Guide Quick Start Guide
    • MC9090-G Mobile ComputerBatteryHand StrapStylusBT ExplorerRegulatory GuideQuick Start Guide

Agency Approvals

  • Agency Approvals:
    • Electrical Safety: Certified to UL60950-1 CSA C22.2 No. 60950-1 EN60950-1 IEC 60950-1 EMI/RFI: FFC Part2(SAR) FCC Part 15 RSS210 EN 300 328 EN 301 487 EN55022 EN55024 Laser Safety: IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
    • Electrical Safety:Certified to UL60950-1CSA C22.2 No. 60950-1EN60950-1IEC 60950-1EMI/RFI:FFC Part2(SAR)FCC Part 15RSS210EN 300 328EN 301 487EN55022EN55024Laser Safety:IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Memory

  • RAM Memory: 64MB
  • Flash Memory: 64MB

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
