Symbol Barcode Scanner and Mobile Handheld Computer

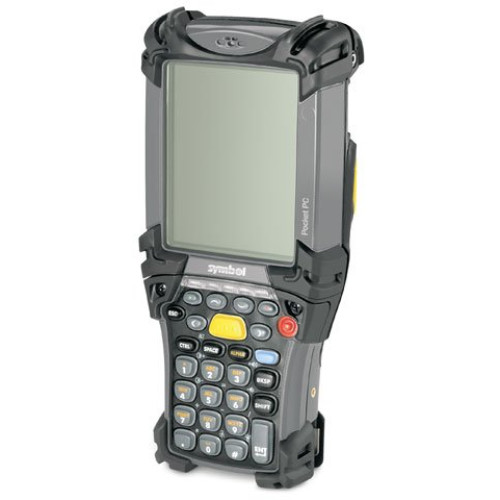

Symbol MC9000-S Mobile Computer
Part #: MC9063-SHEH9AEA7WW | SKU: 21643

The rugged MC9000-S Series mobile computer from Symbol Technologies, The Enterprise Mobility Company, is designed for true mobile field applications. It delivers real-time visibility into your company's day-to-day business transactions for improved efficiencies, reduced costs and new competitive advantage. Built for harsh environments, the durable MC9000-S helps reduce errors and improve productivity for field workers. For route drivers, technicians or law enforcement, it gives instant access to mission-critical customer information.

Symbol MC9000-S Mobile Computer

Part Details: MC9000-S, Windows Mobile 2003 128 MB RAM Wireless Bluetooth 28 key Numeric keypad Color Display XScale PXA255 processor at 400 MHz Code Division Multiple Access Sprint, Laser Standard Range Scanner Includes: MC9063-K Mobile Computer, Battery, Stylus, Hand Strap, Regulatory Guide, Quick Start Guide. Cradles, Power supply and Communication Cables not included. See accessories.

Need a different version of the Symbol MC9000-S Mobile Computer? View all 22 configurations

Additional Information

Data Collection Type	Wireless
Display Resolution	No
Manufacturer	No
Model Name	MC9000-S
Network Connectivity	Bluetooth
Operating System	No
Product Condition	No
RAM Memory	No
Scanner Type	Laser
Style	No

MC9000-S Specs (pdf)

Technical Information

Scanner Range: Standard Range
Connectivity Technology: Wireless
Light Source: Laser
Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
Barcode Symbology Supported:
- Code 11
- Code 39
- Code 93
- Code 128
- Codabar
- Coupon Code
- Discrete 2 of 5
- EAN-8
- EAN-13
- Interleaved 2 of 5
- MSI
- Trioptic Code 39
- UPC-A
- UPC-E
- UPC/EAN Supplementals
- Webcodes

General Information

Product Type: Handheld Terminal
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC9063-S
Product Name: MC9063-S Mobile Computer

Physical Characteristics

Height: 1.7"
Width: 3.6"
Length: 7.6"
Weight (Approximate): 1.44 lb

Other

Package Contents:
- MC9063-S Mobile Computer
- Battery
- Hand Strap
- Stylus
- Regulatory Guide
- Quick Start Guide<
- MC9063-S Mobile Computer
- Battery
- Hand Strap
- Stylus
- Regulatory Guide
- Quick Start Guide<
Certifications & Standards:
- Electrical Safety:
- Certified to UL60950
- CSA C22.2 No. 60950
- EN60950/IEC 950
- EMI/RFI:
- North America:
- FCC Part 2 (SAR)
- FCC Part 15
- RSS210 Class B
- EN 301 489-1, 489-17
- Laser Safety:
- IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
Additional Information:
- CDMA: Sprint
- Communication Options: Audio
- Region: World Wide

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11b
Wireless Security:
- WEP 128 bit
- Keyguard - (SBL TKIP)
- Kerberos
- LEAP
- WPA Home (PSK)
- PEAP
- WPA Enterprise (EAP Authenticated)
- Airbeam Safe (VPN)

Memory

Flash Memory: 64 MB
Standard Memory: 128 MB
Memory Card Slot: Yes
Memory Card Supported: Secure Digital (SD) Card

Processor & Chipset

Processor Manufacturer: Intel
Processor Speed: 400 MHz
Processor Type: XScale

Display & Graphics

Screen Mode: QVGA
Screen Size: 3.8"
Display Color: Color

Battery Information

Battery Capacity: 1550 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

Keyboard Type: Numeric
Number of Keys: 28

Software

Operating System: Windows Mobile 2003

Warranty

Limited Warranty: 1 Year

Touchscreen Information

Touchscreen: Yes
