Additional Information
| Data Collection Type | Wireless |
|---|---|
| Display Resolution | No |
| Manufacturer | No |
| Model Name | MC9060-G |
| Network Connectivity | Bluetooth |
| Operating System | No |
| Product Condition | No |
| RAM Memory | No |
| Scanner Type | No |
| Style | No |
MC9060-G Specs
Technical Information
- Operating System: Windows Mobile 2003
- Processor: Intel PXA255 XScale 400MHz
- Data Collection Type: Wireless
- Wireless Security:
- WEP 128 bit
- Keyguard - (SBL TKIP)
- Kerberos
- LEAP
- WPA Home (PSK)
- PEAP
- WPA Enterprise (EAP Authenticated)
- Airbeam Safe (VPN)
- Scanner Type: Imager Standard Range
- Symbologies Supported:
- Code 39
- Code 128
- Code 93
- Codabar
- Code 11
- Interleaved 2 of 5
- Discrete 2 of 5
- MSI
- EAN-8
- EAN-13
- UPC-A
- UPC-E
- UPC/EAN Supplementals
- Coupon Code
- Trioptic Code 39
- Webcodes
- TLC39
- CompositeAB
- Composite C
- Micro PDF417
- PDF 417
- Macro PDF-417
- Macro Micro PDF-417
- QR Code
- RSS-Expanded
- RSS-Limited
- RSS-14
- DataMatrix
- MaxiCode
- U.S. Postnet
- U.S. Planet
- UK 4-State
- Australian 4-State
- Canadian 4 State
- Japanese 4-State
- Dutch Kix
General Information
- Manufacturer: Symbol
- Product Line: Mobile Computer (MC)

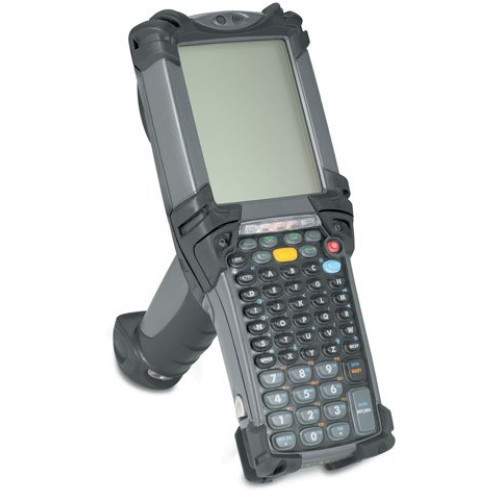

- Product Name: MC9060-G Mobile Computer
Physical Characteristics
- Display: 3.8" Color QVGA - Touch Screen
- User Accessible Expansion Slot: MMC SD (For Memory Expansion Only)
- Keyboard: 53 Key Alphanumeric Integrated
- Battery Capacity: 2200 mAh
- Battery Type: Lithium Ion
- Dimensions: 7.6" (193mm) x 3.6" (91mm) x 9.2" (234mm)
- Weight: 26 oz - Includes Battery, Scanner and Radio
Environmental Conditions
- Environmental Sealing: IP64
- Temperature:
- -20°C (-4°F) to 50°C (122°F) Operating
- -40°C (-40°F) to 70°C (158°F) Storage
- Humidity: 5 to 95% Non-condensing
- Electrostatic Discharge (ESD):
- +/-15kVdc Air Discharge
- +/-8kVdc Direct Discharge
- +/-8kVdc Indirect Discharge
- Drop Spec: 6' To Concrete -20? C to 50? C
- Tumble: 2000 one-meter tumbles at room temperature (4000 hits)
Agency Approvals
- Agency Approvals:
- Certified to UL60950
- CSA C22.2 No. 60950
- EN60950/IEC 950
- North America:
- FCC Part 2 (SAR)
- FCC Part 15
- RSS210 Class B
- EN 301 489-1, 489-17
- IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
Other
- Package Contents:
- MC9060-G Mobile Computer
- Battery
- Handstrap
- Stylus
- Regulatory Guide
- Quick Start Guide
Wireless Data Communications
- Network Connectivity:
- WLAN 802.11b
- WPAN Bluetooth
- Maximum RF Data Rate Supported: 11 Mbps
- Output Power: 100mW
- Antenna Connectors: Internal
- Frequency Band/Bandwidth: 2.4GHz to 2.5GHz
Memory
- RAM Memory: 64MB
- Flash Memory: 64MB
Warranty
- Manufacturer Warranty: 1 Year(s) Limited
