Symbol Barcode Scanner and Mobile Handheld Computer

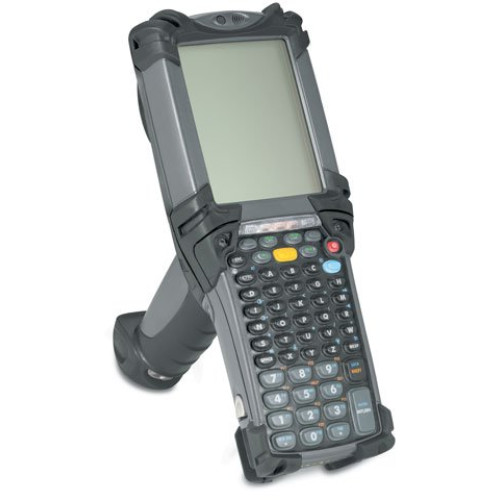

Symbol MC9060-G Mobile Computer
Part #: MC9060-GJ0HBAB00WW | SKU: 17039

The MC9060-G (MC9000-G Series) Series from Symbol Technologies is an elegant, ruggedized mobile computer for use in bar code scanning-intensive applications throughout your enterprise. The MC9060-G (MC9000-G Series) gives your organization real-time access to mission-critical information from key points in your supply chain.

Symbol MC9060-G Mobile Computer

Part Details: MC9060 Wireless Gun Terminal (802.11b, On Board Radio, Windows CE .NET, Extended Range Scanner, Color, 28 key Keypad, 64MB RAM and 64MB ROM)

Need a different version of the Symbol MC9060-G Mobile Computer? View all 46 configurations

Additional Information

Data Collection Type	Wireless
Display Resolution	No
Manufacturer	No
Model Name	MC9060-G
Operating System	No
Product Condition	No
RAM Memory	No
Scanner Type	Laser
Style	No

MC9060-G Specs (pdf)

Technical Information

Operating System: Windows CE .NET
Processor: Intel PXA255 XScale 400MHz
Data Collection Type: Wireless
Wireless Security:
- WEP 128 bit
- Keyguard - (SBL TKIP)
- Kerberos
- LEAP
- WPA Home (PSK)
- PEAP
- WPA Enterprise (EAP Authenticated)
Scanner Type: Laser Standard Range - Lorax 1D
Symbologies Supported:
- Code 39
- Code 93
- Code 128
- Codabar
- Interleaved 2 of 5
- Discrete 2 of 5
- UPC/EAN
- UCC/EAN 128
- RSS
- MSI
- Code 11
- EAN-8
- EAN-13
- UPC-A
- UPC-E
- UPC/EAN Supplementals
- Coupon Code
- Trioptic Code 39
- Webcodes

General Information

Manufacturer: Symbol
Product Line: Mobile Computer (MC)
Product Name: MC9060-G Mobile Computer

Physical Characteristics

Display: 3.8" Color QVGA - Touch Screen LCD
User Accessible Expansion Slot: MMC SD (For Memory Expansion Only)
Keyboard: 28 Key Numeric
Battery Capacity: 2200 mAh
Battery Type: Lithium Ion - Included
Dimensions: 7.6" (193mm) x 3.6" (91mm) x 9.2" (234mm)
Weight: 26 oz - Includes Battery, Scanner and Radio

Environmental Conditions

Environmental Sealing: IP64
Temperature:
- -20Â°C (-4Â°F) to 50Â°C (122Â°F) Operating
- -40Â°C (-40Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 95% Non-condensing
Electrostatic Discharge (ESD):
- +/-15kVdc Air Discharge
- +/-8kVdc Direct Discharge
- +/-8kVdc Indirect Discharge
Drop Spec:
- 6' To Concrete Multiple at -10?C to 50?C
- 5' To Concrete Multiple at -25?C to -10?C
Tumble: 2000 one-meter tumbles at room temperature (4000 hits)

Agency Approvals

Agency Approvals:
- Certified to UL60950
- CSA C22.2 No. 60950
- EN60950/IEC 950
- North America:
- FCC Part 2 (SAR)
- FCC Part 15
- RSS210 Class B
- EN 301 489-1
- 489-17
- IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Other

Additional Information: Region: World Wide
Package Contents:
- MC9060-G Mobile Computer
- Battery
- Handstrap
- Stylus
- Regulatory Guide
- Quick Start Guide

Wireless Data Communications

Network Connectivity: WLAN 802.11b
Maximum RF Data Rate Supported: 11 Mbps
Output Power: 100mW
Antenna Connectors: Internal
Frequency Band/Bandwidth: 2.4GHz to 2.5GHz

Memory

RAM Memory: 64MB
Flash Memory: 64MB

Warranty

Manufacturer Warranty: 1 Year(s) Limited
