Symbol Barcode Scanner and Mobile Handheld Computer

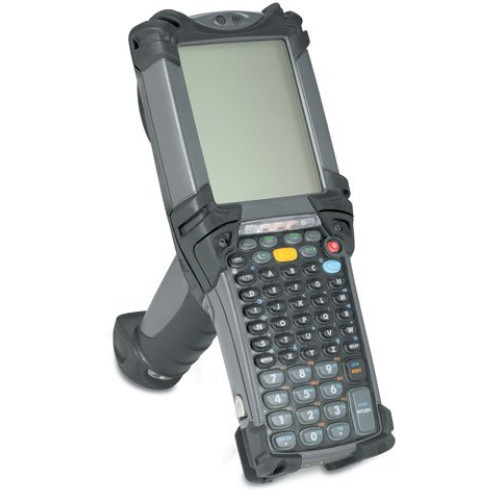

Symbol MC9060-G Mobile Computer
Part #: MC9060-GF0JBJEA4WW | SKU: 21636

The MC9060-G (MC9000-G Series) Series from Symbol Technologies is an elegant, ruggedized mobile computer for use in bar code scanning-intensive applications throughout your enterprise. The MC9060-G (MC9000-G Series) gives your organization real-time access to mission-critical information from key points in your supply chain.

Symbol MC9060-G Mobile Computer

Part Details: MC9000-G, Windows Mobile 2003 64MB RAM Wireless 802.11b 53 key Numeric keypad 3.8" Monochrome Display XScale PXA255 processor at 400 MHz Cradles, Power supply and Communication Cables not included. See accessories.

Need a different version of the Symbol MC9060-G Mobile Computer? View all 46 configurations

Additional Information

Data Collection Type	Wireless
Display Resolution	No
Manufacturer	No
Model Name	MC9060-G
Operating System	No
Product Condition	No
RAM Memory	No
Scanner Type	No

MC9060-G Specs (pdf)

Technical Information

Operating System: Windows Mobile 2003
Processor: Intel PXA255 XScale 400MHz
Data Collection Type: Wireless
Wireless Security:
- WEP 128 bit
- Keyguard - (SBL TKIP)
- Kerberos
- LEAP
- WPA Home (PSK)
- PEAP
- WPA Enterprise (EAP Authenticated)
- WEP 40
- Airbeam Safe (VPN)
- WEP 40 bit
Scanner Type: Laser Standard Range
Symbologies Supported:
- Code 128
- UPC/EAN
- UCC/EAN 128
- RSS
- Code 39
- Code 93
- Interleaved 2 of 5
- Discrete 2 of 5
- MSI
- Codabar

General Information

Manufacturer: Symbol
Product Line: Mobile Computer (MC)
Product Name: MC9060-G Mobile Computer

Physical Characteristics

Display: 3.8" Monochrome QVGA - Touch Screen LCD
User Accessible Expansion Slot: MMC SD (For Memory Expansion Only)
Keyboard: 53 Key 5250 Emulation Integrated
Battery Capacity: 2200 mAh
Battery Type: Lithium Ion - Included
Dimensions: 7.6" (193mm) x 3.6" (91mm) x 9.2" (234mm)
Weight: 26 oz

Environmental Conditions

Environmental Sealing: IP64
Temperature:
- -20Â°C (-4Â°F) to 50Â°C (122Â°F) Operating
- -40Â°C (-40Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 95% Non-condensing
Electrostatic Discharge (ESD):
- +/-15kVdc Air Discharge
- +/-8kVdc Direct Discharge
- +/-8kVdc Indirect Discharge
Drop Spec:
- 6' To Concrete -20? C to 50? C
- 5' To Concrete -25 C to -10 C
Tumble: 2000 one-meter tumbles at room temperature (4000 hits)

Agency Approvals

Agency Approvals:
- Certified to UL60950
- CSA C22.2 No. 60950
- EN60950/IEC 950
- North America:
- FCC Part 2 (SAR)
- FCC Part 15
- RSS210 Class B
- EN 301 489-1, 489-17
- IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Other

Package Contents:
- MC9060-G Mobile Computer
- Battery
- Handstrap
- Stylus
- Regulatory Guide
- Quick Start Guide

Wireless Data Communications

Network Connectivity: WLAN 802.11b
Maximum RF Data Rate Supported: 11 Mbps
Output Power: 100mW
Antenna Connectors: Internal
Frequency Band/Bandwidth: 2.4GHz to 2.5GHz

Memory

RAM Memory: 64MB
Flash Memory: 64MB

Warranty

Manufacturer Warranty: 1 Year(s) Limited
