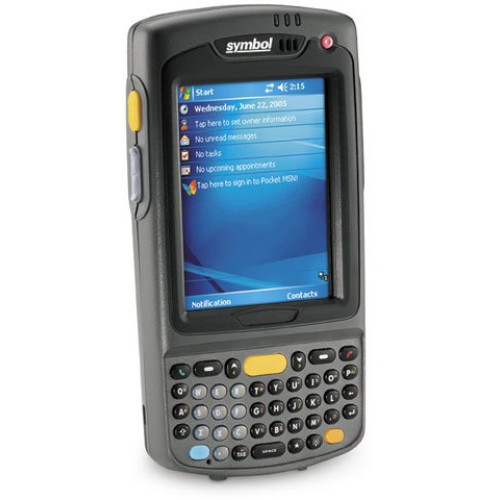

Symbol MC70 Mobile Computer
Part #: MC7090-PK0DCRFA8WR | SKU: 29447

The flagship MC70 Enterprise Digital Assistant (EDA) is a rugged handheld mobile device that incorporates a mobile phone, PDA, computer, scanner and imager in a single unit designed for the rigors of all-day, everyday usage. This compact, lightweight device combines multi-mode wireless networking, voice and data communications, and advanced data capture in an enterprise productivity tool that can support nearly any application in any environment. Superior voice functionality includes outstanding acoustic performance and voice quality, handset, headset and speakerphone modes, as well as push to talk capability (if supported by your WLAN application or WWAN carrier). Your mobile workers will have everything they need to increase productivity and efficiency inside and outside your four walls - from field workers reading meters and repairing equipment to drivers delivering packages, hospital workers checking lab results and medication orders, and more.

Symbol MC70 Mobile Computer

Part Details: Wireless Enterprise Digital Assistant (WLAN, 2D Imager, 128MB/128MB, Numeric Keypad, Windows Mobile 5.0, Extended Battery and Bluetooth)

Additional Information

Data Collection Type Wireless
Display Resolution No
Drop Rating No
IP Rating No
Manufacturer No
Model Name MC70
Network Connectivity 802.11a, 802.11g
Operating System No
Product Condition No
RAM Memory No
Scanner Type No
Style No

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • 15 kV DC
    • 8 kV DC
  • Drop Specification:
    • 48"
    • 60"73.4°F (23°C)
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Composite AB
    • Composite C
    • Coupon Code
    • Data Matrix
    • Discrete 2 of 5
    • Dutch Kix
    • EAN-13
    • EAN-8
    • Interleaved 2 of 5
    • Macro Micro PDF-417
    • Macro PDF-417
    • Micro PDF-417
    • Maxi Code
    • MSI
    • PDF 417
    • QR Code
    • RSS-Expanded
    • RSS-Limited
    • RSS-14
    • TLC39
    • Trioptic Code 39
    • UPC/EAN Supplementals
    • UPC-A
    • UPC-E
    • U.S. Planet
    • U.S. Postnet
    • Webcode
    • Australian 4-State
    • Canadian 4 State
    • Japanese 4-State
    • UK 4-State

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC70
  • Product Name: MC70 Mobile Computer

Physical Characteristics

  • Height: 1.5"
  • Width: 3"
  • Length: 6"
  • Weight (Approximate): 11.20 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC70 Mobile Computer
    • Lithium-Ion Battery
    • Battery Cover
    • Hand Strap
    • Tethered Stylus
    • Protective Overlay
    • Regulatory Guide
    • Quick Start Guide
    • MC70 Mobile Computer
    • Lithium-Ion Battery
    • Battery Cover
    • Hand Strap
    • Tethered Stylus
    • Protective Overlay
    • Regulatory Guide
    • Quick Start Guide
  • Certifications & Standards:
    • Electrical Safety:
    • UL / cUL 60950-1
    • IEC / EN60950-1
    • RF Exposure:
    • Canada: RSS-102
    • EU: EN 50360
    • USA:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • Australia:
    • AS/NZ 2772.1
    • ARPANSA
    • WLAN and Bluetooth:
    • Canada: RSS-210
    • Australia: AS/NZS 4268
    • USA:
    • FCC Part 15.247
    • FCC Part 15.407
    • EU:
    • EN 300 328-1
    • EN 301 893
    • Japan:
    • ARIB STD-T33
    • ARIB STD-T66
    • ARIB STD-T71
    • Quad Band:
    • EU: EN301 511
    • Global:
    • 3GPP TS 51.010
    • GCF Approved Module
    • USA:
    • FCC Part 22
    • FCC Part 24
    • Canada:
    • RSS-132
    • RSS-133
    • Australia:
    • AS/ACIF S 018
    • AS TS 001
  • Additional Information:
    • Communication Option: Audio
    • Form Factor: Ruggedized Enterprise Digital Assistant (EDA)
    • Environmental Sealing: IP54
    • Tumble: 1,000 1.6 ft./.5 m tumbles (2,000 drops)
    • Voice Communication:
    • Integrated Voice-over-IP Ready (P2P, PBX, PTT)
    • Wi-Fi Certified

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit
    • WPA2

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 240 x 320

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 128 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital (SD) Card

Battery Information

  • Battery Capacity: 3800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Number of Keys: 26

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 5.0 Premium Edition

Warranty

  • Limited Warranty: 1 Year

I/O Expansions

  • Expansion Slot Type: SDIO
Extended Details
