Symbol Barcode Scanner and Mobile Handheld Computer

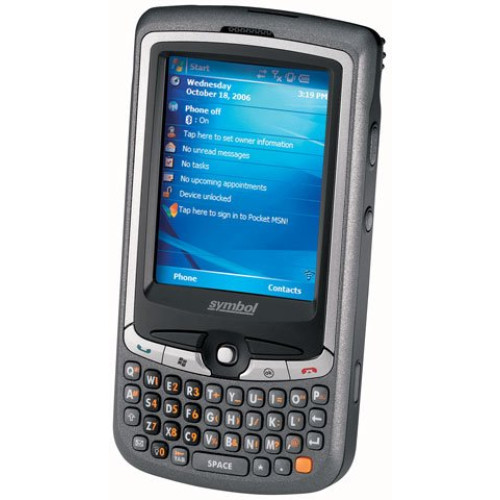

Symbol MC35 Mobile Computer
Part #: MC35-CL-0-E | SKU: 26921

Keep your on-the-move workers connected, responsive and productive with the little device that offers big business functionality. This single pocketable device puts the combined power of a mobile phone, laptop, camera and bar code scanner at the fingertips of your employees, in a durable device that offers a product life that well exceeds that of the traditional consumer smartphone or PDA. And the convergence of voice and data translates into one device for employees to carry and one device for IT to manage simplifying your mobility architecture and your capital and operational costs.

Symbol MC35 Mobile Computer

Part Details: MC35, Includes GPS, Bluetooth, WWAN, eGPRS, 802.11b WLAN and camera and a charger unit. Also known as MC3574-PQCDJQHA7WR.

Need a different version of the Symbol MC35 Mobile Computer? View all 34 configurations

Additional Information

Data Collection Type	Wireless
Display Resolution	No
Drop Rating	No
Keypad	37 Keys
Manufacturer	No
Model Name	MC35
Network Connectivity	Bluetooth
Operating System	No
Operating Temperature	No
Processor	416 MHz Intel XScale
Product Condition	No
RAM Memory	No
Scanner Capability	2D
Scanner Type	No
Style	No

MC35 Specs (pdf)

Technical Information

Connectivity Technology: Batch
Image Sensor: Imager
Electrostatic Discharge (ESD):
- +/-8 kV DC Air Discharge
- +/-4 kV DC Direct Discharge
Drop Specification: 36" To Concrete
Barcode Symbology Supported:
- Codabar
- Code 39
- Code 128
- DataMatrix
- Interleaved 2 of 5
- PDF 417
- QR Code
- UCC/EAN 128
- UPC/EAN

General Information

Product Type: Handheld Terminal
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC35
Product Name: MC35 Mobile Computer

Physical Characteristics

Height: 0.8"
Width: 2.6"
Length: 5"
Weight (Approximate): 6.53 oz

Other

Package Contents:
- MC35 Mobile Computer
- Stylus
- Battery
- AC Adapter
- USB Cable
- Quick Start Guide
- Regulatory Guide
- MC35 Mobile Computer
- Stylus
- Battery
- AC Adapter
- USB Cable
- Quick Start Guide
- Regulatory Guide
Certifications & Standards:
- Electrical Safety:
- UL 60950-1
- CSA C22.2 No. 60950-1
- EN 60950-1
- IEC 60950-1 with All National Deviations
- EMC:
- FCC Part 15 Subpart B
- ICES-003 Class B
- EN 55022
- EN 55024
- EN 61000-4-3
- EN 61000-3-2
- EN 61000-3-3
- EN 301 489-1
- EN 301 489-7
- EN 301 489-17
- CISPR 22 Class B
- CISPR 24
- Bluetooth:
- FCC Parts 15.247
- FCC Parts 15.205
- FCC Parts 15.207
- FCC Parts 15.209
- FCC Parts 15.203
- EN 300 328
- RSS-210
- Quad Band EDGE/GSM:
- 3GPP TS 51.010
- GCF Approved Module
- FCC Part 22
- FCC Part 24
- RSS-132
- RSS-133
- EN301 511
- RF Exposure:
- FCC 47CFR Part 1.1307(b) Part 2.1093
- OET Bulletin 65 Supplement 'C'
- EN 50360
Additional Information:
- Tumble: 150 1.5 ft./50cm tumbles
- Camera

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: Internal
Network Band: Quad Band
Wireless LAN Standard: IEEE 802.11b/g
GPS: Yes
Wireless Security:
- 802.1x
- EAP-PEAP
- EAP-TLS
- WEP
- WPA
- WPA1
- WPA2

Memory

Standard Memory: 64 MB
Memory Card Slot: Yes
Memory Card Supported:
- MultiMediaCard (MMC)
- Secure Digital (SD) Card

Display & Graphics

Display Screen Type: LCD
Screen Mode: QVGA
Screen Size: 2.8"
Display Color: Color
Screen Resolution: 320 x 240

Processor & Chipset

Processor Manufacturer: Intel
Processor Speed: 416 MHz
Processor Type: XScale

Battery Information

Battery Capacity: 1350 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

Keyboard Type: Alphanumeric

Warranty

Limited Warranty: 1 Year

Touchscreen Information

Touchscreen: Yes

Software

Operating System: Windows Mobile 5.0 Premium Phone Edition

Extended Details

Recommended Accessories for Model: Symbol MC35 Mobile Computer

Motorola MC35 Accessory
Part #: CRD3X01-4001ER | SKU: 216862

CRADLE:FOUR SLOT ETHERNET;MC3X

$697.48

See Price in Cart (Why?)
Symbol MC35 Spare Parts
Part #: KT-93761-01R | SKU: 26837

Travel Charger, includes power pack, plugs for US, EU, UK, and AU
Symbol MC35 Battery
Part #: BTRY-MC35EAB0E | SKU: 26838

Standard Battery
Symbol MC35 Battery
Part #: BTRY-MC35EAB02 | SKU: 26839

Extended Charge Battery
Symbol MC35 Accessory
Part #: 50-11G55-001R | SKU: 26840

USB charging and communications cable
