Symbol Barcode Scanner and Mobile Handheld Computer

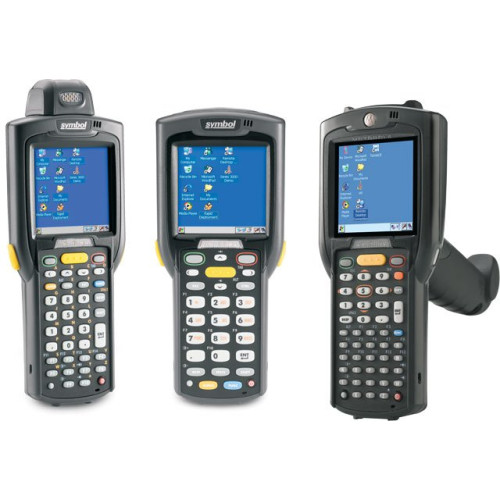

Symbol MC3090 Mobile Computer
Part #: MC3090S-IC48H00GER | SKU: 26404

The MC3000 from Symbol Technologies is a lightweight, rugged mobile computer ideal for scan-intensive environments that require high-quality data capture throughout the enterprise. Its superior ergonomic design and flexible configurations facilitate faster decision making and increased workforce satisfaction inside the retail store, on the loading dock or on a delivery route.

Symbol MC3090 Mobile Computer

Part Details: Brick Configuration, Windows CE Pro OS, 802.11a/b/g Wireless, 48 key, Color Display, Imager. Order cradle, cables & power supply separately. See accessories.

Need a different version of the Symbol MC3090 Mobile Computer? View all 91 configurations

Additional Information

Data Collection Type	Wireless
Display Resolution	No
Drop Rating	No
IP Rating	No
Keypad	48
Manufacturer	No
Model Name	MC3090
Network Connectivity	802.11a, 802.11g
Operating System	No
Operating Temperature	No
Processor	No
Product Condition	No
RAM Memory	No
Scanner Capability	1D
Scanner Type	No
Style	No

MC3090 Specs (pdf)

Technical Information

Operating System: Windows CE Professional 5.0
Processor: Intel PXA270 XScale 520MHz
Data Collection Type: Wireless
Wireless Security:
- LEAP
- PEAP
- WEP
- WPA
Scanner Type: Imager
Symbologies Supported:
- Codabar
- Code 11
- Code 39
- Code 93
- Code 128
- Composite Code
- Coupon Code
- DataMatrix
- Discrete 2 of 5
- Dutch Kix
- EAN-3
- EAN-13
- EAN-128
- Interleaved 2 of 5
- Macro PDF-417
- Micro PDF-417
- Macro Micro PDF-417
- MaxiCode
- MSI/PLESSEY
- PDF 417
- RSS-Expanded
- RSS-Limited
- RSS-14
- TLC39
- UPC/EAN Supplementals
- UPC-A
- UPC-E
- U.S. Planet
- Australian 4-State
- Canadian 4 State
- Japanese 4-State
- UK 4-State

General Information

Manufacturer:
- Symbol
- Motorola
Product Line: Mobile Computer (MC)
Product Name: MC3090-S Mobile Computer

Physical Characteristics

Display: Color QVGA - Transflective TFT LCD
Display Resolution: 320 x 320
User Accessible Expansion Slot: SD Card Slot
Keyboard: 48 Key Alpha Numeric Shift Function Integrated
Battery Capacity: 4400 mAh
Battery Type: Lithium Ion
Dimensions: 3.18" (81mm) x 7.43" (189mm) x 1.76" (45mm)
Weight: 15.1 oz

Environmental Conditions

Environmental Sealing: IP54
Temperature:
- -10Â°C (14Â°F) to 50Â°C (122Â°F) Operating
- -30Â°C (-22Â°F) to 70Â°C (158Â°F) Storage
- 0Â°C (32Â°F) to 40Â°C (104Â°F) Charging
Humidity: 5 to 95% Non-condensing
Electrostatic Discharge (ESD):
- +/-15kVdc Air Discharge
- +/-8kVdc Direct Discharge
Drop Spec: 4' To Concrete Multiple at -10Â°C to 50Â°C
Tumble: 500 one-half meter tumbles at room temperature (1000 drops)

Wireless Data Communications

Network Connectivity: WLAN 802.11 b/g/a
Maximum RF Data Rate Supported: 54 Mbps
Output Power: 100mW
Antenna Connectors: Internal
Frequency Band/Bandwidth: 2.4GHz to 5.825GHz

Other

Additional Information: Form Factor: Straight Shooter OS Language: English
Package Contents: MC3090-S Mobile Computer Strap/Door Assembly Stylus Regulatory Guide Quick Start Guide

Memory

RAM Memory: 64MB
Flash Memory: 64MB

Agency Approvals

Agency Approvals: RoHS Compliance

Warranty

Manufacturer Warranty: 1 Year(s) Limited
