Symbol Barcode Scanner and Mobile Handheld Computer

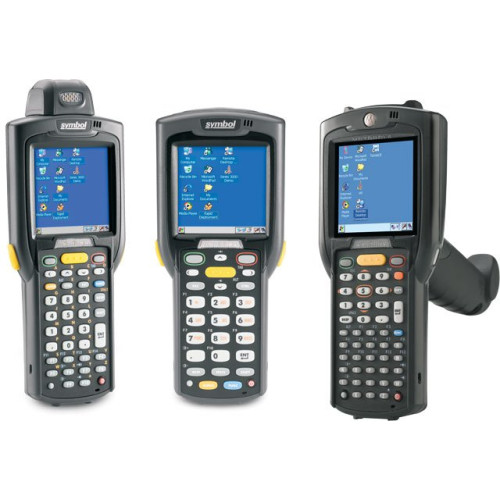

Symbol MC3090 Mobile Computer
Part #: MC3090G-LM38H00KER | SKU: 23759

The MC3000 from Symbol Technologies is a lightweight, rugged mobile computer ideal for scan-intensive environments that require high-quality data capture throughout the enterprise. Its superior ergonomic design and flexible configurations facilitate faster decision making and increased workforce satisfaction inside the retail store, on the loading dock or on a delivery route.

Symbol MC3090 Mobile Computer

Part Details: MC3090, Gun Configuration, Windows CE 5 Core OS, 802.11a/b/g Wireless, 38 key, Monochrome Display, Laser Scanner. Order cradle, cables & power supply separately. See accessories.

Need a different version of the Symbol MC3090 Mobile Computer? View all 91 configurations

Additional Information

Data Collection Type	Wireless
Display Resolution	No
Drop Rating	No
IP Rating	No
Manufacturer	No
Model Name	MC3090
Network Connectivity	802.11a, 802.11g
Operating System	No
Product Condition	No
RAM Memory	No
Scanner Type	Laser
Style	No

MC3090 Specs (pdf)

Technical Information

Connectivity Technology: Wireless
Light Source: Laser
Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
Drop Specification: 48" To Concrete
Barcode Symbology Supported:
- Codabar
- Code 11
- Code 39
- Code 93
- Code 128
- Discrete 2 of 5
- EAN-3
- EAN-13
- EAN-128
- Interleaved 2 of 5
- UPC/EAN Supplementals
- UPC-A
- UPC-E

General Information

Product Type: Handheld Terminal
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC3090-G
Product Name: MC3090-G Mobile Computer

Physical Characteristics

Width: 3.2"
Depth: 6.5"
Length: 7.6"
Weight (Approximate): 1.19 lb

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- MC3090-G Mobile Computer
- Strap/Door Assembly
- Stylus
- Regulatory Guide
- Quick Start G
- MC3090-G Mobile Computer
- Strap/Door Assembly
- Stylus
- Regulatory Guide
- Quick Start G
Certifications & Standards:
- Electrical Safety:
- UL60950
- CSA C22.2 No. 60950
- EN60950/IEC 950
- EMI/RFI:
- North America:
- FCC Part 2 (SAR)
- FCC Part 15
- RSS210 Class B
- EN 301 489-1
- EN 301 489-17
- Laser Safety:
- IEC Class 2/FDA Class II in accordance with IEC60825-1/EN60825-1
Additional Information:
- Form Factor: Gun
- OS Language: English

Network & Communication

Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11a/b/g
Wireless Security:
- LEAP
- PEAP
- WPA
- WEP

Memory

Flash Memory: 32 MB
Standard Memory: 64 MB
Memory Card Slot: Yes
Memory Card Supported: Secure Digital (SD) Card

Display & Graphics

Display Screen Type: LCD
Screen Mode: QVGA
Display Color: Monochrome
Screen Resolution: 320 x 320

Processor & Chipset

Processor Manufacturer: Intel
Processor Speed: 312 MHz
Processor Type: XScale

Keyboard/Keypad

Keyboard Type: Alphanumeric
Number of Keys: 38

Battery Information

Battery Capacity: 4400 mAh
Battery Chemistry: Lithium Ion (Li-Ion)

Software

Operating System: Windows CE 5.0 Core

Warranty

Limited Warranty: 1 Year
