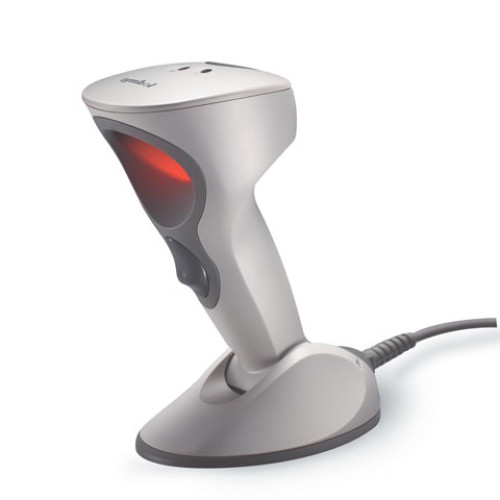

Symbol M2004 Cyclone Barcode Scanner
Part #: M2005-I400-0500ZN | SKU: 16399

A smart investment Symbol's innovative new scanner is future-ready now. The Cyclone scanner decodes existing new and emerging bar code symbologies instantly. The Cyclone scanner is packed with features that deliver optimum flexibility including next generation scanning technology. As good looking as it is practical the Cyclone's sleek design complements any store's decor. Large merchandise or small single or multiple bar code types this scanner can handle it all. Revolutionary user-selectable scan pattern versatility plus remarkable ease of use and adaptability make the Adaptive Cyclone Scanner Series from Symbol Technologies a standout for bar code scanning at point of sale.

Symbol M2004 Cyclone Barcode Scanner

Part Details: M2004 Cyclone Scanner (IBM Port 9B Coil Cable and 220 VAC Power supply)

Need a different version of the Symbol M2004 Cyclone Barcode Scanner? View all 38 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	M2004 Cyclone
Product Condition	No
Specialty Encoding	None

M2004 Cyclone Specs (pdf)

Technical Information

Form Factor:
- Handheld Scanner
- Presentation Scanner
Barcode Dimension: 1D/2D
Resolution:
- 6.6 mil(s) - Raster/Single Line
- 5.5 mil(s) - Omni-directional
Symbologies Supported:
- UPC/EAN/JAN
- NW7
- Code 128
- Code 39 Full ASCII
- MSI/PLESSEY
- Interleaved 2 of 5
- Discrete 2 of 5
- UCC/EAN 128
- Codabar
- PDF 417
- UCC/EAN
- RSS Code
Scanner Type: Laser
Interface Options: IBM 46XX
Interface Connectivity: Corded
Scan Pattern:
- Omnidirectional
- Single Line
- 2-D Raster
- Semi-omni-directional
Depth of Field:
- 0.5 - 12"@20mils - Code 39
- 0 - 2"@6mils - Code 39
- 0.3 - 11" - 100% UPC

General Information

Manufacturer: Symbol
Product Line: Cyclone
Product Name: Cyclone M2005 Barcode Scanner

Physical Characteristics

Dimensions: 3.4" (86.36mm) x 7.8" (198.12mm) x 5.4" (137.16mm)
Weight: 12 oz
Color: White

Agency Approvals

Agency Approvals:
- UL 1950
- CSA C22.2 No. 950
- EN60950/IEC950
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA
- CDRH Class ll
- IEC Class 2

Other

Package Contents:
- Cyclone M2005 Barcode Scanner
- Direct Connect IBM Port 9B 8.5ft Coiled Cable(25-32753-21)
Cables Included: IBM 468X/469X

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 40Â°C (104Â°F) Operating
- -40Â°C (-40Â°F) to 60Â°C (140Â°F) Storage
Humidity: 5 to 95% Non-condensing

Warranty

Manufacturer Warranty: 3 Year(s)

Extended Details
