Symbol LS 9208 Barcode Scanner Symbol LS 9208 Barcode Scanner Symbol LS 9208 Barcode Scanner
Symbol Barcode Scanner and Mobile Handheld Computer

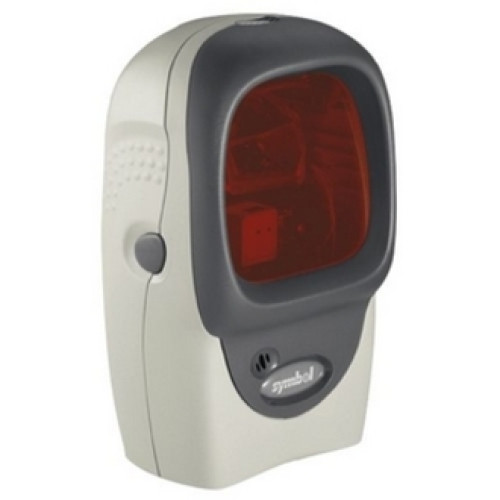

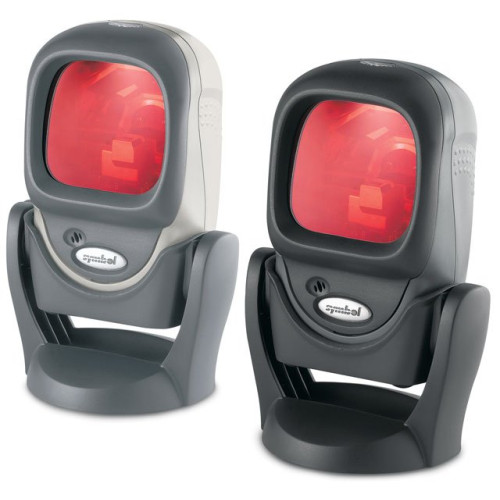

Symbol LS 9208 Barcode Scanner
Part #: LS9208-1NNK0100D | SKU: 7675

The LS 9208 presentation scanner, from Symbol Technologies, delivers both a high-performance processor and an innovative 100-line rastering omnidirectional scan pattern for increased productivity at checkout, resulting in higher customer satisfaction.----Built for both speed and versatility, the LS 9208 features a small footprint, choice of colors and an optional, adjustable multimount stand that is easily adaptable to many point-of-sale environments.

Symbol LS 9208 Barcode Scanner

Part Details: Omnidirectional Projection Scanner (Cash Register White, No EAS, No Plural Stage Application, Keyboard wedge PS/2 6 ft. Power Port, straight 25-62417-20, No Synapse Smart cable, Stand 20-59808-01 or -04 and N.A. Power supply: 50-14000-008R)
Need a different version of the Symbol LS 9208 Barcode Scanner? View all 41 configurations

Additional Information

Included Cables USB
Manufacturer No
Model Name LS 9208
Product Condition No
Specialty Encoding None
LS 9208 Specs LS 9208 Specs (pdf)

Technical Information

  • Form Factor: Presentation Scanner
  • Resolution: 5 mil(s)
  • Symbologies Supported:
    • UPC
    • EAN
    • JAN
    • UCC/EAN 128
    • Code 128
    • ISBT 128
    • Code 39
    • Code 39 TriOptic
    • Interleaved 2 of 5
    • Code 93
    • Code 11
    • Codabar
    • MSI
    • Discrete 2 of 5
    • RSS Variants
  • Scanner Type: Laser
  • Scan Rate:
    • 1500 Scans/sec Omnidirectional
    • 75 Scans/sec Single Scan Line
  • Interface Options: Keyboard Wedge
  • Interface Connectivity: Corded
  • Scan Pattern:
    • Omnidirectional
    • Single Line
  • Input Voltage:
    • 110 V AC
    • 5 V DC
  • Power Supply: Included
  • Depth of Field:
    • 0 - 9"@13mils - 100% UPC/EAN
    • 0 - 7.5"@10.4mils
    • 1 - 2.5"@5mils

General Information

  • Manufacturer: Symbol
  • Product Line: LS
  • Product Name: LS 9208 Omnidirectional Projection Scanner

Physical Characteristics

  • Dimensions:
    • 5.51" (139.95mm) x 3.49" (88.65mm) x 2.96" (75.18mm) - Scanner Only
    • 7.18" (182.37mm) x 4.83" (122.68mm) x 3.73" (94.74mm) - With Adjustable Stand
  • Weight:
    • 320 g - Scanner Only
    • 670 g - With Adjustable Stand
  • Color: White

Other

  • Package Contents:
    • LS 9208 Omnidirectional Projection Scanner
    • Adjustable Stand
    • 110V Power Supply (50-14000-008)
    • KBW PS/2 (6ft. Power Port, Straight) Cable (25-62417-20)
    • Product CD (SW-61232-01)
  • Cables Included: Keyboard Wedge

Agency Approvals

  • Agency Approvals:
    • Certified to UL 1950
    • Certified to CSA C22.2 No. 950 EN60825
    • CDRH Class IIa Laser Product
    • IEC 60825 Class 1 Laser Product
    • CISPR B
    • FCC B

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95%

Warranty

  • Manufacturer Warranty: 30 Month(s)
Extended Details
