Symbol Barcode Scanner and Mobile Handheld Computer

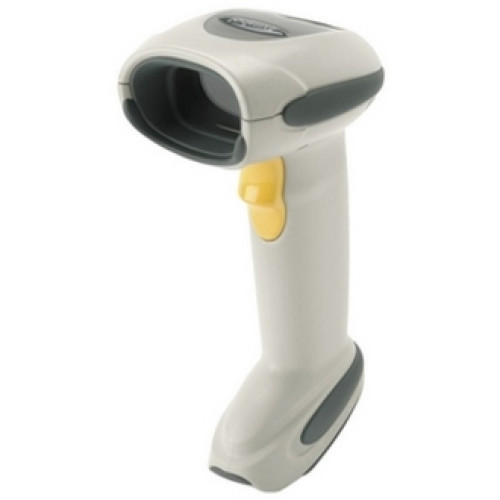

Symbol LS 4278 Barcode Scanner
Part #: LS4278-TRWK0100ZWR | SKU: 29403

Free your workers and enhance productivity with Symbol's LS4278 Bluetooth cordless bar code scanner, delivering accurate bar code scanning anywhere in the workspace. Superb scanning functionality enables users to hold the LS4278 at any angle and scan even the smallest, stacked or poorly printed bar codes. The unique design maximizes reliability by removing typical areas of vulnerability. Single board construction eliminates common inter-connection failures. The tempered glass exit window is scratchproof. And industrial long life charging contacts can withstand hundreds of thousands of insertions into the cradle. Combined with remote scanner management capability, the LS4278 offers outstanding value in your retail, healthcare or warehouse environment.

Symbol LS 4278 Barcode Scanner

Part Details: LS 4278, Keyboard wedge kit with 7 ft. straight PS/2 cable. Includes radio and charging cradle. Color: white. AC line cord (Part# PWRS-14000-253R) not included.

Need a different version of the Symbol LS 4278 Barcode Scanner? View all 38 configurations

Additional Information

Color	No
Communication Type	No
Connectivity	No
Form Factor	No
Included Cables	AT/PS2 Keyboard Wedge
Manufacturer	No
Model Name	LS 4278
Product Condition	No
Ruggedness	General Purpose
Scanner Type	Laser
Specialty Encoding	None

LS 4278 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Symbologies Supported:
- UPC/EAN with Supplementals
- Code 39
- Code 39 Full ASCII
- Trioptic Code 39
- RSS Variants
- UCC/EAN 128
- Code 128
- Code 128 Full ASCII
- Code 93
- Codabar (NW1)
- Interleaved 2 of 5
- Discrete 2 of 5
- MSI
- Code ll
- IATA
- Bookland EAN
- Code 32
Scanner Type: Laser
Scan Rate: 200 decodes / sec
Interface Options:
- RS-232 - Standard, Nixdorf, ICL and Fujitsu
- IBM 468X/469X
- Keyboard Wedge
- USB - Standard, IBM SurePOS, Macintosh
- Wand Emulation
- Bluetooth - Scanner
Interface Connectivity: Cordless
Cordless Range: 50'
Scan Pattern: 2-D Raster
Input Voltage: 5 V DC
Power Supply: External
Depth of Field:
- 1.5 - 5.5"@5mils - Code 39
- 0 - 19"@13mils - 100% UPC/EAN
- 0 - 14"@10mils - Code 39
- 0 - 29"@20mils - Code 39

General Information

Manufacturer: Motorola
Product Name: LS4278 Barcode Scanner

Physical Characteristics

Dimensions: 7.3" (185.42mm) x 2.7" (68.58mm) x 3.85" (97.79mm)
Weight: 8.4 oz
Color: White

Agency Approvals

Agency Approvals:
- RoHS
- UL1950
- CSA C22.2 No. 950
- EN60950/IEC950
- CDRH Class II
- IEC Class 2
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA
- Bluetooth Class 2 Version 1.2

Other

Package Contents:
- LS4278 Barcode Scanner
- 7ft. PS/2 Straight Cable
Cables Included: PS/2 Cable

Environmental Conditions

Temperature:
- 32°F (0°C) to 122°F (50°C) Operating
- -40°F (-40°C) to 158°F (70°C) Storage
Humidity: 5 to 95% Non-condensing

Warranty

Manufacturer Warranty: 3 Year(s)
