Symbol LS4208 Barcode Scanner Symbol LS4208 Barcode Scanner Symbol LS4208 Barcode Scanner Symbol LS4208 Barcode Scanner Symbol LS4208 Barcode Scanner
Symbol Barcode Scanner and Mobile Handheld Computer

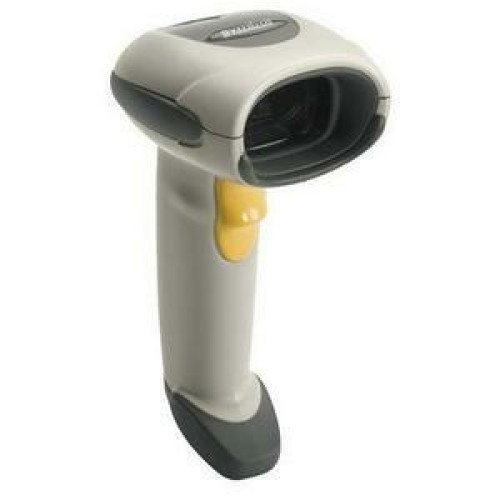

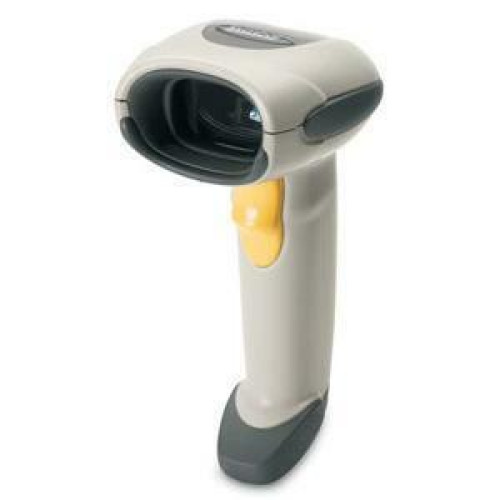

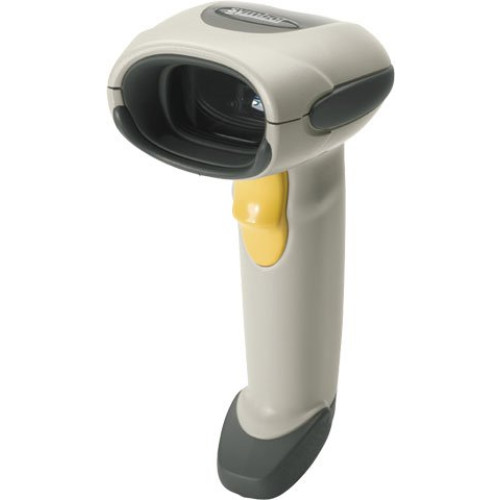

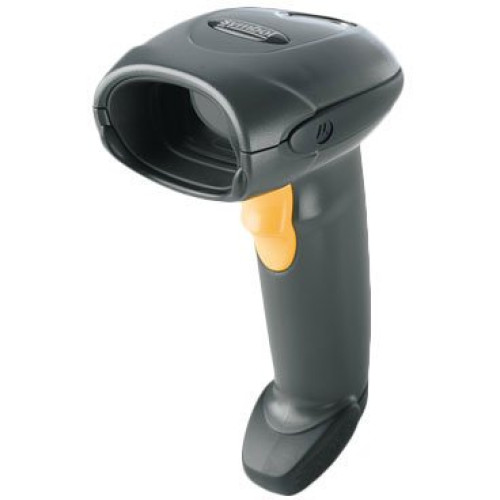

Symbol LS4208 Barcode Scanner
Part #: LS4208-SR20007ZC | SKU: 17004

Symbol's LS4208 handheld laser scanner accelerates throughput with breakthrough productivity-enhancing features, including continuous one-pass scanning. It also offers features not found in other available scanners: innovative multi-line rastering scan pattern, wide working range and superior motion tolerance.

Symbol LS4208 Barcode Scanner

Part Details: LS4208, Checkpoint EAS. Color: Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).
Need a different version of the Symbol LS4208 Barcode Scanner? View all 86 configurations

Additional Information

Included Cables USB
Manufacturer No
Model Name LS4208
Product Condition No
Specialty Encoding None
LS4208 Specs LS4208 Specs (pdf)

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: 2D Raster
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • RSS Variants
    • UCC/EAN 128
    • Code 128
    • Code 128 Full ASCII
    • Code 93
    • Codabar (NW1)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code ll
    • IATA
    • Bookland EAN
    • Code 32
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 1.50" - 5.50"@5 mil - Code 39
    • 0 mil - 14"@10 mil - Code 39
    • 0 mil - 19"@13 mil - 100% UPC/EAN
    • 0 mil - 29"@20 mil - Code 39

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS4208
  • Product Name: Symbol LS 4208 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 6.7"
  • Width: 2.7"
  • Depth: 3.7"
  • Color: Black
  • Weight (Approximate): 6.40 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Certifications & Standards:
    • Electrical safety:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • Laser safety:
    • CDRH Class II
    • IEC Class 2
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
  • Platform Supported: PC
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • IBM 468X/469X
    • Keyboard Wedge
    • USB
    • Wand Emulation

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC
