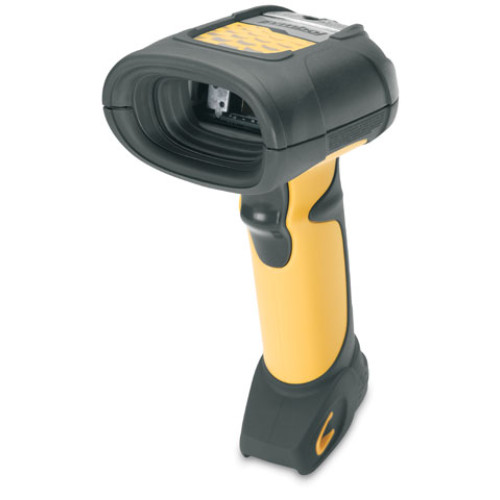

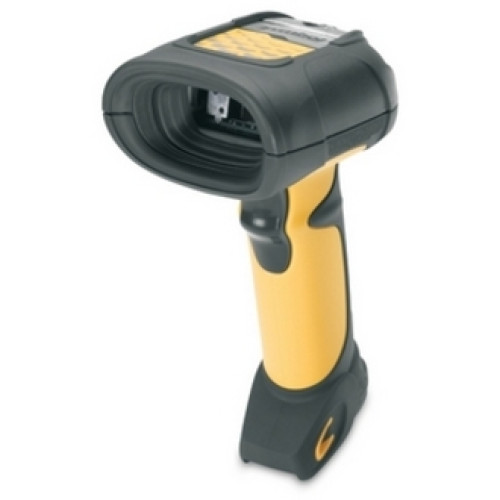

Symbol LS 3478 ER Barcode Scanner
Part #: LS3478-ERBU0100U | SKU: 16980

With the rugged cordless LS3478-ER scanner, you get the greatest working range of any available rugged scanner. You'll speed processes by allowing your employees to scan items on pallets as close as 4 inches (10 centimeters) away and shelves as far away as 45 feet (13.7 meters). In addition, your employees will be able to quickly switch from reading bar codes on inventory to capturing smaller symbologies on bar code menus and pick lists.

Symbol LS 3478 ER Barcode Scanner

Part Details: Rugged Cordless Scanner (Radio/Charging Cradle, 7 ft. Straight USB Cable and Power supply)

Need a different version of the Symbol LS 3478 ER Barcode Scanner? View all 6 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	LS 3478 ER
Product Condition	No
Specialty Encoding	None

LS 3478 ER Specs (pdf)

Technical Information

Scan Rate: 36 scan/s
Connectivity Technology: Wireless
Scanning Distance: 328.08 ft
Light Source: Laser
Barcode Symbology Supported:
- UPC/EAN
- UPC/EAN Supplementals
- UCC/EAN 128
- JAN-13
- JAN-8
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128 Full ASCII
- Code 128
- Codabar (NW7)
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- Code 32
- Bookland EAN
- IATA
- UCC/EAN
- RSS
- RSS Variants
- UPC/EAN
- UPC/EAN Supplementals
- UCC/EAN 128
- JAN-13
- JAN-8
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128 Full ASCII
- Code 128
- Codabar (NW7)
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- Code 32
- Bookland EAN
- IATA
- UCC/EAN
- RSS
- RSS Variants
Maximum Scan Resolution: 7.50 mil
Depth of Field:
- 0.25" - 20"@7.50 mil
- 2" - 32"@10 mil
- 3" - 69"@15 mil
- 3" - 94"@20 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: LS3478-ER
Product Name: Symbol LS3478-ER Barcode Reader
Product Line: Symbol

Physical Characteristics

Height: 7.3"
Width: 4.8"
Depth: 2.9"
Color:
- Twilight Black
- Yellow
Weight (Approximate): 14.80 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Package Contents:
- LS3478ER Barcode Reader
- Radio/charging cradle
- 7ft Straight USB cable
- Universal AC power supply
- LS3478ER Barcode Reader
- Radio/charging cradle
- 7ft Straight USB cable
- Universal AC power supply
Certifications & Standards:
- Input transient protection:
- IEC 1000-4-(2,3,4,5,6,11)
- EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Japan VCCI/MITI/Dentori
- Laser safety:
- IEC825-1 Class 2
Platform Supported: PC
Additional Information:
- Supported Interfaces:
- SerialKeyboard WedgeWand EmulationIBM 468X/469XUSBSynapse

Network & Communication

Bluetooth: Yes

Warranty

Limited Warranty: 3 Year

Battery Information

Battery Chemistry: Lithium Ion (Li-Ion)

Extended Details
