Additional Information
| Color | No |
|---|---|
| Connectivity | No |
| Form Factor | No |
| Included Cables | RS-232 Serial |
| Manufacturer | No |
| Model Name | LS3408-FZ |
| Product Condition | No |
| Ruggedness | No |
| Scanner Capability | 1D |
| Scanner Type | Laser |
| Specialty Encoding | None |
LS3408-FZ Specs
Technical Information
- Barcode Dimension: 1D
- Scan Rate: 36 scan/s
- Connectivity Technology: Cable
- Light Source: Laser
- Barcode Symbology Supported:
- UPC/EAN
- UPC/EAN Supplementals
- UCC/EAN 128
- JAN-8
- JAN-13
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Codabar (NW7)
- Interleaved 2 of 5
- Discrete 2 of 5
- MSI
- Code 11
- Code 32
- Bookland EAN
- IATA
- UCC/EAN RSS
- RSS Variants
- Code 93
- UPC/EAN
- UPC/EAN Supplementals
- UCC/EAN 128
- JAN-8
- JAN-13
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Codabar (NW7)
- Interleaved 2 of 5
- Discrete 2 of 5
- MSI
- Code 11
- Code 32
- Bookland EAN
- IATA
- UCC/EAN RSS
- RSS Variants
- Code 93
- Maximum Scan Resolution: 5 mil
- Depth of Field:
- 2.50" - 7.25"@5 mil
- 2" - 15.75"@7.50 mil
- 1" - 24"@13 mil - 100% UPC
- 0 mil - 39.50"@20 mil - 80% MRD
- 0 mil - 26.50"@20 mil - 31% MRD
- 2" - 67"@40 mil
- 4" - 84"@55 mil
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: LS3408-FZ

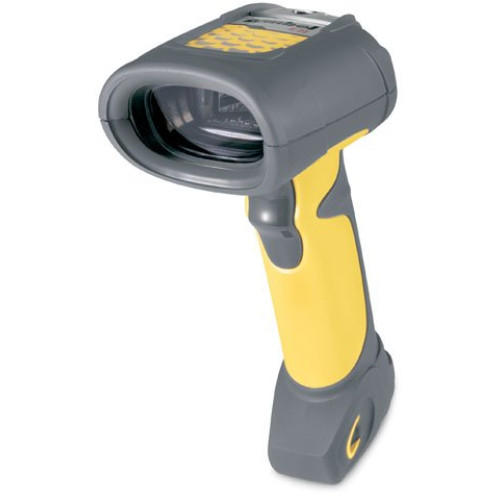

- Product Name: Symbol LS3408-FZ Barcode Reader
- Product Line: Symbol
Physical Characteristics
- Height: 7.3"
- Width: 4.8"
- Depth: 2.9"
- Weight (Approximate): 12.35 oz
Interfaces/Ports
- Host Interface: Multi-interface
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- LS3408-FZ Barcode Reader
- 20ft Coiled RS232 Cable
- Power Supply
- LS3408-FZ Barcode Reader
- 20ft Coiled RS232 Cable
- Power Supply
- Certifications & Standards:
- RoHS Compliant
- Input Transient Protection:
- IEC 1000-4-2
- IEC 1000-4-3
- IEC 1000-4-4
- IEC 1000-4-5
- IEC 1000-4-6
- IEC 1000-4-11
- EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Japan VCCI/MITI/Dentori
- Laser Safety:
- IEC825-1 Class 2
- Additional Information:
- Supported Interfaces:
- SerialKeyboard WedgeWand EmulationIBM 468X/469XUSB
Warranty
- Limited Warranty: 3 Year
Power Description
- Input Voltage: 14 V DC
