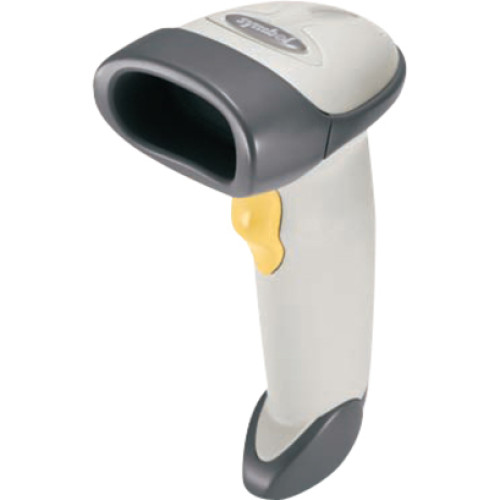

Symbol Barcode Scanner
Part #: LS2208-SR20541R | SKU: 153340

The innovative LS2208 handheld scanner delivers performance features at an affordable price to make your buying decision easier than ever. If you are seeking investment protection in a scanner that's small and light enough for maximum productivity, then the LS 2200 Series is the ideal scanner for you.

Symbol Barcode Scanner

Part Details: LS2208, SCANNER ONLY, 1D Laser. Wand emulation support. Cables and accessories must be purchased separately. Color: White

Need a different version of the Zebra LS2208 Barcode Scanner? View all 70 configurations

Additional Information

Form Factor	No
Manufacturer	No
Model Name	LS2208
Product Condition	No

LS2208 Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Pattern: Single Line
Scan Rate: 100 scan/s
Connectivity Technology: Cable
Scanning Distance: 17"
Light Source: Laser
Image Sensor: Linear
Barcode Symbology Supported:
- UPC/EAN
- UPC/EAN with Supplementals
- UCC/EAN 128
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Codabar
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- IATA
- GS1 DataBar (formerly RSS) variants
- Chinese 2 of 5
- UPC/EAN
- UPC/EAN with Supplementals
- UCC/EAN 128
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Codabar
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- IATA
- GS1 DataBar (formerly RSS) variants
- Chinese 2 of 5
Depth of Field:
- 2.50" - 6"@5 mil - Code 39
- 1.50" - 10"@7.50 mil - Code 39
- 1" - 14.25"@10 mil - Code 39
- 0 mil - 17"@13 mil - 100% UPC
- 0 mil - 23"@20 mil - Code 39
- 0 mil - 30"@40 mil - Code 39

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: LS2208
Product Name: Symbol LS2208 Handheld Barcode Reader
Product Line: Symbol

Physical Characteristics

Height: 6"
Width: 2.5"
Depth: 3.3"
Color: Cash Register White
Weight (Approximate): 5.15 oz

Interfaces/Ports

Host Interface: Wand Emulation

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Certifications & Standards:
- UL1950, CSA C22.2 No. 950
- EN60950/IEC950
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA
- Taiwan EMC
- Japan VCCI/MITI/Dentori
- CDRH Class II
- IEC Class 2

Warranty

Limited Warranty: 5 Year
