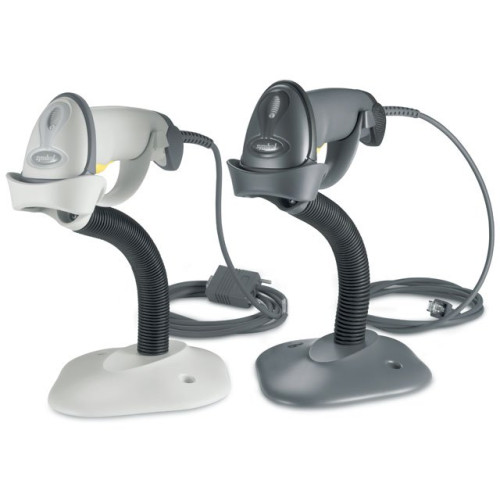

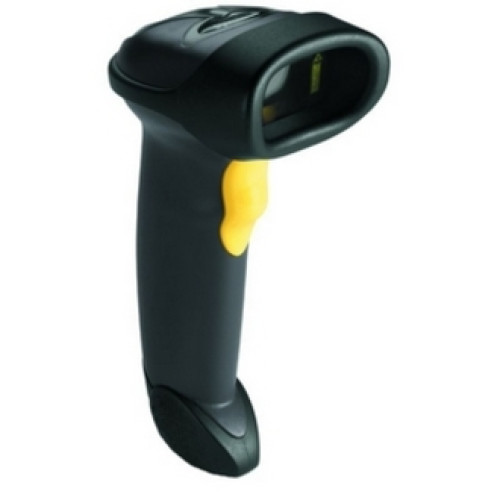

Symbol Barcode Scanner and Mobile Handheld Computer

Symbol Barcode Scanner
Part #: LS2208-7AZM0100S | SKU: 16244

The innovative LS2208 handheld scanner delivers performance features at an affordable price to make your buying decision easier than ever. If you are seeking investment protection in a scanner that's small and light enough for maximum productivity, then the LS 2200 Series is the ideal scanner for you.

Symbol Barcode Scanner

Part Details: LS 2208 Scanner (Multiple interface scanner, IBM 468x/9x Port 9B Cable 7 ft. Straight: 25-32753-20, No Synapse Smart cable and Intellistand 20-61019-01 or 02 Only) - Color: Twilight Black

Need a different version of the Zebra LS2208 Barcode Scanner? View all 70 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	LS2208
Product Condition	No
Specialty Encoding	None

LS2208 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Symbologies Supported:
- UPC/EAN
- UPC/EAN Supplementals
- UCC/EAN 128
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Codabar
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- IATA
- RSS Variants
- Chinese 2 of 5
Scanner Type: Laser
Scan Rate: 100 Scans/sec
Interface Options:
- RS-232
- Keyboard Wedge
- Wand
- IBM 468X/469X
- USB
- Undecoded
- Synapse
Interface Connectivity: Corded
Scan Pattern: Bi-directional
Depth of Field:
- 2.5 - 6"@5mils
- 1.5 - 10"@7.5mils
- 1 - 14.5"@10mils
- 0 - 17" - 100 % UPC
- 0 - 23"@20mils

General Information

Manufacturer: Symbol
Product Name: LS 2208 Barcode Scanner

Physical Characteristics

Dimensions: 6" (152.4mm) x 2.5" (63.5mm) x 3.34" (84.84mm)
Weight: 5.15 oz
Color: Black

Agency Approvals

Agency Approvals:
- UL 1950
- CSA C22.2 No. 950
- EN60950
- IEC950
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA
- Taiwan EMC
- Japan:
- VCCI
- MITI
- Dentori
- CDRH Class II
- IEC Class 2

Other

Package Contents:
- LS2208 Barcode Scanner
- 4683 9B Cable (25-32753-20)
- Stand (20-61019-02)
- CD ROM (SW-61077-02)
Cables Included: IBM 468X/469X

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -40Â°C (-40Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 95% Non-condensing

Warranty

Manufacturer Warranty: 5 Year(s)
