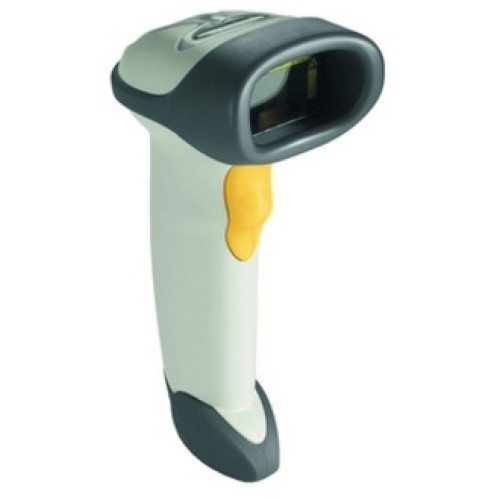

Symbol Barcode Scanner
Part #: LS2208-1AZU0100S | SKU: 7662

The innovative LS2208 handheld scanner delivers performance features at an affordable price to make your buying decision easier than ever. If you are seeking investment protection in a scanner that's small and light enough for maximum productivity, then the LS 2200 Series is the ideal scanner for you.

Symbol Barcode Scanner

Part Details: Multiple interface scanner (USB Series A Connector, 6 ft. Straight: 25-53492-22, No Synapse Smart Cable and Intellistand-20-61019-01 or 02) Only) - Color: Cash Register White

Need a different version of the Zebra LS2208 Barcode Scanner? View all 70 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	LS2208
Product Condition	No
Specialty Encoding	None

LS2208 Specs (pdf)

Technical Information

Scan Pattern: Bi-directional
Scan Rate: 100 scan/s
Connectivity Technology: Cable
Scanning Distance: 17"
Light Source: Laser
Barcode Symbology Supported:
- UPC/EAN
- UPC/EAN with Supplementals
- UCC/EAN 128
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Codabar
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- Code 11
- Code 11
- IATA
- RSS Variants
- China Post 2 of 5
- UPC/EAN
- UPC/EAN with Supplementals
- UCC/EAN 128
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Codabar
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- Code 11
- Code 11
- IATA
- RSS Variants
- China Post 2 of 5
Depth of Field:
- 2.50" - 6"@5 mil
- 1.50" - 10"@7.50 mil
- 1" - 14.50"@10 mil
- 0 mil - 17"@ - 100% UPC
- 0 mil - 23"@20 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: LS2208
Product Name: Symbol LS2208 Barcode Reader
Product Line: Symbol
Package Type: Retail

Physical Characteristics

Height: 6"
Width: 2.5"
Depth: 3.3"
Color: White
Weight (Approximate): 5.15 oz

Interfaces/Ports

Host Interface:
- Serial
- Keyboard Wedge
- USB
- Multi-interface

Other

Package Contents:
- Symbol LS2208 Barcode Reader

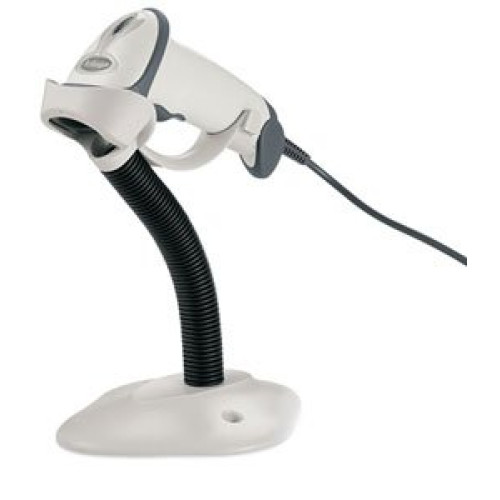

- Intellistand (20-61019-01 or 02)
- USB Series A Connector, 6ft Straight Cable (25-53492-22)
- CD ROM (SW-61077-02)
- Symbol LS2208 Barcode Reader
- Intellistand (20-61019-01 or 02)
- USB Series A Connector, 6ft Straight Cable (25-53492-22)
- CD ROM (SW-61077-02)
Certifications & Standards:
- Electrical Safety:
- UL1950
- CSA C22.2 No. 950
- EN60950/IEC950
- EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA
- Taiwan EMC
- Japan VCCI/MITI/Dentori
- Laser Safety:
- CDRH Class II
- IEC Class 2
Additional Information:
- Supported Interfaces:
- SerialKeyboard WedgeIBM 468X/469XWand EmulationUSB

Warranty

Limited Warranty: 5 Year

Power Description

Input Voltage: 5 V DC
