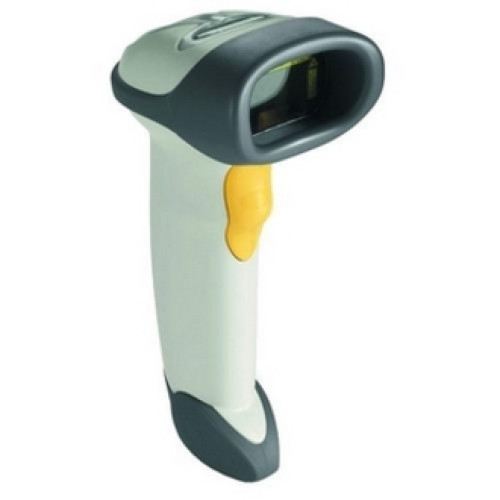

Symbol Barcode Scanner
Part #: LS2208-1AZM0100SR | SKU: 27519

The innovative LS2208 handheld scanner delivers performance features at an affordable price to make your buying decision easier than ever. If you are seeking investment protection in a scanner that's small and light enough for maximum productivity, then the LS 2200 Series is the ideal scanner for you.

Symbol Barcode Scanner

Part Details: LS 2208 Scanner (IBM Kit, Scanner, Port 9B Cable and Stand)

Need a different version of the Zebra LS2208 Barcode Scanner? View all 70 configurations

Additional Information

Form Factor	No
Included Cables	USB
Manufacturer	No
Model Name	LS2208
Product Condition	No
Specialty Encoding	None

LS2208 Specs (pdf)

Technical Information

Scan Pattern: Bi-directional
Scan Rate: 100 scan/s
Connectivity Technology: Cable
Light Source: Laser
Image Sensor: Linear
Barcode Symbology Supported:
- UPC/EAN
- UPC/EAN Supplementals
- UCC/EAN 128
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Codabar
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- IATA
- RSS Variants
- Chinese 2 of 5
- UPC/EAN
- UPC/EAN Supplementals
- UCC/EAN 128
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Codabar
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- IATA
- RSS Variants
- Chinese 2 of 5

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: LS2208
Product Name: LS2208 Handheld Barcode Reader

Physical Characteristics

Height: 6"
Width: 2.5"
Depth: 3.3"
Color: White
Weight (Approximate): 5.15 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- LS2208 Handheld Barcode Reader
- IBM 4683 Port 9B Assembly Cable
- Documentation CD
- Gooseneck Stand
- LS2208 Handheld Barcode Reader
- IBM 4683 Port 9B Assembly Cable
- Documentation CD
- Gooseneck Stand
Certifications & Standards:
- Environmental: RoHS 2002/95/EEC
- Electrical Safety:
- UL1950
- CSA C22.2 No. 950
- EN60950/IEC950
- EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA
- Taiwan EMC
- Japan VCCI/MITI/Dentori
- Laser Safety::
- CDRH Class II
- IEC Class 2
Platform Supported: PC
Additional Information:
- Supported Interfaces:
- Serial
- Keyboard Wedge
- Wand Emulation
- IBM 468X/469X
- USB
- Synapse

Warranty

Limited Warranty: 5 Year

Power Description

Input Voltage: 5 V DC

Extended Details

Barcode Discount

Symbol Barcode Scanner Part #: LS2208-1AZM0100SR | SKU: 27519
