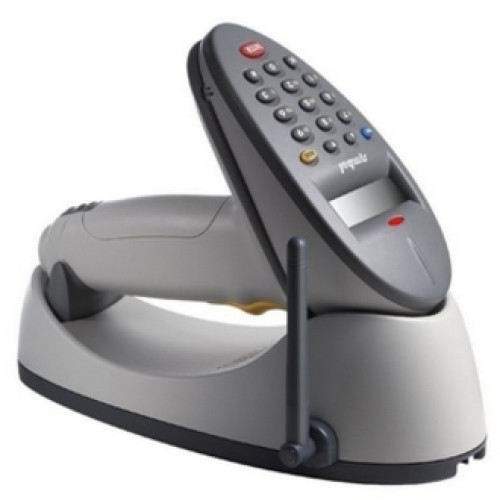

Symbol P470 Barcode Scanner
Part #: K470-SR1001100US | SKU: 15298

Available in industrial and retail versions the P370 and P470 family of cordless scanners from Symbol Technologies handles demanding data management even in extreme environments. The futuristic handle-forward design was awarded a gold medal in the 1998 Industrial Design Excellence Awards (IDEA98) by Business Week magazine and the Industrial Design Society of America.

Symbol P470 Barcode Scanner

Part Details: P470, Phaser P470 Cordless Scanner (Keyless, Retail Kit and US Line Cord)

Need a different version of the Symbol P470 Barcode Scanner? View all 11 configurations

Additional Information

Connectivity	No
Included Cables	USB
Manufacturer	No
Model Name	P470
Product Condition	No
Specialty Encoding	None

P470 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Symbologies Supported:
- Trioptic Code 39
- UPC/EAN
- Code 39
- Code 93
- Codabar
- Interleaved 2 of 5
- Code 128
- EAN-128
- Discrete 2 of 5
- MSI/PLESSEY
- Coupon Code
- Code 39 Full ASCII
Scanner Type: Laser
Scan Rate: 35 Scans/sec
Interface Options: RS-232
Interface Connectivity: Cordless
Cordless Range: 30m
Scan Pattern: Bi-directional
Power Supply: Included
Depth of Field: 1 - 17"@13.3mils
Battery Capacity: 1100 mAh

General Information

Manufacturer: Symbol
Product Line: Phaser
Product Name: Phaser P470 cordless RF Barcode Scanner

Physical Characteristics

Dimensions:
- 7.0" (177.8mm) x 9.2" (233.68mm) x 3.5" (88.9mm) - Scanner
- 3.5" (88.9mm) x 4.0" (101.6mm) x 9.5" (241.3mm) - Base Station
Weight: 12 oz - Scanner
Color: White

Agency Approvals

Agency Approvals:
- UL1950
- CSA C22.2 No. 950
- EN60950/IEC950
- CDRH Class II
- IEC Class 2
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA

Other

Package Contents:
- Phaser P470 cordless RF Barcode Scanner
- Cradle
- Power Supply
- AC LineCord

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 40Â°C (104Â°F) Operating
- -40Â°C (-40Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 95%

Extended Details
