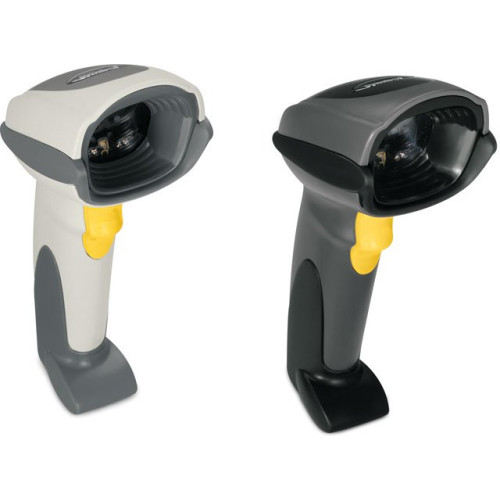

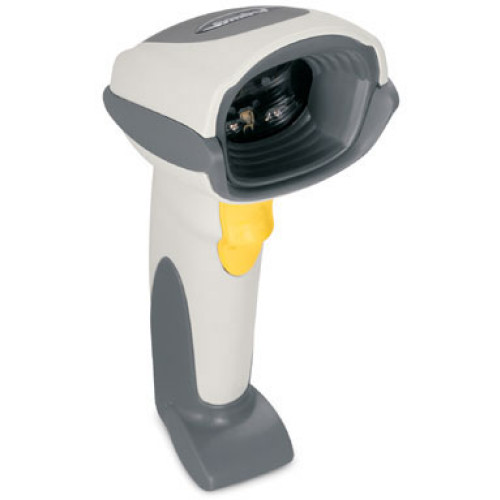

Symbol DS6708 Barcode Scanner
Part #: DS6708-SMWK0100ZR | SKU: 21072

Maximize employee productivity and streamline business processes in the retail store, at the post office, in the pharmacy and on the manufacturing floor with a handheld device from Symbol. With the DS6700, you get the power of a bar code scanner, digital camera and document scanner in a single, cost-effective device. From point-and-shoot simplicity to extremely reliable bar code scanning and the ability to scan full size documents including fine print the DS6700 is the right tool for the job.

Symbol DS6708 Barcode Scanner

Part Details: DS6708, PS/2 Kit, 2D Imager. Includes 7 ft. straight PS/2 Keyboard wedge cable. Color: White

Need a different version of the Symbol DS6708 Barcode Scanner? View all 15 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	DS6708
Product Condition	No
Scan Pattern	No
Scanner Capability	2D
Scanner Type	No
Specialty Encoding	None

DS6708 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Barcode Dimension: 1D/2D
Symbologies Supported:
- UPC/EAN
- UPC/EAN with Supplementals
- UCC/EAN 128
- JAN-8
- JAN-13
- Code 39
- Trioptic Code 39
- Code 128
- Code 128 Full ASCII
- Codabar (NW1)
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- Bookland EAN
- IATA
- Code 32
- RSS Variants
- PDF 417
- Micro PDF417
- MaxiCode
- DataMatrix
- QR Code
- U.S. Postnet
- U.S. Planet
- U.K. Postal
- Japanese Post
- Australian Post
- Dutch Postal
Scanner Type: Imager with Laser Aiming
Interface Options:
- IBM 468X/469X
- Keyboard Wedge
Interface Connectivity: Corded
Scan Pattern: Omnidirectional
Input Voltage: 5 V DC
Power Supply: Included
Depth of Field:
- 1.1 - 6.5"@5mils - Code 39
- 0.5 - 9.7"@13mils - 100% UPC/EAN
- 0.5 - 15.2"@20mils - Code 39
- 0.9 - 7"@10mils - PDF417
- 1.1 - 7.5"@10mils - Datamatrix

General Information

Manufacturer:
- Symbol
- Motorola
Product Name: DS6708 SR Barcode Scanner

Physical Characteristics

Dimensions: 6.55" (166.37mm) x 2.82" (71.63mm) x 4.72" (119.89mm)
Weight: 6.4 oz
Color: White

Agency Approvals

Agency Approvals:
- RoHS Compliant
- Medical Electrical Equipment: EN60001-1-2: 2002
- UL6950-1
- CSA C22.2 No. 60950-1
- EN60950-1/IEC60950-1
- EN60825-1:1994 +A1: 2002 +A2 :2001
- IEC60825-1
- 21CFR1040.10
- 21CFR1040.11
- CDRH Class II
- IEC Class 2
- FCC Part 15 Class B
- ICES-003 Class B
- CISPR 22
- CISPR 24

Other

Package Contents:
- DS6708 SR Barcode Scanner
- Keyboard Wedge Cable
Cables Included: Keyboard Wedge

Environmental Conditions

Temperature:
- 32Â°F (0Â°C) to 122Â°F (50Â°C) Operating
- -40Â°F (-40Â°C) to 158Â°F (70Â°C) Storage
Humidity: 5 to 95% Non-condensing

Warranty

Manufacturer Warranty: 5 Year(s)
