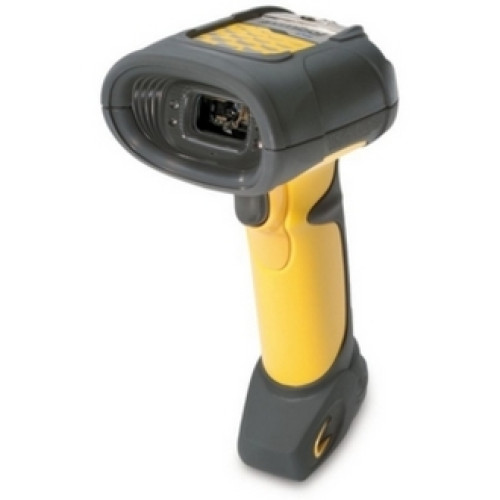

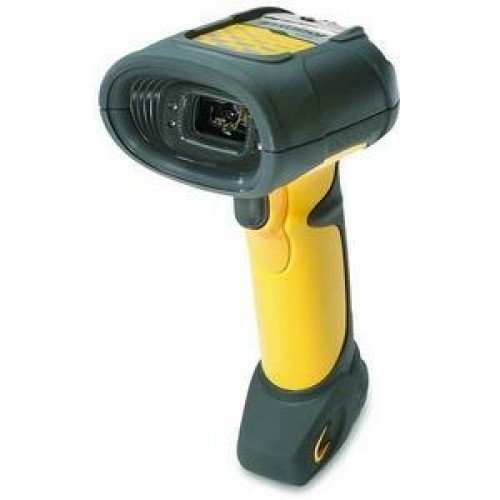

Symbol DS 3408 Barcode Scanner
Part #: DS3408-SFAR0200AR | SKU: 27715

The DS3400 Series industrial bar-code scanners from Symbol Technologies use digital imaging technology to accurately capture all types of two-dimensional (2D) and one-dimensional (1D) bar codes while offering the high performance typically found only in laser scanners. For capturing images and bar codes, the DS3408 is ideal. But if image capture and transfer capability is what you need, the DS3407 is perfect for today's applications, such as digital document storage and processing, as well as for image capture applications of the future.

Symbol DS 3408 Barcode Scanner

Part Details: DS 3408, Scanner (with RS-232 Cable and US Power supply)

Need a different version of the Symbol DS 3408 Barcode Scanner? View all 10 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	DS 3408
Product Condition	No
Specialty Encoding	None

DS 3408 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Barcode Dimension: 1D/2D
Resolution: 5 mil(s)
Symbologies Supported:
- UPC/EAN
- UPC/EAN Supplementals
- UCC/EAN 128
- JAN-13
- JAN-8
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Codabar (NW7)
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- Code 32
- Bookland EAN
- IATA
- UCC/EAN RSS
- UCC/EAN RSS Variants
- PDF 417
- Micro PDF-417
- MaxiCode
- DataMatrix
- Composite Code
- QR Code
- U.S. Planet
- U.S. Postnet
- U.K. Postal
- Japanese Post
- Australian Post
- Dutch Postal
Scanner Type: Laser
Interface Options:
- RS-232
- Keyboard Wedge
- Wand Emulation
- Scanner Emulation
- IBM 468X/469X
- USB
- Synapse
Interface Connectivity: Corded
Scan Pattern: Omnidirectional
Input Voltage: 5 V DC
Power Supply: External Included
Depth of Field: 1 - 14" - 100% UPC/EAN Symbols

General Information

Manufacturer: Motorola
Product Name: DS3408 Barcode Scanner

Physical Characteristics

Dimensions: 7.34" (186.44mm) x 4.82" (122.43mm) x x 2.93" (74.42mm)
Weight: 12.56 oz
Color:
- Black
- Yellow

Other

Package Contents:
- DS3408 Barcode Scanner
- 120 VAC North American Power Supply
- 9ft RS-232 Cable
Cables Included: RS-232

Environmental Conditions

Temperature:
- 32°F (0°C) to 122°F (50°C) Operating
- -40°F (-40°C) to 158°F (70°C) Storage
Humidity: 5 to 95% Non-condensing

Agency Approvals

Agency Approvals: RoHS Compliant
