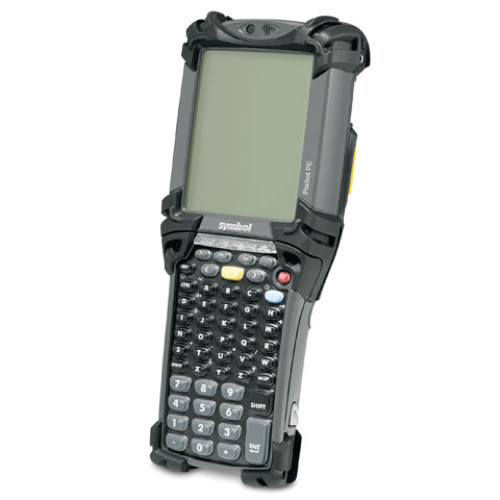

Symbol MC9000-K Mobile Computer

Physical and Environmental Characteristics

Dimensions:

9.2 in L x 3.6 in. W x 1.7 in. H
23.4 cm L x 9.1 cm H x 4.3 cm H

Weight:

22-25 oz., configuration-dependent

Keyboard:

28-, 43- and 53-key

Display:

Embedded CE models: 3.8 in. 1/4 VGA Mono or Color

Windows Mobile models:

3.8 in. 1/4 VGA Mono or Color

Power:

Removable, rechargeable 7.2 volt Lithium ion 2200 mAh, 15.8 watt hours

Performance Characteristics

CPU:

XScale PXA255 processor at 400 MHz

Operating System:

Microsoft Windows Embedded CE. NET or Windows Mobile 2003 with Pocket PC Phone Edition

Memory (RAM/ROM):

Embedded CE: 32/32 MB
Windows Mobile: 64/64 MB or 128/64 MB

Application Development:

SDK available through Symbol Developer Zone Web site

Data Capture Options:

1D laser scan engine
1D and 2D imaging engine omnidirectionally reads symbologies and captures grayscale images and signatures with intuitive laser aiming

User Environment

Operating Temperature:

Monochrome: -4 F° to 122° F (-20° C to 50° C)
Color: -4 F° to 122° F (-20° C to 50° C)

Storage Temperature:

-25° F to 160° F (-40° C to 70° C)

Humidity:

5% to 95% non condensing

Drop Spec:

Multiple drops to concrete: 6 ft. (1.8 m): -20° C to 50° C

Tumble:

2,000 one-meter tumbles at room temperature (4,000 drops)

Environmental Sealing:

IP64 (electronic enclosure, display and keypad)

ESD:

+/-15kVdc air discharge
+/-8kVdc direct discharge
+/-8kVdc indirect discharge

Wireless Data Communications

WLAN:

Symbol Spectrum24, 802.11b, 802.11

Output Power:

100 mW U.S. and international

Data Rate:

802.11b: 11 MB per second DS
802.11: 2 MB per second FH

Antenna:

Internal

Frequency Range:

Country-dependent; typically 2.4 to 2.5 GHz

PAN (Bluetooth Support):

Optional

WWAN:

GSM / GPRS and CDMA (1XRTT), Peripherals and Accessories

Cradles:

Single-slot serial/USB, vehicle, 4-slot Ethernet, 4-slot charge only

Printers:

Supports extensive line of Symbol-approved printers and cables

Charger:

Universal battery charger, 4-slot battery charger

Other Accessories:

Cable adapter module; snap-on magnetic stripe reader; modem module; holster; full set of cables; and user accessible SD card slot

Regulatory

Electrical Safety:

Certified to UL60950, CSA C22.2 No. 60950, EN60950/IEC 950

EMI/RFI Radio Versions:

North America: FCC Part 2 (SAR), FCC Part 15, RSS210 Class B, EN 301 489-1, 489-17

EMI/RFI Batch Versions:

EU: EN55022 Class B EN55024
Japan: CISPR 22, Class B
Australia: AS3548
North America: FCC Part 15, ICES 003 Class B

Laser Safety:

IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
