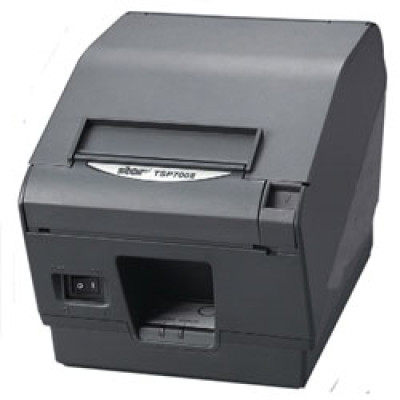

Star TSP743 Receipt Printer

SPECIFICATIONS - TSP700II

Printer Method

Direct Line Thermal

Print Speed

48 Receipts Per Minute (250 mm/sec)

Printer Case Color

Putty or Gray

Model Available

Auto Cutter Only

Print Resolution
(Vertical x Horizontal)

203x203 dpi, 406x203 dpi

No. of Columns

48 / 64 or 58 / 71 (Depends on Paper Width)
Includes 1st column print for lottery applications

Font Size

12 x 24

Character Set

ANK 95, 32 Int 128 Graphic

International Code Pages

Star Mode=40. ESC/POS= 6 + 1 blank allowing an additional character page to be added

Bar Codes

9 versions / PDF417, QR, Maxicode Options

Line Spacing

3 mm or 4 mm or programmable

Paper Specifications
Width

Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Black Mark Sensor
Paper Low
Maximum Print Width

80mm standard, 82.5 and 58mm with paper guide

0.065 ~ 0.15 mm
Up to 100 mm
"Drop-In & Print"
Standard
Standard
Standard
80mm paper = 72mm, 82.5mm paper = 80mm, 58mm paper = 52mm

Top Margin

13 mm minimum default (3mm selectable via Memory Switch Utility)

External Paper Feed Support

Yes

Auto Cutter

Guillotine (Full or Partial Cut Selectable)

Cover Open Sensor

Yes

Logo Store Capacity

2 Mbit Flash ROM with Graphic Management Software

Flash ROM

16 Mbit

Multiple Copy Support

N/A

Journal Capability

N/A

Label Support

Yes; Black timing marks between labels required

Power Supply

External; Requires PS60A External Power Supply

Drivers Available

Windows XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS, JavaPOS, USB Vendor Class, Linux, Mac OS X, StarIO SDK with support for iOS, Android and Blackberry

Digitally Signed (WHQL)

Yes

Swappable Interfaces

Yes

Connectivity

Serial, Parallel, USB, Powered USB, Ethernet, (WIFI available on special order, Call STAR), Virtual Serial Port to USB, Virtual Serial Port to Ethernet

Emulation Modes

Star Mode, ESC/POS

Peripheral Drive Circuit

2 circuits, (24V max. 1A), 1 Compulsion input

Power Consumption

Average 1.8 Amp. Printing, 0.15 Amp. Standby
Requires PS60A External Power Supply

Operating Conditions

Temperature: 5C to 45C
Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20C to 60C
Humidity: 10% - 90% RH

Dimensions
Weight

147 x 148 x 213 (w x h x d)mm
1.75 kg

Safety Standards

UL, C-UL, TA¬V, FCC, VCCI, EN55022, CE, Gost

Reliability MCBF
Auto Cutter

60 Million Lines
2 Million Cuts

Included with Printer

Installation CD with Drivers, Configuration Utility, and Value Add Utility modeled after futurePRNT Software, Wall Mount Bracket, Interface Cover, 58mm Paper Guide, Power Switch Cover

Warranty

Industry-Leading Full Coverage Bumper-to-Bumper Three Year Warranty

Options

External Power Supply (PS60A)
Splash Proof Cover (SPC-T700)
Kitchen Buzzer (BU01-24-A)
Vertical Stand (VS-T700)
Swappable Interfaces
24V Mobile Power Supply
Swap-A-Star Extended Warranty Program (US and Canada)

HARDWARE FEATURES AND BENEFITS - TSP700II

Ultra High Speed

Can print 48 six inch receipts per minute (250 mm/sec)

High Reliability

MCBF: 60 Million Lines

Ultra Reliable Guillotine Auto Cutter

MCBF: 2 Million Cuts

Small Foot Print

Save precious counter space

"Drop In & Print" Paper Loading

Clamshell design allows for very fast and easy paper loading

Swappable Interface Connections

Future interface upgrades are fast and simple to do. With swappable interfaces, there's no need to purchase a new printer just to upgrade the connection

Included Interface Cover

Helps protect cables from being damaged on the counter top

Horizontal or Vertical Orientation

Use the printer in the orientation that suits you best

Spill / Dust Proof Design

Foam inserts in the printer cavity, a new cover, and removable sticker over the rear feed slot are just some of the new features to help protect the printer and paper from damage from moisture or airborne debris

Rear Feed Slot

Use a larger paper roll mounted behind the printer by feeding it externally through the rear feed slot

Double Resolution Mode

Increase resolution to 406 x 203 dpi for beautifully crisp and clear graphics and bar codes

2D Bar Code Printing

2D bar codes store more information than traditional 1D types and replicate the data multiple times for better scanning reliability. PD417 and QR Code are supported

Wall Mountable

Need more counter space? Create more room by mounting the printer to the wall

Maintenance Counter

Keep track of how many times the auto cutter has cut and the distance that the print head has printed for hardware performance measurables

Digitally Signed Driver (WHQL)

Certified by Microsoft for worry free operation

Installation CD Included in Box

No need to download drivers or utilities

Innovative Value Add Receipt Design Software

Customize and brand receipts to keep customers coming back time and time again with professional graphics (logos, coupons, and merge images)

SOFTWARE FEATURES AND BENEFITS - TSP700II

Simple-to-Use Utilities

Included on Installation CD, free, easy to use

Partial futurePRNT Receipt Redesign Software

Quickly and easily add logos and coupons for professional receipt branding, Reverse Text for vertical orientation, and more!

Logo Utility

Store logos and other graphics for professional receipt branding

Memory Switch Utility

Fine-tune your print outs or print in different languages by enabling, changing, or disabling certain settings

Ethernet Interface Set Up Utility

Setting up and configuring an ethernet printer has never been more quick and easy!

OPTIONS AND ENHANCEMENTS - TSP700II

WiFi Power Pack

The Wifi Power Pack is designed to make any Star LAN interface printer "wireless". Powered by the printer's cash drawer kick port, the WiFi Power pack avoids additional power outlet, eliminating the possibility of tangled cables. The WiFi Power Pack includes a DK-USB power module and a TP Link wireless router.

Part Number: 99250000

External Power Supply
PS60A

The PS60A is a compact power supply that can be set beside or behind the printer or easily hidden away underneath a counter.

Part Number: 30781870

Splash Proof Cover
SPC-T700

The Splash Proof Cover helps to protect the TSP700II from liquid and airborne debris in harsh environments such as kitchens. It easily locks in place over the printer.

Part Number: 39570010

Vertical Stand
VS-T700

To save counter space, mount the TSP700II vertically using the Vertical Stand.

Part Number: 39590510

Kitchen Buzzer / Ticket Alarm
BU01-24-A

The Kitchen Buzzer is designed to connect directly to the RJ11 port on the back of the printer. When a print job is sent to the TSP700II, the buzzer will sound off. This is beneficial for high noise environments like kitchens to alert cooks that orders have been sent to them.

Part Number: 39594000

Swappable Interfaces

Easily upgrade the connection type in the future without purchasing a new printer.

Interfaces Available:

RS232C Serial - IFBD-HD03
Part Number: 39607200

Parallel - IFBD-HC03
Part Number: 39607211

USB - IFBD-HU05
Part Number: 39607510

Ethernet - IFBD-HE07
Part Number: 39607800

Mobile Power Supply

The Mobile Power Supply allows users to put the TSP700II into vehicle applications like printing law enforcement tickets, truck tickets, and more. It converts 12VDC into the required 24VDC to power the printer.

Swap-A-Star Extended Warranty

The Swap-A-Star Extended Warranty Program provides next business day replacement coverage available for a selectable span of 3 or 4 years.
