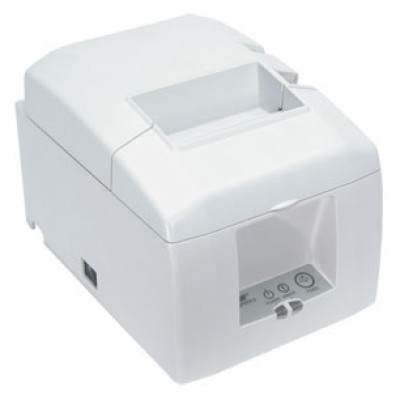

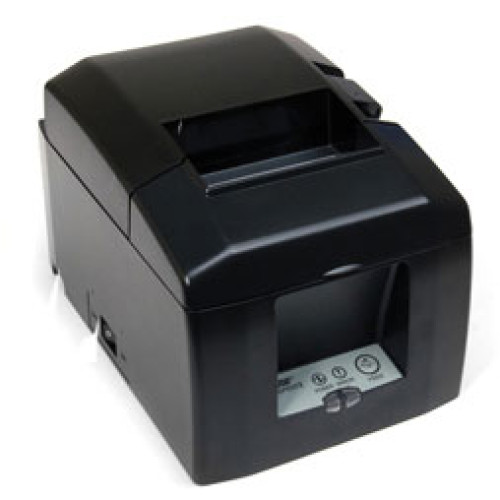

Star TSP650ii BTi Receipt Printer

SPECIFICATIONS - TSP650II BTi

Printer Method

Direct Line Thermal

Print Speed

60 Receipts Per Minute (300 mm/sec)

Print Resolution

203 dpi

No. of Columns

48 / 64

Font Size

9 x 24

Character Set

ANK 95, 32 Int 128 Graphic

International Code Pages

Star Mode=40. ESC/POS= 6 + 1 blank allowing an additional character page to be added

Bar Codes

9 versions / PDF 417 Option

Line Spacing

3 mm or 4 mm or programmable

Paper Specifications
Width

Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Paper Low Sensor
Maximum Print Width

80mm standard, Adjustable 58mm with paper guide

0.053 ~ 0.085 mm
Up to 83 mm
"Drop-In & Print"
Standard
Standard
80mm paper = 72mm, 58mm paper = 52mm

Top Margin

11 mm or 13 mm minimum default

Auto Cutter

Guillotine

Cover Open Sensor

Yes

Logo Store Capacity

2 Mbit Flash ROM with Graphic Management Software

Flash ROM

16 Mbit

Multiple Copy Support

Available through Star Raster Driver

Connectivity

Bluetooth

Emulation Modes

Star Mode, ESC/POS

Peripheral Drive Circuit

2 circuits, (24V max. 1A), 1 Compulsion input

Power Consumption

Average 1.8 Amp. Printing, 0.15 Amp. Standby
PS60A External Power Supply

Operating Conditions

Temperature: 5C to 45C
Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20C to 60C
Humidity: 10% - 90% RH

Dimensions
Weight:
Auto Cutter Model

142 x 132 x 202 (w x h x d)mm

TSP654 - 1.72 kg

Safety Standards

UL, C-UL, TA¬V, FCC, VCCI, EN55022, CE, Gost

Reliability MCBF
Print Head
Auto Cutter

60 Million Lines
100km
2 Million Cuts

Included with Printer

Wall Mount Bracket, Vertical Mount Accessory, 58mm Paper Guide, Power Switch Cover, Set Up Guide, Start Up Paper Roll, Power Supply

Warranty

3 Year Limited Manufacturer Warranty (US and Canada)

Options

Splash Proof Cover (SPC-T100)
Display Stand for Vertical Use (VS-T650)
Kitchen Buzzer (BU01-24-A)
Swap-A-Star Extended Warranty Program (US and Canada)
Extend-A-Star Extended Warranty Program (US and Canada)
