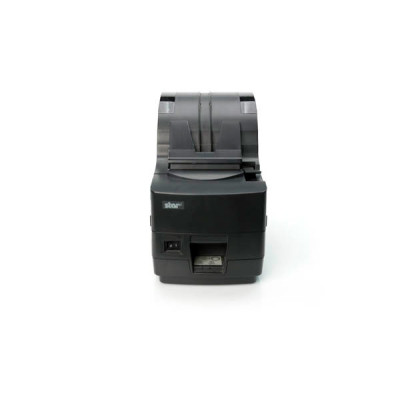

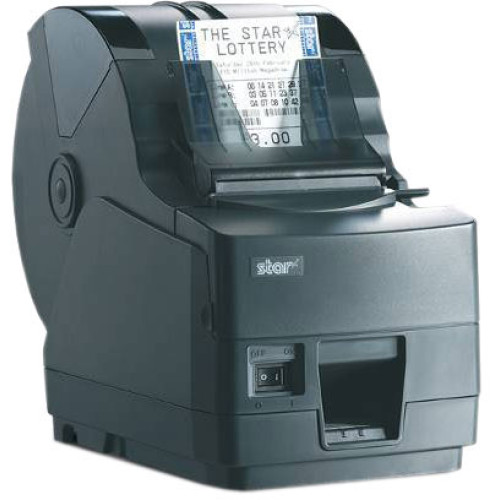

Star TSP1000 Receipt Printer
Star Receipt and Portable Printer

Star TSP1000 Receipt Printer

Star TSP1000 Receipt Printer

The Star TSP1000 supports up to a 7" diameter paper roll that is perfect for high-volume applications. The integrated ticket/document stacker aids in sorting multiple tickets/documents where batch printing is required. The TSP1000 also has a 203 dpi resolution, a 7" per second print speed and support for 2D bar codes.
Call For Price
See all options
TSP1000 Specs TSP1000 Specs (pdf)
SPECIFICATIONS
Printer Method Direct Linear Thermal
Print Speed 180 mm/sec or 56.7 lps (8 lines per inch)
Character Matrix 12 x 24 dots, 9 x 24 dots
Print Resolution 203 dpi (8 dots per mm)
Two Colour Print Capability Red & Black / Blue & Black (special paper required)
No. of Columns
 48 / 64 or 53 / 71 (depends on Paper Width) incl. 1st column print for lottery applications
Character Set ANK 95, 32 Int 128 Graphic
International Code Pages Star Mode=40. ESC/POS™= 6
1 blank allowing an additional character page to be added
Barcodes 9 versions / PDF 417, Maxicode Option (Pending)
Line Spacing 3 mm or 4 mm or programmable to 1/8mm
Line Speed 180 mm/sec
Paper Specifications
 Width

Thickness / Weight
Roll Diameter
Easy-Load
Paper End and Near End Sensor
44 - 82.5mm (variable).

0.08 ~ 0.15 mm / 80 ~ 150 gsm
180 mm
"Drop-In & Print"

Standard
Maximum Print Width


Top Margin

82.5 mm paper = 80 mm
Left / Right margin 0mm, 1st column print

11 mm minimum default

Autocutter (guillotine) Full cut
Position - approx.
Logo Store Star Line Mode & ESC/POS™ mode - 440K
Star Page Mode - 248K
Flash ROM 2 x 8Mbit Flash Rom's
Drivers available High Speed Scalable Raster Graphics Driver
Windows 95/98/ME, NT 4.0, Win 2000, Windows XP, OPOS, JAVA-POS
Linux CUPS Support, Apple MAC (contact Star)
Interface Serial, Parallel or USB as standard.
Ethernet & WiFI options (contact Star for details)
Emulation Star Line Mode & Page Mode & ESC/POS
Peripheral Drive Circuit   2 circuits, (24V max. 1A)
No Compulsion input
Power Consumption  Operating / Waiting - Average 1.5 / 0.3A
Operating Conditions Temperature: 5°C to 45°C
Humidity: 10% - 90% RH (without condensation)
Storage Conditions Temperature: 5°C to 45°C
Humidity: 10% - 90% RH
Dimensions / Weight 161W x 306.5D x 249H mm / 3.1 Kg
Safety Standards UL, C-UL, TüV, FCC, VCCI, EN55022, CE
Reliability

Autocutter		 60 million lines (CRT MCBF)
20 million lines (Traditional)
1 million cuts MCBF
(0.065 - 0.1 mm paper)
Options

Ethernet Interface
WiFI (contact Star for details)
Extended Details
Refine Your Options
  1. Star TSP1000 Receipt Printer

    Star TSP1000 Receipt Printer
    Part #: 39462010 | SKU: STA34482

    Receipt Printer - Star TSP1000 - Thermal - Cutter - Serial - 40 Columns - 7 ips - 82.5mm (3.25-inch) Max Paper Width - Gray - Large Roll Capacity - Slip Stacker. Requires Power Supply Sold Separately (Part# 30781753). Interface Cable Sold Separately. NCNR. Also Known As: TSP1043D-24GRY
    Price: $669.00
  2. Star TSP1000 Receipt Printer

    Star TSP1000 Receipt Printer
    Part #: 39460010 | SKU: STA34488

    Receipt Printer - Star TSP1000 - Thermal - Cutter - Parallel - 40 Columns - 7 ips - 82.5mm (3.25-inch) Max Paper Width - Gray - Large Roll Capacity - Slip Stacker. Requires Power Supply Sold Separately (Part# 30781753). Interface Cable Sold Separately. Also Known As: TSP1045C-24 GRY
    Price: $669.00
  3. Star TSP1000 Receipt Printer

    Star TSP1000 Receipt Printer
    Part #: 39460110 | SKU: STA34490

    Receipt Printer - Star TSP1000 - Thermal - Cutter - Serial - 40 Columns - 7 ips - 80mm (3.15-inch) Max Paper Width - Gray - Large Roll Capacity - Slip Stacker. Requires Power Supply Sold Separately (Part# 30781753). Interface Cable Sold Separately. Also Known As: TSP1045D-24 GRY
    Price: $669.00
  4. Star TSP1000 Receipt Printer

    Star TSP1000 Receipt Printer
    Part #: 37998900 | SKU: STA34492

    Receipt Printer - Star TSP1000 - Thermal - Cutter - Ethernet - 40 Columns - 7 ips - 82.5mm (3.25-inch) Max Paper Width - Gray - Large Roll Capacity - Slip Stacker. Requires Power Supply Sold Separately (Part# 30781753). Interface Cable Sold Separately. Also Known As: TSP1045L-24 GRY
    Price: $943.00
  5. Star TSP1000 Receipt Printer

    Star TSP1000 Receipt Printer
    Part #: 37998880 | SKU: STA34484

    Receipt Printer - Star TSP1000 - Thermal - Cutter - Ethernet - 40 Columns - 7 ips - 80mm (3.15-inch) Max Paper Width - Gray - Large Roll Capacity - Slip Stacker. Requires Power Supply Sold Separately (Part# 30781753). Interface Cable Sold Separately. Also Known As: TSP1043L-24 GRY
    Price: $943.00
  6. Star TSP1000 Receipt Printer

    Star TSP1000 Receipt Printer
    Part #: 39460100 | SKU: STA34489

    Receipt Printer - Star TSP1000 - Thermal - Cutter - Serial - 40 Columns,7 ips - 82.5mm (3.25-inch) Max Paper Width - Putty - Large Roll Capacity - Slip Stacker. Requires Power Supply Sold Separately (Part# 30781753). Interface Cable Sold Separately. Also Known As: TSP1045D-24
    MSRP: $885.00 Price: $546.36
  7. Star TSP1000 Receipt Printer

    Star TSP1000 Receipt Printer
    Part #: 39462411 | SKU: STA111325

    Receipt Printer - Star TSP1000 - Thermal - Cutter - USB - 40 Columns - 7 ips - 80mm (3.15-inch) Max Paper Width - Gray - Large Roll Capacity - Slip Stacker. Requires Power Supply Sold Separately (Part# 30781753). Also Known As: TSP1043U-24GRY. Replaces (Part# 39462410)
    Price: $734.00
  8. Star TSP1000 Receipt Printer

    Star TSP1000 Receipt Printer
    Part #: 37998870 | SKU: 34483

    Thermal, Friction, Cutter, Ethernet (LAN), Putty, 80 mm Paper, Large Roll Capacity, Slip Stacker, Ext PS
  9. Star TSP1000 Receipt Printer

    Star TSP1000 Receipt Printer
    Part #: 37998890 | SKU: 34491

    Thermal, Friction, Cutter, Ethernet (LAN), Putty, 82.5 mm Paper, Large Roll Capacity, Slip Stacker, Ext PS
  10. Star TSP1000 Receipt Printer

    Star TSP1000 Receipt Printer
    Part #: 39460211 | SKU: 34494

    Thermal, Friction, Cutter, USB, Gray, 82.5 mm Paper, Large Roll Capacity, Slip Stacker, Ext PS

Items 1 to 10 of 28 total

Page:
  1. 1
  2. 2
  3. 3

Recommended Accessories for Model: Star TSP1000 Receipt Printer

  • Star TSP1000 Accessory
    Part #: 39607910 | SKU: STA231500

    Interface Board - Star - USB. Compatible with TSP1000 - SP500 - SP700 - HSP7000 - TUP900 Series. Replaces (Part# 39607610). Also Known As: IFBD-HU08
    Price: $54.00

  • Star TSP1000 Accessory
    Part #: 37967820 | SKU: STA579080

    Stand - Star - Black. Compatible with TSP100III - TSP650II. NCNR. Also Known As: mUnite-POS BLK
    Price: $335.00

  • Star TSP1000 Printhead
    Part #: 37469030 | SKU: STA29216

    Printhead - Star - Compatible with TSP100
    MSRP: $35.50 Price: $32.43

  • Star TSP1000 Power Device
    Part #: 37995310 | SKU: STA23470

    Power Adapter - Star - Automotive Adapter - 12V to 24V Cigarette Lighter. Compatible with TSP and FVP Series (Excludes TSP100). NCNR. Also Known As: AUTOMOTIVE 24V PWR ADAPT (ST2425-626)
    Price: $207.00

  • Star TSP1000 Accessory
    Part #: 32010370 | SKU: STA222039

    Mount - Star - Wall Type Chassis. Compatible with TSP100 Series - TSP650 - TSP700 Series
    Price: $29.08
View All Options

Recommended Receiptpapers for Model: Star TSP1000 Receipt Printer

  • Star TSP1000 Receipt Paper
    Part #: 37966510 | SKU: 456618

    Receipt Paper - Star - 3.14"(80mm) x 950'(290M) - White - Blue Core - 8 Rolls Per Case - MOQ: 20 Cases. Priced Per Case. Also Known As: TRF80-D150-C25 8PK. Compatible With: TUP500 - TSP1000
    Price: $157.00

  • Star TSP1000 Receipt Paper
    Part #: 37966860 | SKU: STA584016

    Receipt Paper - Star - 3.14"(80mm) x 480' - White - Blue Core - 12 Rolls Per Case. Priced Per Case. Also Known As: TRF80-D120-C25 MG 12PK. Compatible With: SK1-31A L - SK1-V31A L - SK1-311 L with Presenter
    Price: $120.00

  • AirTrack Premier Receipt Paper
    Part #: RPT3.125-230-CASE | SKU: AIR496270

    THERMAMARK - THERMAL RECEIPT PAPER - CONSUMABLES - 3.125"(80MM)X 230'(70.1MM) - 0.4375" CORE - 2.85"(72.39MM) Outside Diameter - BPA FREE - WHITE - 50 Rolls per Case - PRICED PER CASE
    Price: $120.52

  • AirTrack Premier Barcode Label
    Part #: RPT3.125-STD | SKU: AIR17983

    Thermal receipt paper - 3.125" x 230' - 2.75" outer diamter - 7/16" core - Singel roll

  • AirTrack Premier Barcode Label
    Part #: RPT3.125-STD-CASE | SKU: AIR188129

    Thermal receipt paper - 3.125" x 230' - 2.75" outer diamter - 7/16" core - 50 roll case
View All Options
