Star TSP654 Receipt Printer Star TSP654 Receipt Printer Star TSP654 Receipt Printer
Star Receipt and Portable Printer

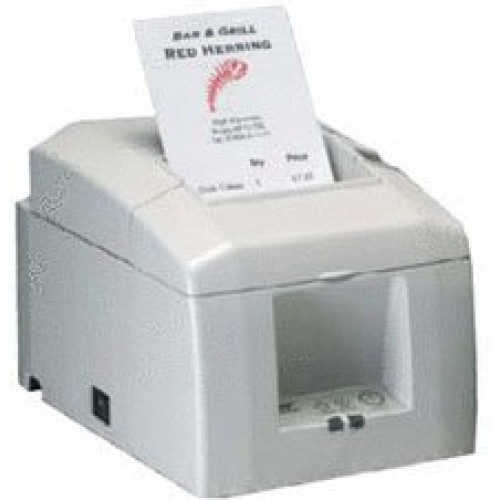

Star TSP654 Receipt Printer
Part #: 39449660 | SKU: 231586

The Star TSP654 boasts valuable features like an auto-cutter, low cost and high performance combined with the ability to work effectively in any environment. Out of the box, the TSP654 can easily be configured in Star Line or ESC/POS emulation mode and features a wide variety of interface options including USB and Ethernet due to its plug-in modules. New vertical mount stand and splash proof cover options help make it one of the most reliable POS printers in the world.

Star TSP654 Receipt Printer

Part Details: TSP650 Series: TSP654, Thermal printing, Auto-cutter, USB interface. Cables sold separately. Color: White.
Need a different version of the Star TSP654 Receipt Printer? View all 17 configurations

Additional Information

Color No
Cutter Option No
Form Factor No
Interface USB
Magstripe Option No Magstripe
Manufacturer No
Model Name TSP654
Paper Dimension 3.125
Print Method Thermal
Print Speed No
Print Width 3.15 inches
Product Condition No
TSP654 Specs TSP654 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 11.81 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 3.15"
  • Recommended Use: Receipt Print
  • Features:
    • Cutter
    • Horizontal Printing
    • Vertical Printing
  • Barcode Symbology Supported: PDF-417

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: TSP650II
  • Brand Name: Star Micronics
  • Manufacturer: Star Micronics, Inc
  • Product Model: TSP654II
  • Product Name: TSP654II Receipt Printer

Physical Characteristics

  • Height: 5.2"
  • Width: 5.6"
  • Depth: 8"
  • Form Factor: Wall Mount
  • Weight (Approximate): 3.79 lb

Interfaces/Ports

  • USB: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • ENERGY STAR
    • RoHS
  • Platform Supported: PC
  • Package Contents:
    • TSP654II Receipt Printer
    • Installation CD (Printer Driver / Manuals)
    • Wall Mount Bracket
    • Vertical Mount Accessory
    • 58mm Paper Guide
    • Power Switch Cover
    • Set Up Guide
    • Start Up Paper Roll
    • Power Supply
    • TSP654II Receipt Printer
    • Installation CD (Printer Driver / Manuals)
    • Wall Mount Bracket
    • Vertical Mount Accessory
    • 58mm Paper Guide
    • Power Switch Cover
    • Set Up Guide
    • Start Up Paper Roll
    • Power Supply
  • Certifications & Standards:
    • UL
    • C-UL
    • TüV
    • FCC
    • VCCI
    • EN55022
    • CE
    • Gost

Media Types & Handling

  • Maximum Label Width: 3.15"
  • Media Type: Receipt
  • Media Thickness: 3.35 mil
  • Media Sensor:
    • Out Of Paper Sensor
    • Cover Open Sensor
  • Maximum Roll Diameter: 3.27"

Power Description

  • Input Voltage: 24 V DC
  • Power Source: Power Adapter

Fonts & Emulation

  • Language Emulation: ESC/POS

Warranty

  • Limited Warranty: 3 Year

Cutter

  • Cutting Method: Automatic

Memory

  • Flash Memory: 16 MB
Extended Details
