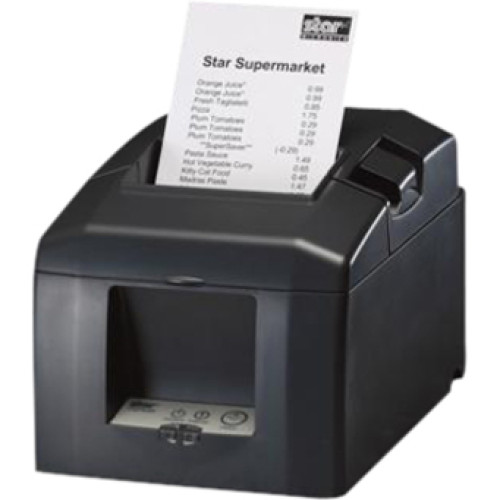

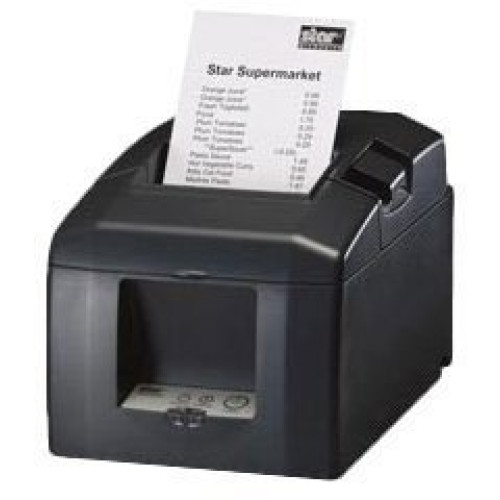

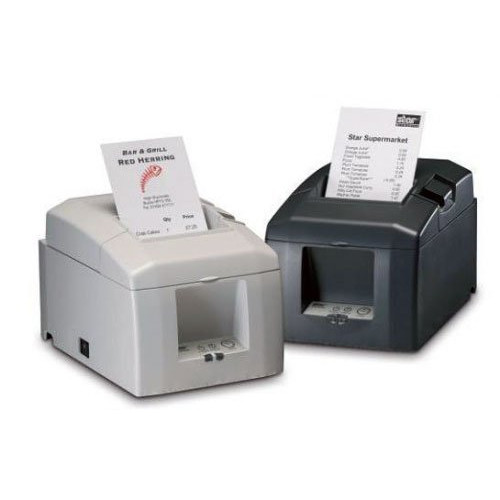

Star TSP654SK Receipt Printer
Part #: 37963030 | SKU: 123686

The Star TSP654SK features low cost and high performance combined with the ability to work effectively in any environment, plus the ability to use liner-free labels. Out of the box, the TSP654SK Liner-Free Printer can easily be configured and features all interface options including USB and Ethernet due to its plug-in modules. New vertical mounting stand and splash proof cover options help make it one of the most reliable POS printers in the world. The TSP654SK ships with Installation CD (Printer Driver / Manuals), setup guide, wall mount bracket, vertical mount pads, 58mm paper guide, power switch cover and start-up paper roll. With its drop in and print paper loading, small footprint and reliable guillotine cutter, the TSP654SK is a welcomed addition to POS systems.

Star TSP654SK Receipt Printer

Part Details: TSP650 Series: TSP654SK, Liner-free thermal printer for sticky paper, Ethernet, 58 or 80 mm paper, cutter, gray external power supply included. Also known as TSP654L GRY SK-US.

Need a different version of the Star TSP654SK Receipt Printer? View all 4 configurations

Additional Information

Application	No
Cutter Option	No
Form Factor	No
Interface	Ethernet
Magstripe Option	No Magstripe
Manufacturer	No
Model Name	TSP654SK
Print Method	Thermal
Print Speed	No
Print Width	3.15 inches
Product Condition	No

TSP654SK Specs (pdf)

Technical Information

Maximum Mono Print Speed: 5.91 in/s
Maximum Print Resolution: 203 dpi
Print Color: Monochrome
Number of Columns: 64
Maximum Print Width: 2.83"
Recommended Use: Label Print
Features: Cutter
Barcode Symbology Supported: PDF-417

General Information

Product Type: Direct Thermal Printer
Brand Name: Star Micronics
Manufacturer: Star Micronics, Inc
Product Model: TSP654SK
Product Name: TSP654SK Label Printer

Physical Characteristics

Height: 5.2"
Width: 5.6"
Depth: 8"
Form Factor: Desktop
Weight (Approximate): 3.79 lb
Color: Gray

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Platform Supported:
- PC
- Mac
Package Contents:
- TSP654SK Label Printer
- Software CD
- Power Supply
- Wall Mount Bracket
- Vertical Mount Accessory
- 58mm Paper Guide
- Power Switch Cover
- Set Up Guide
- Start Up Paper Roll
- TSP654SK Label Printer
- Software CD
- Power Supply
- Wall Mount Bracket
- Vertical Mount Accessory
- 58mm Paper Guide
- Power Switch Cover
- Set Up Guide
- Start Up Paper Roll
Certifications & Standards:
- UL
- C-UL
- TüV
- FCC
- VCCI
- EN55022
- CE
- Gost

Media Types & Handling

Maximum Label Width: 3.15"
Media Type:
- Thermal Paper
- Label
Media Thickness: 3.15 mil

Network & Communication

Ethernet: Yes
Ethernet Technology: Ethernet

Power Description

Input Voltage: 24 V DC
Power Source: Power Adapter

Fonts & Emulation

Language Emulation: ESC/POS

Warranty

Limited Warranty: 3 Year

Cutter

Cutting Method: Automatic

Memory

Flash Memory: 2 MB

Extended Details
