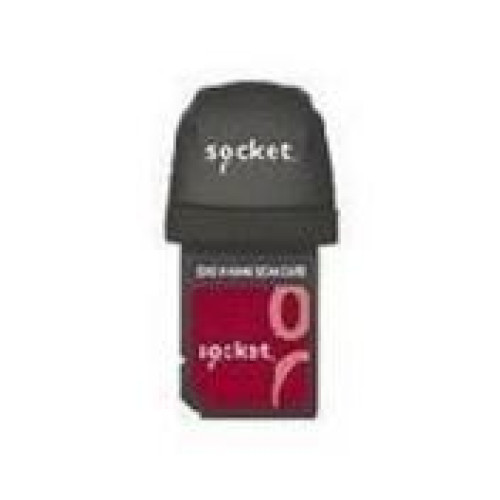

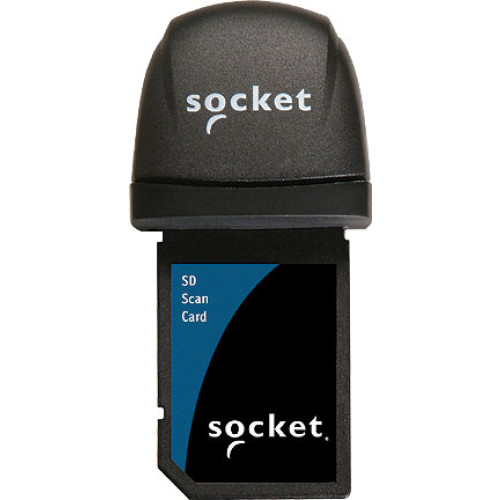

Socket Mobile SD Scan Card 3E Spare Parts
Part #: IS5300-464 | SKU: 26849

The SD Scan Card 3E from Socket adds affordable barcode scanning to your Pocket PC or Palm device. Based on miniature Linear CMOS Imaging technology from Symbol Technologies, the SD Scan Card 3E scans all popular linear barcode symbologies and uses only 57mA of power during scanning to maximize battery life. The device requires no extra batteries or special power adapters, since it draws power from the host hand-held mobile device. SocketScan keyboard emulation software sends decoded data to any Windows or Palm applications as virtual keystrokes.

Socket Mobile SD Scan Card 3E Spare Parts

Part Details: Socket Communications SDSC 3E Bar Code Reader - DISCONTINUED - Docking - CMOS

Need a different version of the Socket Mobile SD Scan Card 3E Accessory? View all 2 configurations

Additional Information

Manufacturer	No
Model Name	SD Scan Card 3E
Product Condition	No

SD Scan Card 3E Specs (pdf)

Technical Information

Form Factor: Modular Scanner
Symbologies Supported:
- Code 128
- Code 39
- UPC/EAN/JAN
- Codabar
- Code 93
- MSI/PLESSEY
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 11
- Webcodes
Scanner Type: Laser
Interface Options: Docking
Input Voltage: 3.3 V DC
Depth of Field:
- 2.25 - 4.5"@6mils
- 1.75 - 6.25"@7.5mils
- 1.25 - 7.5"@10mils
- 2 - 8.5"@13mils
- 2.2 - 12"@20mils
- 4.3 - 24"@55mils

General Information

Manufacturer: Socket Communications
Product Name: Secure Digital Scan Card 3E

Physical Characteristics

Weight: 0.26 oz

Agency Approvals

Agency Approvals:
- FCC: Part 15, Class B
- CE: EN55024:1998
- CE C-TICK s.182

Other

Package Contents:
- Secure Digital Scan Card 3E
- SocketScan Software
- Installation utility

Warranty

Manufacturer Warranty: 3 Year(s)

Extended Details
