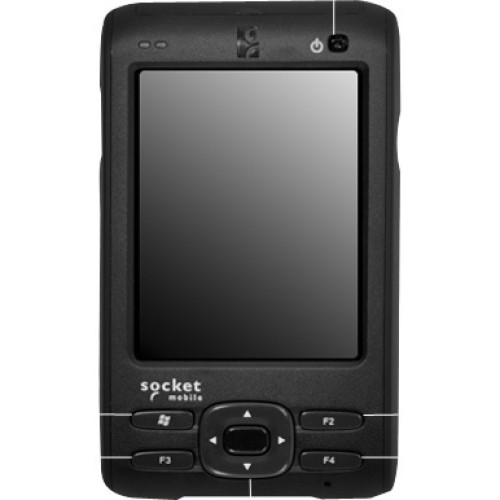

Socket Mobile SoMo 655 Mobile Computer
Part #: HC2002-1387 | SKU: 176426

The SoMo 655 is a durable, high performance mobile computer that enables businesses to increase productivity of mobile workers, improve visibility in the field, and automate manual processes anywhere.

Socket Mobile SoMo 655 Mobile Computer

Part Details: WINDOWS EMBEDDED HANDHELD 6.5, 4GB, 2600MAH BATTERY, MULTI-LANGUAGES, NO OFFICE MOBILE, SYNC CABLE, AC ADAPTER#N/A

Need a different version of the Socket Mobile SoMo 655 Mobile Computer? View all 7 configurations

Additional Information

Data Collection Type	Wireless
Manufacturer	No
Model Name	SoMo 655
Network Connectivity	802.11n, Bluetooth
Operating System	No
Product Condition	No
Scanner Type	No Scanner
Style	No

SoMo 655 Specs (pdf)

General Information

Product Type: Handheld Terminal
Brand Name: Socket
Manufacturer: Socket Mobile, Inc
Product Model: 655
Product Name: SoMo 655 Handheld Terminal
Product Line: SoMo

Technical Information

Connectivity Technology: Wireless
Electrostatic Discharge (ESD):
- +/-8 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
Drop Specification: 39.37" To Concrete

Physical Characteristics

Height: 5"
Width: 2.9"
Depth: 1"
Weight (Approximate): 7.20 oz

Interfaces/Ports

USB: Yes

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- WEEE
- RoHS
Package Contents:
- SoMo 655 Handheld Terminal
- Extended Battery
- SoMo 655 Handheld Terminal
- Extended Battery
Certifications & Standards:
- FCC: Part 15, Class B
- EN301 489-1
- EN301 489-17
- EN61000-4-2 : 1995
- EN61000-4-3: 1997
- EN61000-4-4: 1995
- EN61000-4-5: 1995
- EN61000-4-6: 1
- CE: EN
- Electrical Safety:
- EN60950
- UL
- CSA

Memory

Flash Memory: 4 GB
Standard Memory: 128 MB
Maximum Memory Card Size Supported: 32 GB
Memory Card Slot: Yes
Memory Card Supported:
- microSD Card
- CompactFlash (CF) Card

Display & Graphics

Display Screen Type: LCD
Backlight Technology: LED
Screen Mode: QVGA
Screen Size: 3.5"
Display Color: Color
Screen Resolution: 240 x 320

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11b/g/n

Touchscreen Information

Touchscreen: Yes
Touchscreen Type: Resistive

Processor & Chipset

Processor Speed: 624 MHz
Processor Type: XScale PXA270M

Battery Information

Battery Capacity: 2600 mAh
Battery Chemistry: Lithium Ion (Li-Ion)

Software

Operating System: Microsoft Windows Embedded Handheld 6.5

Warranty

Limited Warranty: 1 Year

I/O Expansions

Expansion Slot Type: CompactFlash (CF)

Extended Details
