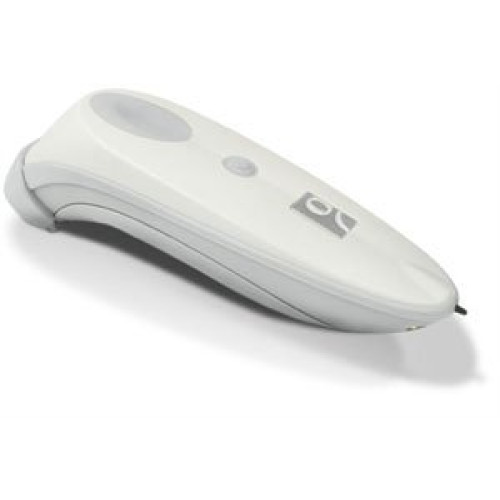

Socket Mobile Cordless Hand Scanner 7XiRx Barcode Scanner
Part #: CX2867-1339 | SKU: 142209

The Socket-Mobile Cordless Hand Scanner 7XiRx takes 2D bar code scanning to another level delivering superior high-density scanning performance and long-range Bluetooth all in a pocket-sized, ergonomic, and extra durable enclosure. The Cordless Hand Scanner 7XiRx is designed specifically for the healthcare industry because is built with microbial materials. The Bluetooth feature on the Cordless Hand Scanner 7XiRx is secure and allows for long-range connections that go up to 330ft/100m. This device also comes equipped with an omni-directional imager which reads 2D & 1D barcodes in any direction and can also scan barcodes being displayed on LCD screens. The Cordless Hand Scanner 7XiRx also supports multiple platforms like Apple iOS, Android, Blackberry and Windows.

Socket Mobile Cordless Hand Scanner 7XiRx Barcode Scanner

Part Details: Socket 7XiRx Handheld Barcode Scanner - DISCONTINUED - Wireless Connectivity - 16 Scan Distance - 1D, 2D - Imager - Omni-directional - Bluetooth - White

Need a different version of the Socket Mobile Cordless Hand Scanner 7XiRx Barcode Scanner? View all 2 configurations

Additional Information

Connectivity	No
Form Factor	No
Included Cables	USB
Manufacturer	No
Model Name	Cordless Hand Scanner 7XiRx
Product Condition	No
Scan Pattern	No
Scanner Capability	2D
Scanner Type	No
Specialty Encoding	None

Cordless Hand Scanner 7XiRx Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Omni-directional
Connectivity Technology: Wireless
Scanning Distance: 16"
Image Sensor: Imager
Barcode Symbology Supported:
- 1D:
- Bookland EAN (ISBN / EAN-13)
- Codabar (including ISBT 128 bit concatenation)
- Code 11
- Code 128
- Code 39
- Code 93
- Discrete 2 of 5
- GS1 DataBar (RSS)
- GS1-128 (UCC-128/EAN-128)
- Interleaved 2 of 5 (ITF-14)
- MSI
- Plessey
- UPC/EAN
- 2D:
- Aztec
- Codablock
- Data Matrix
- GS1 (EAN.UCC)
- Matrix 2 of 5
- Maxicode
- PDF 417/ Macro PDF 417/ Micro PDF 417
- QR Code
- Standard 2 of 5
- Telepen
- TLCode 39
- Postal:
- Australia Post
- BPO 4
- Canada Post
- Dutch Post (KIX)
- Japan Post
- Planet
- Postnet
- RM4SCC
- Sweden Post
- TLCode 39
- 4 State Code
- USPS Intelligent Mail
- 1D:
- Bookland EAN (ISBN / EAN-13)
- Codabar (including ISBT 128 bit concatenation)
- Code 11
- Code 128
- Code 39
- Code 93
- Discrete 2 of 5
- GS1 DataBar (RSS)
- GS1-128 (UCC-128/EAN-128)
- Interleaved 2 of 5 (ITF-14)
- MSI
- Plessey
- UPC/EAN
- 2D:
- Aztec
- Codablock
- Data Matrix
- GS1 (EAN.UCC)
- Matrix 2 of 5
- Maxicode
- PDF 417/ Macro PDF 417/ Micro PDF 417
- QR Code
- Standard 2 of 5
- Telepen
- TLCode 39
- Postal:
- Australia Post
- BPO 4
- Canada Post
- Dutch Post (KIX)
- Japan Post
- Planet
- Postnet
- RM4SCC
- Sweden Post
- TLCode 39
- 4 State Code
- USPS Intelligent Mail

General Information

Product Type: Handheld Barcode Scanner
Product Series: 7
Brand Name: Socket
Manufacturer: Socket Mobile, Inc
Product Model: 7XiRx
Product Name: 7XiRx Handheld Barcode Scanner

Physical Characteristics

Height: 5.2"
Width: 1.8"
Depth: 1.5"
Weight (Approximate): 2.40 oz

Other

Platform Supported:
- PC
- Mac

Battery Information

Number of Batteries Supported: 1
Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

Bluetooth: Yes

Extended Details

Recommended Accessories for Model: Socket Mobile Cordless Hand Scanner 7XiRx Barcode Scanner

Socket Mobile SoMo 650 Accessory
Part #: AC4058-1415 | SKU: 168007

AC Power Supply - Includes USB Charging Cable - Compatible with Socket CHS 7C, 7Ci, 7E, 7M, 7P, 7X, 7Xi, 7XiRx, 7XRx
Socket Mobile SoMo 650 Accessory
Part #: AC4051-1192 | SKU: 85325

Socket CHS Series 7 USB A Male to DC Plug Charging Cable - For Scanner - 2 A
Socket Mobile SoMo 650 Spare Parts
Part #: AC4056-1383 | SKU: 157174

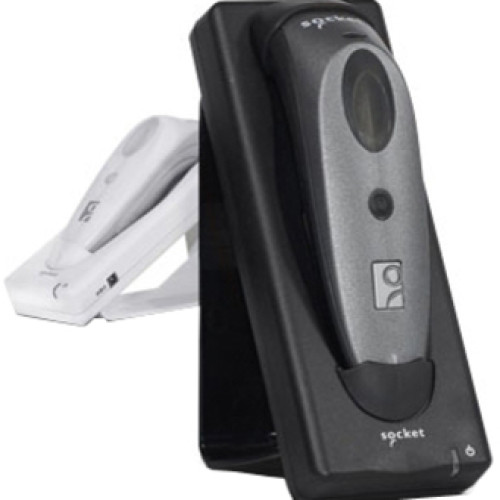

Socket Charging Cradle w/Latch & AC Adapter for 7DiRx/7XiRx (White-Antimicrobial) - Wired - Bar Code Scanner - Charging Capability - White
