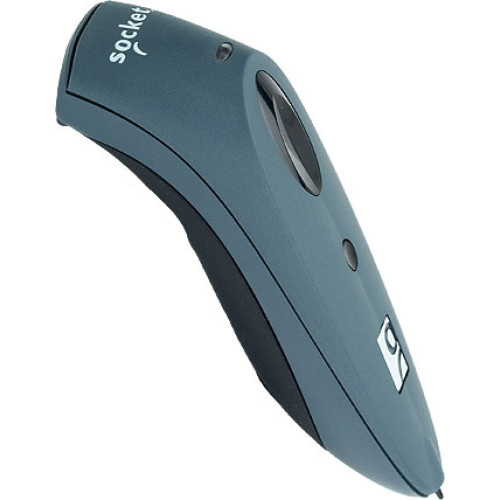

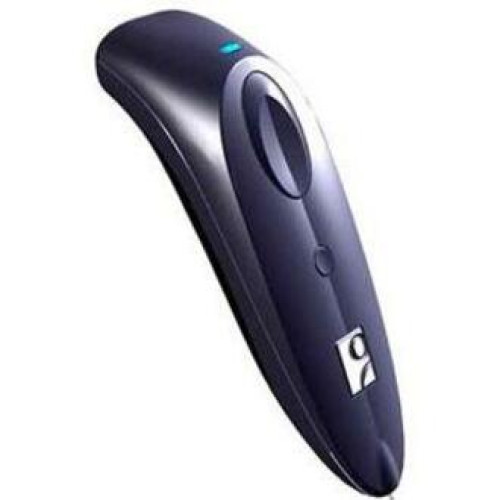

Socket Mobile Cordless Hand Scanner 7M Barcode Scanner
Part #: CX2800-489 | SKU: 26860

Socket's Cordless Hand Scanner 7M is a mid-level scanning solution that sends barcode data wirelessly via a Class-1 Bluetooth radio to any Bluetooth-enabled device, such as a Pocket PC, notebook, Pen Tablet, RIM, Palm PDA, Symbian Smart Phone or BlackBerry. The scanner features a Class-1 laser with Fuzzy Logic scanning for damaged, poor quality or hard-to-read barcode labels. Cordless Hand Scanner 7M features a powerful Class-1 Bluetooth radio that enables connections at a range of 300 feet (100 m), even when connected to the weaker Class 2 Bluetooth radios found in many mobile computers. SocketScan software directs scanned data into any mobile software as if it were manually typed, so the Cordless Hand Scanner 7M interfaces with your favorite applications with out any programming.

Socket Mobile Cordless Hand Scanner 7M Barcode Scanner

Part Details: Socket CX2872-1411 - CHS 7Mi, iOS, Android, C2 Laser, Gray-Antimicrobial with Batteries, AC Adapter, Charging Cable, Lanyard - REPLACEMENT - Wireless

Need a different version of the Socket Mobile Cordless Hand Scanner 7M Barcode Scanner? View all 4 configurations

Additional Information

Included Cables	USB
Manufacturer	No
Model Name	Cordless Hand Scanner 7M
Product Condition	No
Specialty Encoding	None

Cordless Hand Scanner 7M Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Symbologies Supported:
- Code 39
- UPC/EAN
- MSI
- Code 128
- Code 93
- Codabar
- Interleaved 2 of 5
- Discrete 2 of 5
- RSS-14
Scanner Type: Laser
Scan Rate: 50 scans/sec
Interface Options: Bluetooth
Interface Connectivity: Cordless
Cordless Range: 100m
Scan Pattern:
- Bi-directional
- Bi-Directional
Power Supply: Internal Battery
Depth of Field:
- 2 - 4.5"@5mils
- 2 - 6.8"@7.5mils
- 2 - 8.5"@10mils
- 2 - 12.1" - 100 % UPC
- 13"@20mils
- 14"@40mils
- 12"@55mils

General Information

Manufacturer: Socket Communications
Product Name: Cordless Hand Scanner 7M

Physical Characteristics

Dimensions: 1.2" (30.48mm) x 1.4" (35.56mm) x 4.9" (124.46mm)
Weight: 90 g - Approximately

Agency Approvals

Agency Approvals:
- FCC: Part 15, Class B
- CE: EN55024:1998
- C-TICK: s.182
- ETS 300 328
- ETS 300 826

Other

Package Contents:
- Cordless Hand Scanner 7M
- SocketScan Software

Environmental Conditions

Temperature: 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
Humidity: 5 to 95% Non-condensing

Warranty

Manufacturer Warranty: 2 Year(s)
