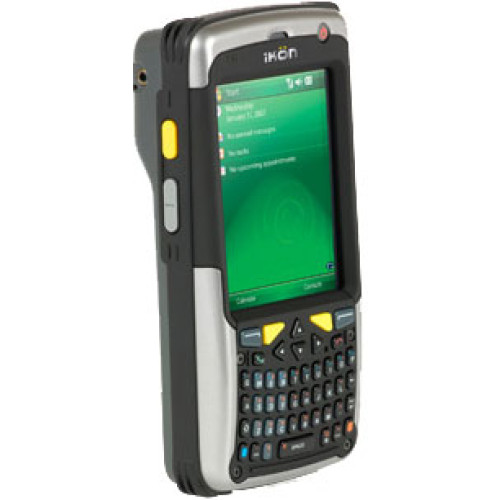

Psion Teklogix Ikon 7505 Mobile Computer
Part #: IKON111212133110 | SKU: 90879

The Psion-Teklogix Ikon 7505 integrates data capture, voice and data communications in one compact device. Wireless capability includes WiFi, cellular 3G HSDPA and Bluetooth connectivity. And GPS harnesses the power of location-based apps. Mobile workers love the Ikon 7505 because it's built on the principles of Natural Task Support, which helps them get the job done faster and more comfortably. The 3.7-inch full VGA display makes it incredibly easy to read even complex graphics and CAD drawings in low-light situations. The ergonomic keypad is designed for one-hand use with clear, unambiguous feedback. The Ikon 7505 withstands drops from 5 feet (1.5m) to polished concrete.

Psion Teklogix Ikon 7505 Mobile Computer

Part Details: Ikon 7505, Windows Mobile 6.X Pro, 802.11, Bluetooth, HSDPA/GPS, 1D Imager, 2.0 Camera, QKB

Need a different version of the Psion Teklogix Ikon 7505 Mobile Computer? View all 18 configurations

Additional Information

Data Collection Type	Wireless
Drop Rating	No
IP Rating	No
Manufacturer	No
Model Name	Ikon 7505
Network Connectivity	Bluetooth
Operating Temperature	No
Processor	624 MHz Intel XScale
Product Condition	No
RAM Memory	No
Scanner Capability	1D
Scanner Type	No
Style	No

Ikon 7505 Specs (pdf)

Technical Information

Connectivity Technology: Wireless
Image Sensor: Imager
Electrostatic Discharge (ESD):
- +/-8 kV DC Air Discharge
- +/-4 kV DC Contact Discharge
Drop Specification: 59.06" To Concrete
Barcode Symbology Supported: 1D

General Information

Product Type: Handheld Terminal
Brand Name: PSION
Manufacturer: Psion Teklogix, Inc
Product Model: 7505
Product Name: Ikon - The Versatile, Rugged PDA
Product Line: Ikon

Physical Characteristics

Height: 6.3"
Width: 3.2"
Depth: 1.8"
Weight (Approximate): 15.87 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- WEEE
- RoHS
Package Contents:
- Ikon - The Versatile, Rugged PDA
- Battery
- Ikon - The Versatile, Rugged PDA
- Battery
Certifications & Standards:
- IP65
- 5-400Hz PSD
- CSA
- CE
- FCC
- ETSI

Memory

Flash Memory: 256 MB
Standard Memory: 128 MB
Memory Card Slot: Yes
Memory Card Supported:
- Secure Digital High Capacity (SDHC)
- microSD Card

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11b/g
GPS: Yes
Cellular Data Connectivity Technology: HSDPA

Battery Information

Battery Capacity: 5000 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

Processor Manufacturer: Marvell
Processor Speed: 624 MHz
Processor Type: XScale PXA270

Display & Graphics

Screen Mode: VGA
Screen Size: 3.7"

Warranty

Limited Warranty: 1 Year

Software

Operating System: Windows Mobile 6.0 Professional

Keyboard/Keypad

Keyboard Layout: QWERTY

Extended Details

Recommended Accessories for Model: Psion Teklogix Ikon 7505 Mobile Computer

Psion Teklogix Ikon 7505 Accessory
Part #: CH6021 | SKU: 90727

Ikon Handstrap Kit - Tether comes attached to retractable stylus - no assembly required.

$41.11

See Price in Cart (Why?)
Psion Teklogix Ikon 7505 Stylus
Part #: CH6020 | SKU: 100208

Ikon Accessories, Tethered Kit - consists of stylus and tether. Tether comes attached to a retractable stylus - no assembly required.

$38.76

See Price in Cart (Why?)
Psion Teklogix Ikon 7505 Accessory
Part #: CH6095 | SKU: 90729

Leather Functional Case - a fully functional leather carry case that offers access to all features including camera, full keypad, side buttons etc. It also includes a belt clip.
Psion Teklogix Ikon 7505 Spare Parts
Part #: CH6091 | SKU: 90728

Carry Case Pouch is made of Koskin material, includes a locking, swivel belt clip and provides easy access to the bottom connector and DC port.
Psion Teklogix Ikon 7505 Battery
Part #: CH3000 | SKU: 100211

The 5000 mAh lithium-ion batteries can be charged using a variety of chargers and docking stations along with an Ikon internal charger. Note: CH3000 battery packs shipped from the factory are charged to approximately 40% and must be fully charged prior to use.
