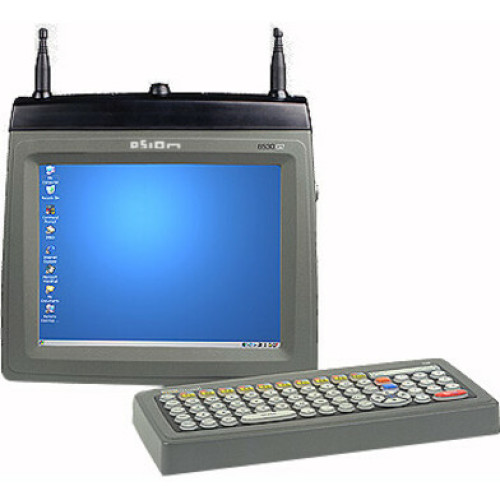

Psion Teklogix 8530 G2 Data Terminal
Part #: 8530111111010000 | SKU: 149158

Extreme working conditions put workers under immense pressure. They deserve equipment thats as rugged as they are and vehicle mount computers that make their jobs easier, not harder. The 8530 G2 is a rugged, vehicle mount powerhouse and can endure the bleakest conditions while always coming back for more. It also delivers intelligence and insight where its needed most: at the mobile workers fingertips. Thats why companies that rely on these industry powerhouses have happier workers and higher productivity. And if you want maximum visual display, thats when the 8530 G2 really comes in to its own. Its huge display screen outshines the competition, displaying more information, more clearly.

Psion Teklogix 8530 G2 Data Terminal

Part Details: 8530 G2, Windows CE 5.0, 802.11b/G, 10.4 TFT Touchscreen, QWERTY Keyboard

Need a different version of the Psion Teklogix 8530 G2 Data Terminal? View all 4 configurations

Additional Information

Display Size	No
Form Factor	No
Keyboard	No
Manufacturer	No
Model Name	8530 G2
Network Connectivity	Wi-Fi 3: 802.11g
Operating System	No
Product Condition	No
RAM Memory	128MB

8530 G2 Specs (pdf)

General Information

Product Type: Vehicle Mount Terminal
Brand Name: PSION
Manufacturer: Psion Teklogix, Inc
Product Model: 8530 G2
Product Name: 8530 G2 - The Rugged, Vehicle Mount Computer

Technical Information

Connectivity Technology: Wireless

Physical Characteristics

Height: 10.6"
Width: 11.4"
Depth: 3.9"
Weight (Approximate): 9.48 lb

Interfaces/Ports

Interfaces/Ports:
- 1 x RS-232 Serial
- 3 x USB

Network & Communication

Wireless LAN Standard: IEEE 802.11b/g
Wireless Security:
- WPA 1
- 801.11i
- WPA 2
- Dynamic WEP
- AES
- LEAP
- PEAP MS-CHAP v2
- PEAP GTC
- EAP-FAST
- TLS
- TTLS.
- WPA 1
- 801.11i
- WPA 2
- Dynamic WEP
- AES
- LEAP
- PEAP MS-CHAP v2
- PEAP GTC
- EAP-FAST
- TLS
- TTLS.
Wireless Technology: Wi-Fi

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Certifications & Standards:
- CCX v4
- IEC 529
- IP66
- IEC 60721-3-5M2
- IEC 60950-1 2001
- FCC Part 15 Class B

Display & Graphics

Touchscreen: Yes
Display Screen Type: LCD
Screen Size: 10.4"
Graphics Modes: SVGA
Display Resolution: 800 x 600

Processor & Chipset

Processor Manufacturer: Marvell
Processor Speed: 520 MHz
Processor Type: XScale

Memory

Flash Memory: 64 MB
Standard Memory: 128 MB

Warranty

Limited Warranty: 1 Year

Keyboard/Keypad

Keyboard Type: QWERTY

Software

Operating System: Windows CE 5.0

Extended Details
