Printronix T5204 Barcode Label Printer Printronix T5204 Barcode Label Printer Printronix T5204 Barcode Label Printer Printronix T5204 Barcode Label Printer

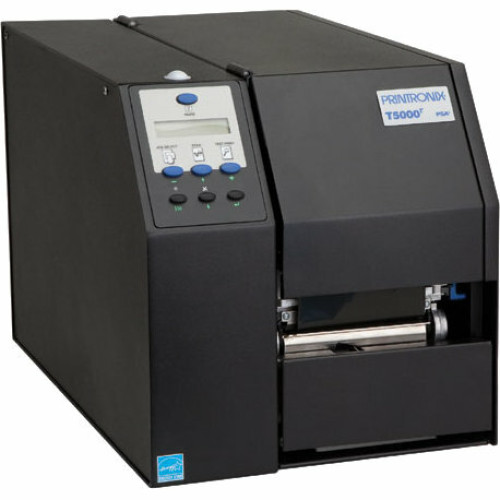

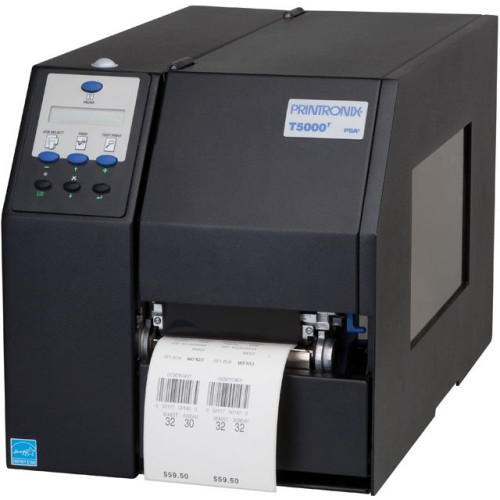

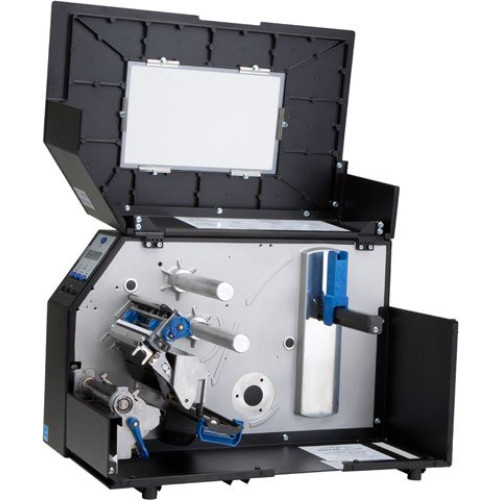

Printronix T5204 Barcode Label Printer
Part #: D52X4-0109-000 | SKU: PRI209695

T5000r thermal bar code printers, based on the world-class 5r Multi-Technology Platform, are web-enabled, industrial-grade thermal bar code label printers designed to operate in demanding manufacturing or distribution environments. Printronix bar code printers enable the rollout of bar code label printing throughout the supply chain with an open migration path to RFID.

Printronix T5204 Barcode Label Printer

Part Details: Printronix ThermaLine T5204 Direct Thermal Printer - Monochrome - Desktop - RFID Label Print - Ethernet - USB - Serial - RFID - 4.10" Print Width - 10 in/s Mono - 203 dpi - Roll Fed, Fanfold, Tag, Ticket, Film, Synthetic Media, Thermal Transfer Label, Direct Thermal Label, Gap, Black Mark, Notch - 4.50" Label Width
Need a different version of the Printronix T5204 Barcode Label Printer? View all 25 configurations

Additional Information

Manufacturer Printronix
Model Name T5204
Print Method No
Print Resolution No
Product Condition No
Printronix T5204 Specs Printronix T5204 Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: RFID Label Print
  • Barcode Symbology Supported:
    • AUSTPORT
    • Aztec Code
    • BC35
    • BC412
    • Codabar
    • Code 11
    • Code 35
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • EAN-8
    • EAN-13
    • FIM
    • German I-2/5
    • GS1 DataBar
    • GS1-128
    • GS1 DataMatrix
    • IMB
    • Interleaved 2 of 5
    • ITF-14
    • Matrix
    • Maxi Code
    • MSI
    • PDF-417
    • Planet Code
    • Plessey
    • POSTNET
    • PostBar
    • ROYALBAR
    • Telepen
    • UPC-A
    • UPC-E
    • UPC-E0
    • UPCSHIP
    • UPS11

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: T5000r
  • Brand Name: Printronix
  • Manufacturer: Printronix, Inc
  • Product Model: T5204
  • Product Name: ThermaLine T5204 RFID Label Printer
  • Product Line: ThermaLine

Physical Characteristics

  • Height: 13"
  • Width: 11.7"
  • Depth: 20.5"
  • Form Factor: Desktop
  • Weight (Approximate): 37 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Tag
    • Ticket
    • Film
    • Synthetic Media
    • Thermal Transfer Label
    • Direct Thermal Label
    • Gap
    • Black Mark
    • Notch
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: ENERGY STAR
  • Platform Supported: PC
  • Certifications & Standards:
    • Unicode
    • PFC
    • IEC60950-2
    • EN55022 Class B
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
    • FCC Part 15 Class B

Fonts & Emulation

  • Language Emulation:
    • XML
    • PGL
    • ZGL
    • TGL
    • IGL
    • STGL
    • DGL
    • IEGL
    • MGL
    • PXML

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 64 MB
  • Memory Technology: SDRAM
  • Flash Memory: 16 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year
Extended Details
